ZT-M0/ZT-M1 True-RMS Digital Multimeter

ZT-M0/ZT-M1 True-RMS Digital Multimeter
ZT-M0/ZT-M1 True-RMS Digital Multimeter
ZT-M0/ZT-M1 True-RMS Digital Multimeter
ZT-M0/ZT-M1 True-RMS Digital Multimeter
ZT-M0/ZT-M1 True-RMS Digital Multimeter
ZT-M0/ZT-M1 True-RMS Digital Multimeter
ZT-M0/ZT-M1 True-RMS Digital Multimeter
ZT-M0/ZT-M1 True-RMS Digital Multimeter
ZT-M0/ZT-M1 True-RMS Digital Multimeter
ZT-M0/ZT-M1 True-RMS Digital Multimeter
ZT-M0/ZT-M1 True-RMS Digital Multimeter
ZT-M0/ZT-M1 True-RMS Digital Multimeter
ZT-M0/ZT-M1 True-RMS Digital Multimeter
$35.000
  • Availability: In Stock
  • Product Code:: UL-0903-2259
  • Weight: 0.40kg
  • SKU: UL-0903-2259

Available Options

ZOYI True-RMS Digital Multimeter tester AC DC Voltage Current Ohm Temperature Multimeter battery measurer+VFC functions ZT-M0/M1

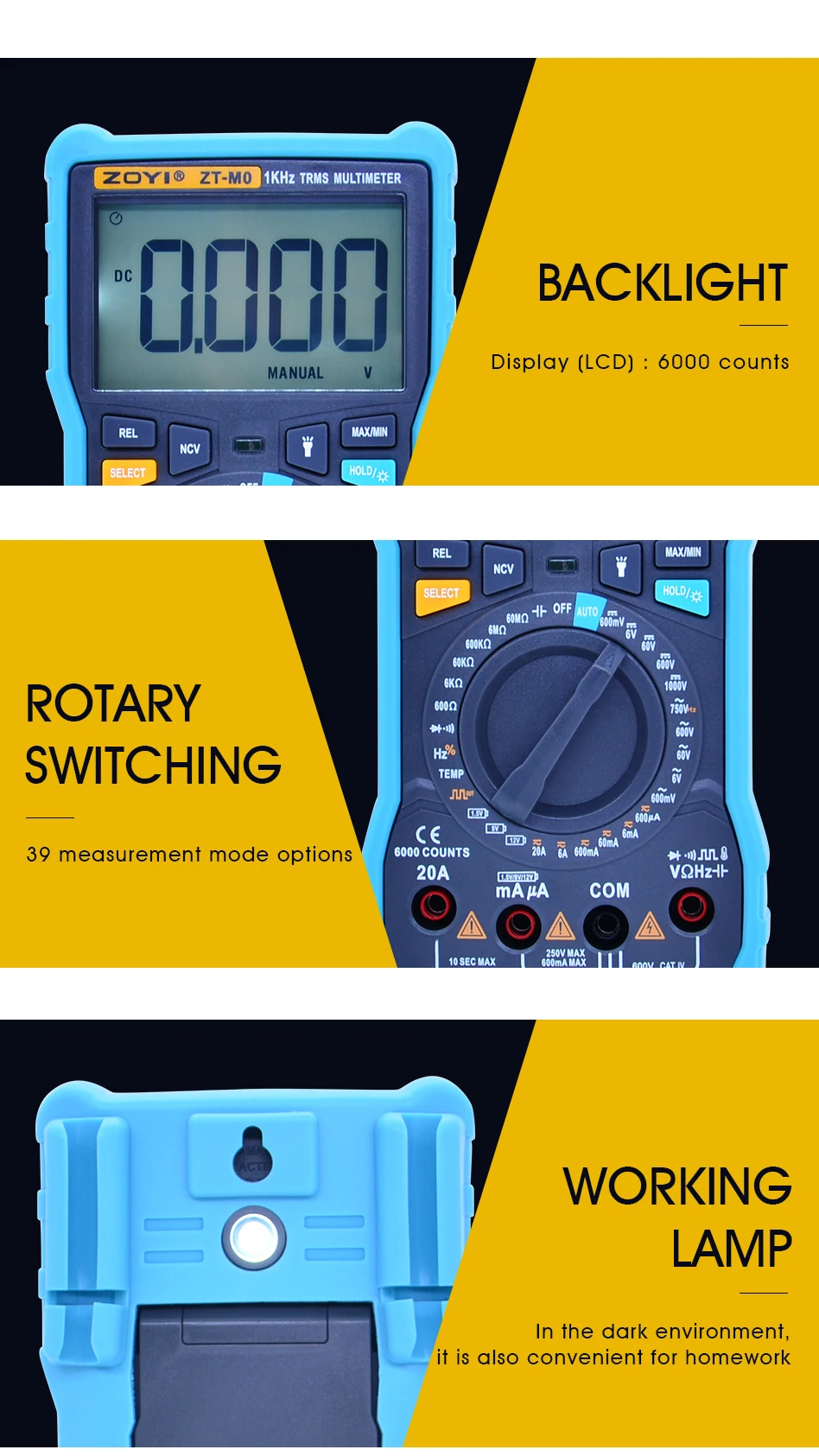

Features:

Display (LCD):6000 counts
Ranging:Auto/Manual
Material:ABS/PVC
Update Rate:3 times/second
Ture RMS:√
Data Hold:√
Backlight:√
Low Battery Indication:√
Auto Power Off:√
Operating temperature:0-40°
Operating humidity:less then 75%
Storage temperature:-20~60°
Operating humidity:less then 80%
Battery type :1.5V AA battery*3 (Not Included)
Measurement mode: Measurement Method: Manual Mode + Intelligent Recognition

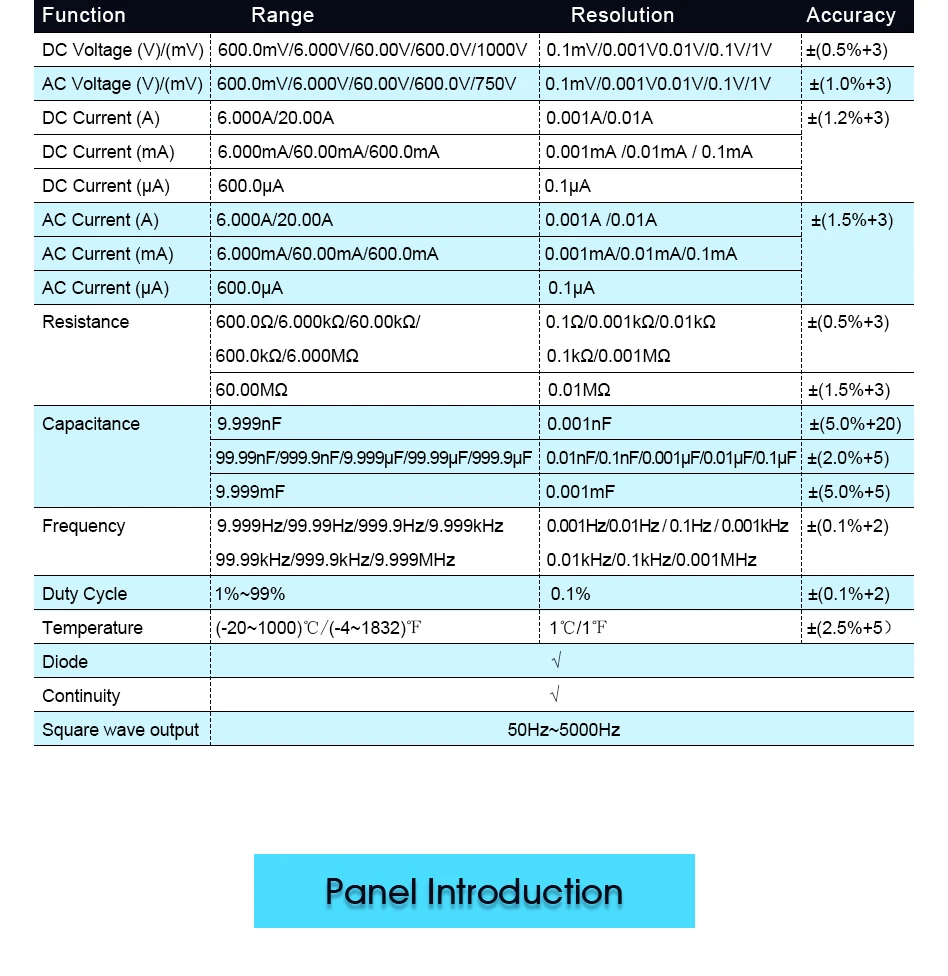

Specifications:
DC Voltage: 600.0mV/6.000V/60.00V/600.0V/1000V   ±(0.5%+3);
AC Voltage: 600.0mV/6.000V/60.00V/600.0V/750V ±(1.0%+3);
DC Current: 600.0μA/6.000mA/60.00mA/600.0mA/6.000A/20.00A ±(1.2%+3);
DC Current: 600.0μA/6.000mA/60.00mA/600.0mA/6.000A/20.00A ±(1.5%+3);
Resistance: 600.0Ω/6.000kΩ/60.00kΩ/600.0kΩ/6.000MΩ ±(0.5%+3); 60.00MΩ ±(1.5%+3);
Capacitance:9.999nF ±(5.0%+20);99.99nF/999.9nF/9.999μF/99.99μF/999.9μF ±(2.0%+5); 9.999mF ±(5.0%+5);
Frequency: 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz ±(2.0%+5);
Duty Cycle:  1%~99% ±(0.1%+2);
Temperature: (-20~1000)°C/(-4~1832)°F  ±(2.5%+5);
Diode: √
Continuity: √
Square wave output:50Hz~5000Hz

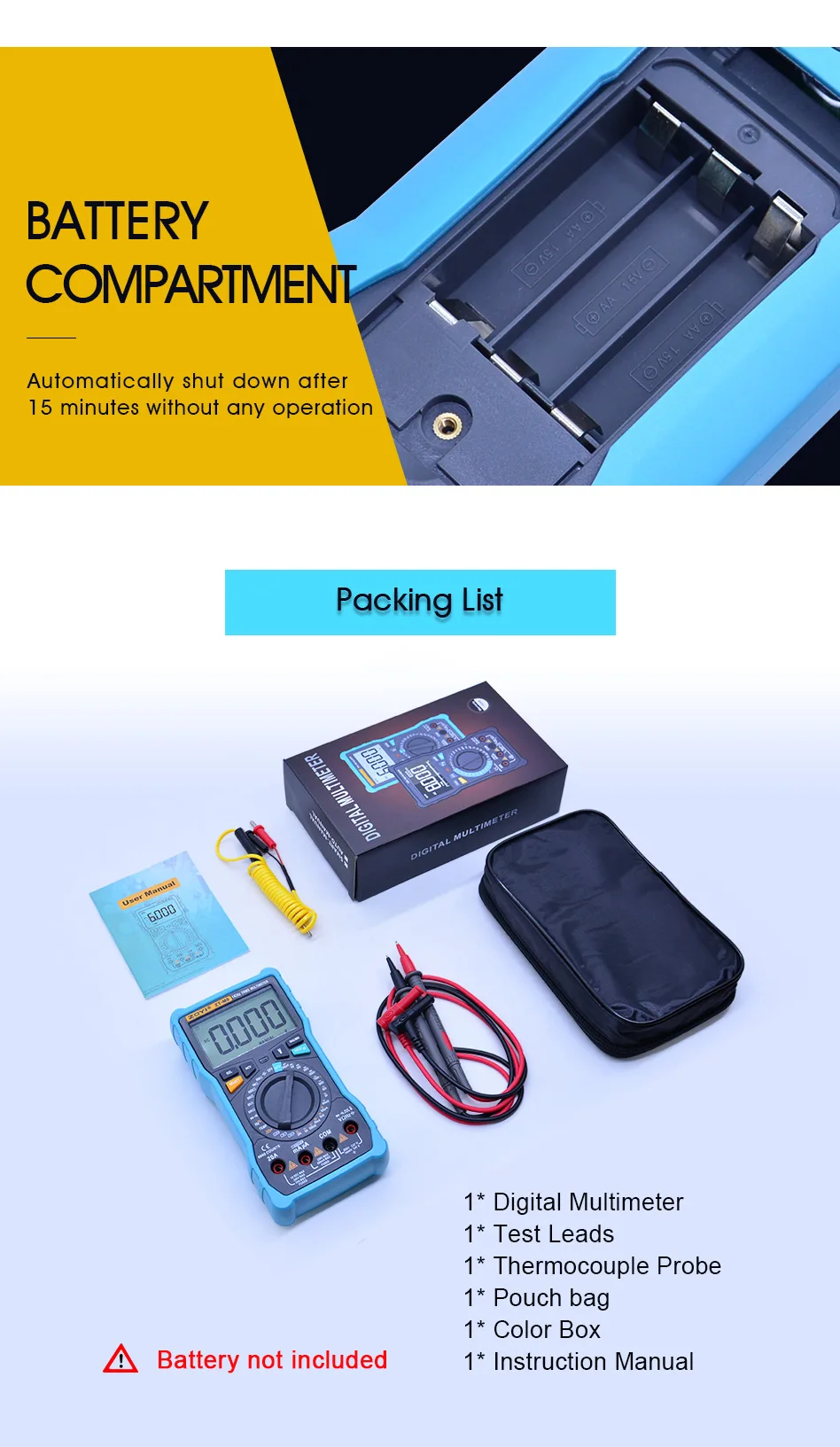

Packing List:
1*Digital Multimeter
1*Test leads
1*Thermocouple probe
1*English user Manual
1*Pouch bag
1*Color box

Battery test 1.5V  9V  12V
load Current  10mA   10mA   120mA
Dump Energy Green    1.30V 7.83V  10.44V
Yellow 0.94V-1.29V  5.64V-7.82V  7.52V-10.43V
Red 5.64V-7.82V 0.90V-5.63V 1.2V-7.51V
No light 0.14V 0.89V  1.19V



ZT-M1 Description as below:

Product Introduction:
This product is a battery-powered, true-rms, autoranging digital multimeter with a 8000 counts LCD display and a backlight.

Features:
Display (LCD):8000 counts+Measurement of V.F.C Converter
Ranging Auto/Manual
Material:ABS/PVC
Update Rate:3 times/second
Ture RMS:√
Data Hold:√
Backlight :√
Low Battery Indication  :√
Auto Power Off :√
Temperature measurement: - 20 ~1000.
Resistance Range: 0.1-80M
Capacitance Range: 0.001nF-100mF
Measurement mode: manual mode + automatic mode

Specifications:
DC Voltage: 800.0mV/8.000V/80.00V/800.0V/1000V  ±(0.5%+3);
AC Voltage: 800.0mV/8.000V/80.00V/800.0V/750V  ±(1.0%+3);
DC Current: 800.0μA/8000μA/8.000mA/80.00mA/800.0mA/8.000A/20.00A  ±(1.2%+3);
AC Current: 800.0μA/8000μA/8.000mA/80.00mA/800.0mA/8.000A/20.00A  ±(1.5%+3);
Resistance: 800.0Ω/8.000kΩ/80.00kΩ/800.0kΩ/8.000MΩ ±(0.5%+3); 80.00MΩ ±(1.5%+3) ;
Capacitance: 9.999nF ±(5.0%+20); 99.99nF/999.9nF/9.999μF/99.99μF/999.9μF ±(2.0%+5); 9.999mF ±(5.0%+5);
Frequency: 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz ±(0.1%+2);
Duty Cycle:  1%~99% ±(0.1%+2);
Temperature: (-20~1000)°C/(-4~1832)°F  ±(2.5%+5);
Diode: √
Continuity: √
Square wave output:50Hz~5000Hz
Battery test: 1.5V/9V/12V
load Current:10mA

Packing List:
1*Digital Multimeter
1*Test leads
1*Thermocouple probe
1*English user Manual
1*Pouch bag
1*Color box


ZOYI-True-RMS-Digital-Multimeter-tester-AC-DC-Voltage-Current-Ohm-Temperature-Multimeter-battery-mea-32970265811

ZOYI-True-RMS-Digital-Multimeter-tester-AC-DC-Voltage-Current-Ohm-Temperature-Multimeter-battery-mea-32970265811

ZOYI-True-RMS-Digital-Multimeter-tester-AC-DC-Voltage-Current-Ohm-Temperature-Multimeter-battery-mea-32970265811

ZOYI-True-RMS-Digital-Multimeter-tester-AC-DC-Voltage-Current-Ohm-Temperature-Multimeter-battery-mea-32970265811

ZOYI-True-RMS-Digital-Multimeter-tester-AC-DC-Voltage-Current-Ohm-Temperature-Multimeter-battery-mea-32970265811

ZOYI-True-RMS-Digital-Multimeter-tester-AC-DC-Voltage-Current-Ohm-Temperature-Multimeter-battery-mea-32970265811

ZOYI-True-RMS-Digital-Multimeter-tester-AC-DC-Voltage-Current-Ohm-Temperature-Multimeter-battery-mea-32970265811

ZOYI-True-RMS-Digital-Multimeter-tester-AC-DC-Voltage-Current-Ohm-Temperature-Multimeter-battery-mea-32970265811

ZOYI-True-RMS-Digital-Multimeter-tester-AC-DC-Voltage-Current-Ohm-Temperature-Multimeter-battery-mea-32970265811

ZOYI-True-RMS-Digital-Multimeter-tester-AC-DC-Voltage-Current-Ohm-Temperature-Multimeter-battery-mea-32970265811

ZOYI-True-RMS-Digital-Multimeter-tester-AC-DC-Voltage-Current-Ohm-Temperature-Multimeter-battery-mea-32970265811

ZOYI-True-RMS-Digital-Multimeter-tester-AC-DC-Voltage-Current-Ohm-Temperature-Multimeter-battery-mea-32970265811

ZOYI-True-RMS-Digital-Multimeter-tester-AC-DC-Voltage-Current-Ohm-Temperature-Multimeter-battery-mea-32970265811

ZOYI-True-RMS-Digital-Multimeter-tester-AC-DC-Voltage-Current-Ohm-Temperature-Multimeter-battery-mea-32970265811

ZOYI-True-RMS-Digital-Multimeter-tester-AC-DC-Voltage-Current-Ohm-Temperature-Multimeter-battery-mea-32970265811

Packaging Details
  • Unit Type: piece
  • Package Weight: 0.4kg (0.88lb.)
  • Package Size: 15cm x 12cm x 9cm (5.91in x 4.72in x 3.54in)
Specifications
Backlight yes
Item specifics
AC Current 600.0μA/6.000mA/60.00mA/600.0mA/6.000A/20.00A
AC Voltage 600.0mV/6.000V/60.00V/600.0V/750V
AC/DC Voltage 0.01mV-750V
Brand Name OUTEST
Continuous measurement yes
Data hold yes
DC Current 600.0μA/6.000mA/60.00mA/600.0mA/6.000A/20.00A
DC Voltage 600.0mV/6.000V/60.00V/600.0V/1000V
Display Type Digital Display
DIY Supplies Electrical
Flishlight yes
LCD display 6000 counts/8000 counts
Measuring Capacitance Range 9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF
Measuring Inductance Range See Description
Measuring Resistance Range 600.0Ω/6.000kΩ/60.00kΩ/600.0kΩ/6.000MΩ/60.00MΩ
Model Number ZT-M0/ZT-M1
NCV measurement yes
Operating Mode Digital Display
Operating Temperature 0 - 40 ℃
Ture RMS yes
Dimensions 130*65*32mm
Item Digital multimeter
