DC-L DC power filter DC signal filter module Hypothy noise inhibitory low-pass filter

Selling point

1: Small volume

2: Stable performance

3: One -piece power inductance, low DCR, large current

4: Filter effect is good

5: wide application

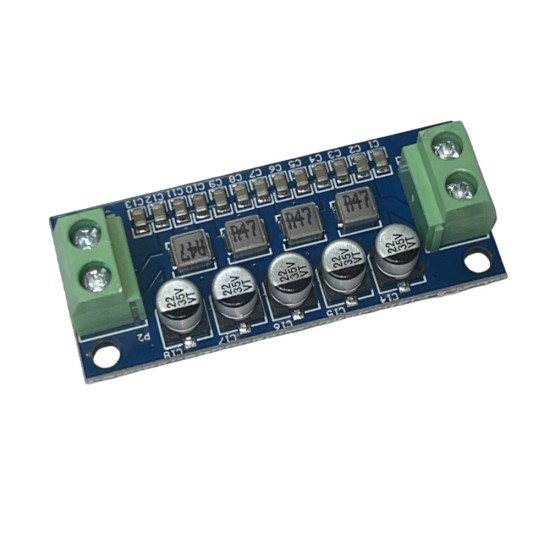

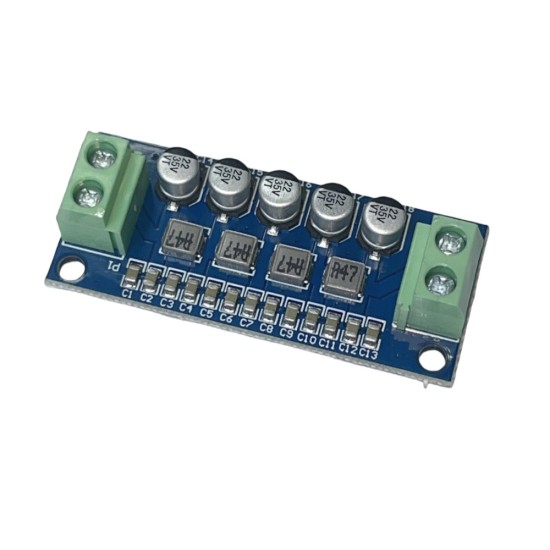

The DC power filter module is a low -pass filter module designed by the combination of inductors and capacitors. The input and output current can reach up to 5A, and the maximum resistance voltage is 35V.Suitable for power supply with large ripples, which can effectively reduce power ripples.

1. Input voltage 0 ~ 35V

2. Input current 0 ~ 5A

3. Integrated power inductance, low DCR large current

4. High -quality patch aluminum electrolytic capacitance, low ESR, good filter effect

Instructions for use: 1. Pay attention to the wiring input and output direction.The electrolytic capacitance is on the top, the left side is the power input end, and the right side is the output end.Put the module at the output of the power supply to reduce the purpose of reducing ripples.

Product Attributes
Brand	Other/Other
Output Voltage	0.1
