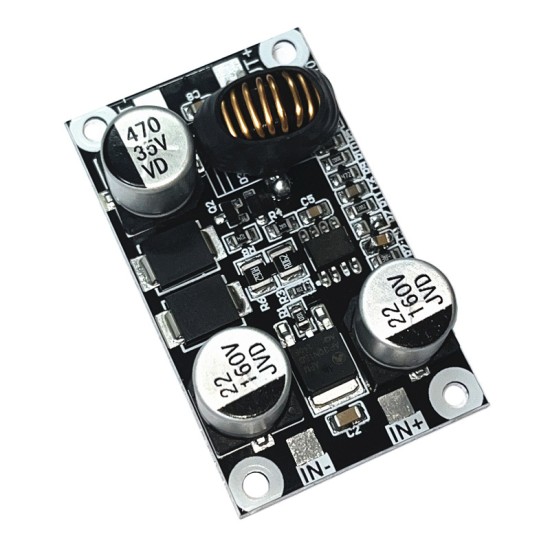

DC-DC high-power antihypertensive power module DC converter input 10-110V fixed to 5-24V

Product selling point:
1. The product is selected from industrial -grade chips, with built -in multiple intelligent protection functions
2. The life span and use temperature are related to the temperature. The lower the temperature, the longer the life span; the module uses an aluminum bottom plate, the heat dissipation performance is far better than the ordinary composite board, and the corresponding life span is greatly improved
3. Product performance stability and cost -effective, use at the same power, have higher efficiency and lower fever
4. The product is lightweight, high -sensitivity, and long service life
5. Products can be widely used in industrial power supply, control systems, solar power supply equipment, electric vehicle converters, lighting circuits and other safety applications

Product parameters:
Input voltage: 110V (antihypertensive)
Output voltage: 5V/9V/12V/24V
Output current: ≤5A
Output maximum power: ≤60W (current ≤5A)
Conversion efficiency: ≤95%, the smaller the pressure difference, the higher the efficiency
Input and output pressure difference: ≥25V (need to pay attention)
Work temperature: -40 ℃ ~+85 ℃
Air-load current: 5-10mA
Overcurrent protection: yes
Over -pressure protection: yes
Short circuit protection: yes
Impoloscope protection: yes
How to cool down: aluminum plate naturally heat dissipation
Dimensions: 50*30*17mm

Notice:
The power supply rated power is closely related to the fever. The greater the power can be achieved, indicating that the better the design heat dissipation and the efficiency of the component, that is, if you use the current of 2AIt can be used, but the power supply temperature of 3A is higher than 5A, and the life span will be greatly shortened.Considering the service life, it is recommended to choose a large current.
