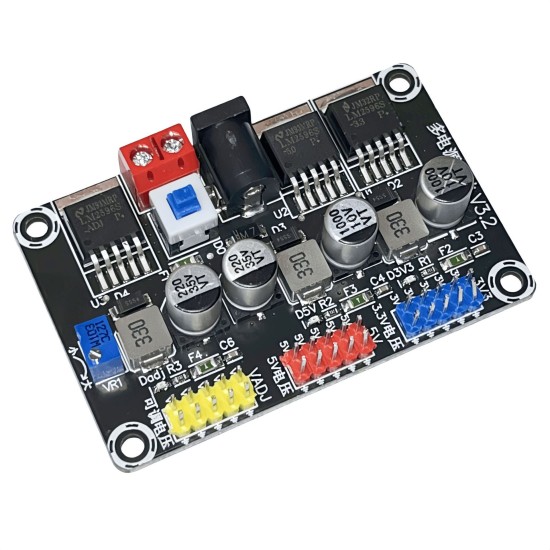

DC7-25 rotation DC3.3V/5V LM2596 adjustable antihypertensive module regulating power supply module smart car experiment

Features:

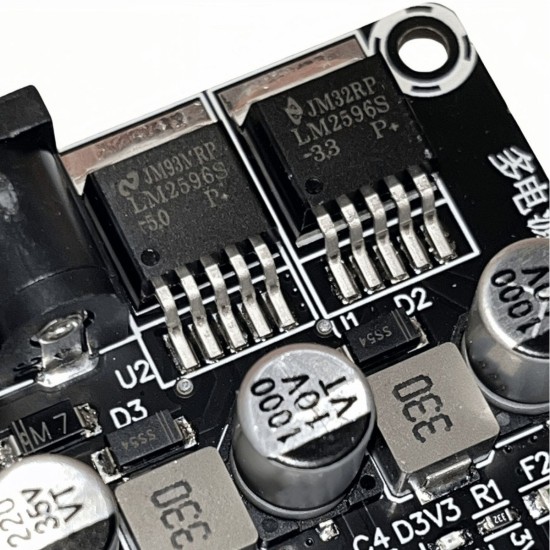

1. Good performance, use the new LM2596 regulatory chip (LM2596-3.3V, LM2596-5V, LM2596-ADJ).
2. High -quality materials, new aluminum capacitors, new power inductance.
3. High safety performance, four self -recovery fuses to ensure safety.
4. With the power supply indicator, there are three power indicator lights. The indicator light extinguishes instructions The load has a short circuit and immediately unplugged the power.
5. The scope of applications is wide, suitable for various power supply such as smart car competitions, e -competitions, robotics competitions, and laboratory experiments.

Product parameters:
Product color: black
Main chips: LM2596-3.3V, LM2596-5V, LM2596-Adj

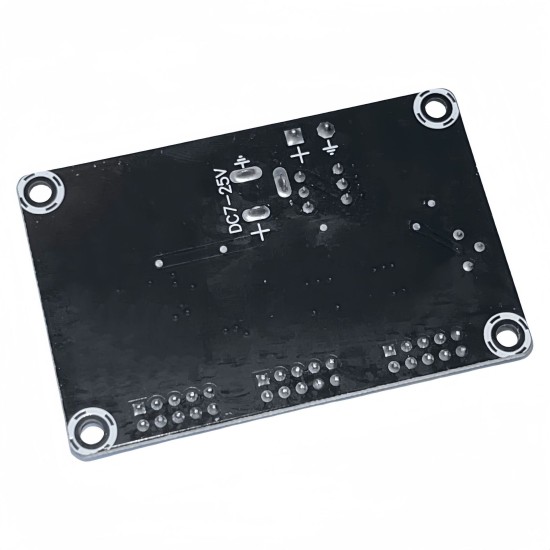

输入：DC7V~25V,>1A
Output voltage: DC3.3V, DC5V, DC1.25V-VIN
DC power input interface type is: DC 5.5mm*2.1mm
Product size: (long*width*height) 68*44*12mm
Elementary needle material: gold -plated needle, antioxidant
Use objects: Power modules designed by power supply in smart car competitions, e -competitions, graduation design, laboratory experiments.

Output voltage description:
DC3.3V: Self-recovery fuse 2A, with power supply indicators, can be used for S08 series, S12 series, Kinetis-M4 K60/10 series, DSC series, cold fire series, etc.
DC5V: Self -recovery fuse 2A, with power supply indicators, power supply for the S12 series, MPC series microcontroller and core board;
DC1.25V-VIN: Self-recovery fuse 2A, with a power supply indicator, a adjustable output voltage, which can be powered by the steering gear;
Remarks: Users can replace more suitable self -recovery fuses and electrolytic capacitors according to the chip parameters to better meet the needs.
