Super LM2596S DC-DC DC can adjust the voltage voltage supply module.

Ultra -low 20UA static current

Efficient simultaneous reduction, current can reach 3A, low ripple input voltage range: 4.2V-60V, but the current needs to be higher than the output of 1V or more

Output voltage range: 1V to vin (1V voltage difference when current is large)

All use high -frequency and low internal resistance long life capacitors

Configuration soft start and output voltage tracking capacity

The automatic switching side linear power supply, improve the high -voltage light load efficiency to support the launch of large load capacitors, wide applicability, can rush to supercapaciture

Multiple protection function: UVL0/0CP/SCP/0TP/0VP

The knot temperature range is -40 ° C to+125 ° C.

Wide voltage input, good output stable consistency, dynamic response fast

Support variable frequency, reserve working frequency configuration, default 400kHz, short after short connection.

application

Power control system power supply

Low -line wave low noise power supply

Car electronic power supply

Wide voltage input range power supply

The size is as shown in the left

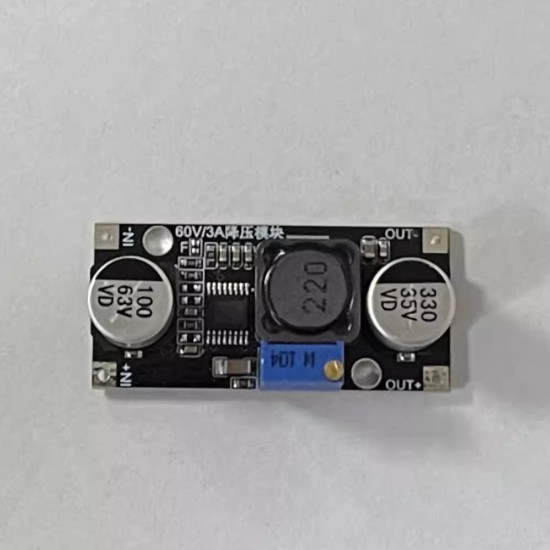

The long section of the fixed voltage version and the potentiometer can be adjusted. The output voltage range of the potential board is 2-34V, and the voltage of the voltage is increased clockwise.

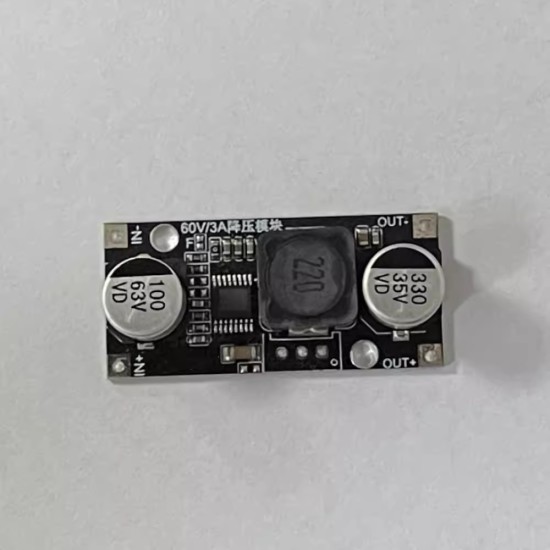

The fixed voltage version and the potentiometer can be adjusted. The fixed voltage version requires a short connection to the short contact setting voltage. As shown in the left figure, the corresponding voltage of the green logo 1234 after the short connection is 3.3/5/12/24V.The adjustable version of the potentiometer is 3-32V

The fixed voltage version and the potentiometer can be adjusted. The fixed voltage version requires a short connection to the short contact setting voltage. As shown in the left figure, the corresponding voltage of the green logo 1234 after the short connection is 3.3/5/12/24V.The adjustable version of the potentiometer is 3-32V

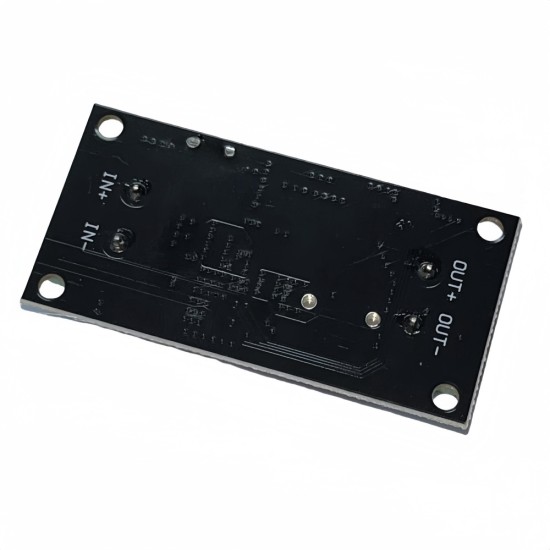

Point name direction description

IN+ input power supply power supply input positive pole: 0UT+
IN-/GND input input ground/negative electrode, and the output ground is directly connected

OUT+ output output power positive pole

OUT-/GND output output place/negative electrode, and direct input ground
