18650 battery module 3.7V7.4V lithium battery module 11.1V lithium battery module charging treasure UPS power supply

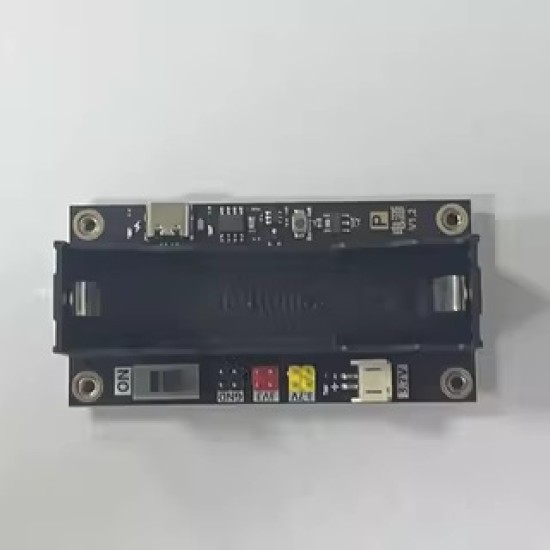

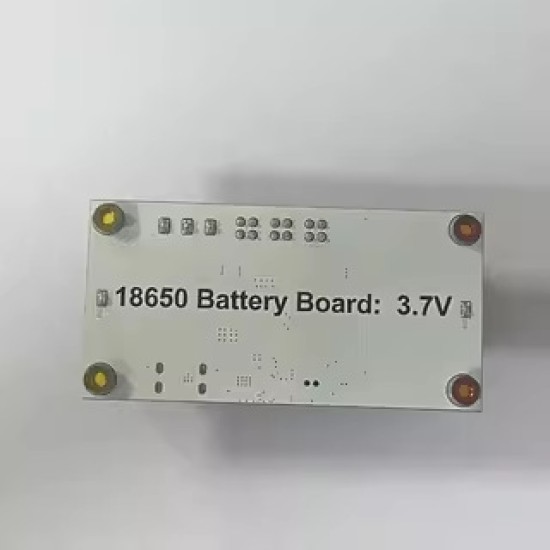

3.7v18650-1S:

Single -section lithium battery charging and discharge, TP4056 charging chip, built -in antihypertensive 3.3V800MA antihypertensive chip, with a battery protection chip, the battery voltage without lift circuit can output battery voltage, 3.3V voltage voltage voltage two specifications.

PH interface output voltage: 3.7V

Plot interface output voltage: 3.3V, 3.7V

3.3V power supply (maximum limit): 800mA

Battery protection maximum discharge current (maximum limit): 2A

3.7v18650-2s:

The charging treasure large current fast charging and discharge solution 2 section 18650 adopts parallel connection. The built -in voltage voltage circuit can be continuously output 5V2.4A, with two USB interfaces. Support battery power display. In addition, the battery voltage 3.7V (maximum 5A output) 3.3V-800mA two voltage specifications.

PH interface output voltage: 3.7V, 5.0V

Point interface output voltage: 3.3V, 3.7V, 5.0V

3.3V power supply (maximum limit): 800mA

5.0V power supply (maximum limit): 2.4A

Battery protection maximum discharge current (maximum limit): 5A

3.7v18650-3s:

The charging treasure large current fast charging and discharge solution 3 sections 18650 adopt parallel connection, built -in voltage voltage circuit, maximum continuous output of 5V2.4A, with two USB interfaces. Support battery power display can provide battery voltage 3.7V (maximum 5A output), 33V-800mA voltage specifications.

PH interface output voltage: 3.3V, 3.7V, 5.0V

Point interface output voltage: 3.3V, 3.7V, 5.0V

3.3V power supply (maximum limit): 800mA

5.0V power supply (maximum limit): 2.4A

Battery protection maximum discharge current (maximum limit): 5A

7.4V-14500:

Single lithium battery charging TP4054 charging chip, built-in 5.0V-500mMA.3.3V-300MA antihypertensive chip. Bring a battery protection chip. The output battery voltage, 5V, 3.3V voltage voltage voltage. This module only supports the left batteryCard charging.

PH interface output voltage: 3.7V, 7.4V

Output voltage: 3.3V, 3.7V, 5.0V, 7.4V

3.3V power supply (maximum limit): 300mA

5.0V power supply (maximum limit): 600mA

The maximum discharge current of battery protection (maximum limit): 0.5A

7.4V-18650 (single charging):

Single-section lithium battery charging TP4056 charging chip, built-in 5.0V-2A, 谫鬲 promotion-Zhan Mi 侔 Bi-歆 ​​Police V-800MA lower-voltage chip, with battery protection chip, can output battery voltage, 5V, 33V voltage voltage voltage voltage voltage voltage voltage voltage voltage voltage voltage voltage voltage voltage voltage voltage voltage voltage voltage voltage voltageThree specifications, this module only supports the left battery warehouse charging

PH interface output voltage: 3.7V, 7.4V

Point interface output voltage: 3.3V, 3.7V, 5.0V, 7.4V

3.3V power supply (maximum limit): 800mA

5.0V power supply capacity (maximum limit): 2A

Battery protection maximum discharge current (maximum limit): 2A

7.4V-18650 (fast charge):

Double-festival lithium battery charging, 8.4V-2S lithium battery fast charge scheme, the charging current can reach 12A. Built-in 50V-2A3.33V, MA lower-pressure chip. The battery protection chip can output battery voltage 7AV, 5V, 3.3V stabilization voltage voltage voltage voltage voltage voltage voltageThree specifications, this module supports 2 batteries to charge at the same time.

PH interface output voltage: 5.0V, 7.4V

Point interface output voltage: 3.3V, 3.7V, 5.0V, 7.4V

3.3V power supply (maximum limit): 800mA

5.0V power supply capacity (maximum limit): 2A

Battery protection maximum discharge current (maximum limit): 5A

11.1V-18650 (fast charge):

Three-section of lithium battery charging 11.1V-3S lithium battery fast charge scheme, the charging current can reach 12A built-in adjustable voltage ADF2A, 5.0V-2A, 33V-800mA antihypertensive chip with battery protection chip.7.4V, 5V, and 3.3V voltage voltage voltage voltage voltage voltage. This module supports 3 batteries and charging at the same time

PH interface output voltage: 3.3V, 5.0V, 7.4V, ADJ, 11.1V

Plot interface output voltage: 3.3V, 3.7V, 5.0V, 11.1V, 7.4V, ADJ

3.3V power supply (maximum limit): 800mA

5.0V power supply capacity (maximum limit): 2A

Battery protection maximum discharge current (maximum limit): 5A

ADJ adjustable voltage power supply capacity (maximum limit): 3A
