12V3A24W36 large power uninterrupted power board 3 string of lithium batteries, charging and charging 18650 groups

DC UPS Uninterrupted Power Control Motherboard is used for continuous power supply for network devices such as routers, cameras, switches or infrared alarms. The output power of the battery can reach 36W.and,.

Product Description:

Input voltage: DC12V

Output voltage: DC12V (between 11V and 13V)

Output power: 36W (MAX)

Battery amidity: 0.5A (MAX)

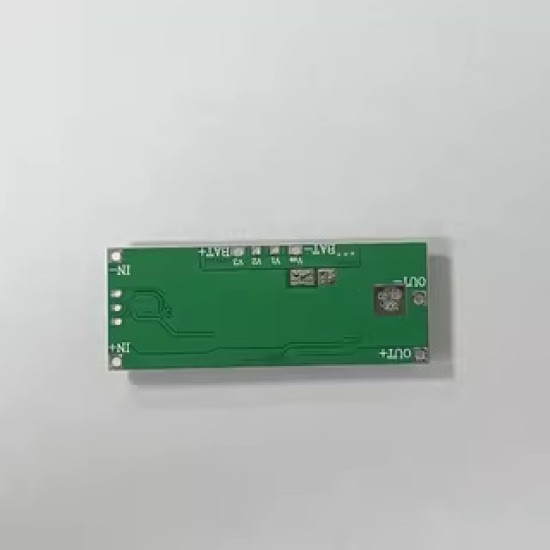

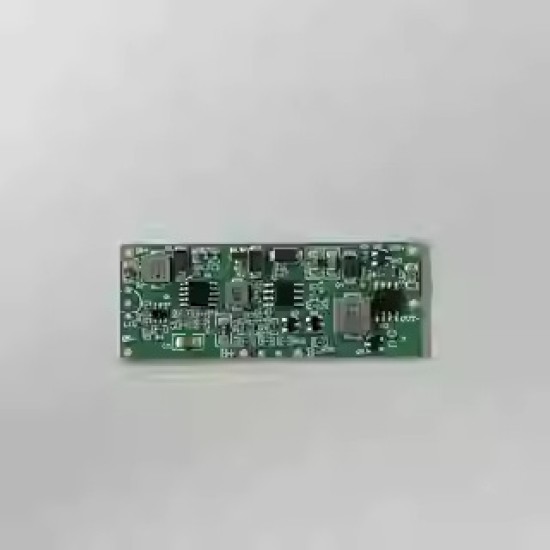

Size of the board: 57.5*22*4mm

Comes with a battery pack charging and discharge protection function

Power battery power supply automatic switching

Notice:

BAT takes the last step to connect the battery. This is important battery 3 string of lithium battery or polymer battery or 18650 battery pack.

The default battery pack: It is connected to 2 lines (positive and negative poles). You can also connect 4 lines. You need to disassemble the three resistors of R16R17R18

Note: Please connect the battery in the last step. The welding input and output should be used at least 20AWG cable. Do not exceed 10cm in the line length.
Note: The control board will be hot when working, so keep a certain distance from the battery when installing!

Indications: Use 3mm of red and green glowing diodes with 3mm anodes;
