UPS uninterrupted power lithium battery side charging 5V2A12V15W router network equipment monitoring camera

It is used for continuous power supply and seamless switching of network devices such as routers, switches or infrared alarms. The upper limit of the battery can be at a short time of 15W in a short time, and the long -term shutdown is automatically shut down when the output is out.

Product Description:

Input voltage: DC5V

Output voltage: DC5V or DC12V (JP1 can switch output voltage)

Output power: 12W (short -term can reach 15W). When the battery is powered and the battery is full, it can work for 12W for a long time;

Battery challenge: 1A (MAX), with a battery protection function. After the first use or protection, you need to use charging activation;
B+ B-Battery 3.7V lithium battery or polymer battery can be connected in a single section or more;

Static current: about 20mA

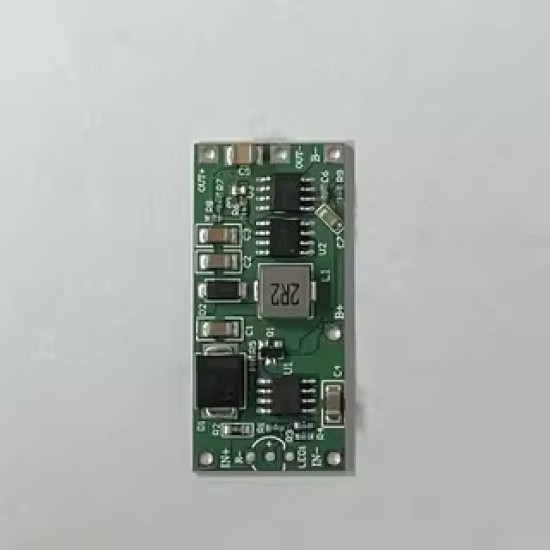

Size of the board: 43*20*4mm

BAT takes the last step to connect the battery. This is very important battery 3.7V lithium battery or polymer battery, battery capacity: 1-3AH (MAX 5AH)

Note: Please connect the battery in the last step. The welding input and output should be used at least 20AWG cable. Do not exceed 10cm in the line length.
Note: The control board will be hot when working, so keep a certain distance from the battery when installing!

Indicators: Configure the red and green glow diode with common anode; the charging red light is on, the full green light is on
