GP2Y1014AUVF PM2.5 sensor module dust/dust/air quality detection sensor module

Show: Customers used by the Assembly to buy. If you do n’t use it, please buy it with caution. The store only provides some component data and some use references. It cannot provide all aspects of technical support. Please forgive me!Intersection

Link: https://pan.baidu.com/s/1i9tcgnix1qndxwluz_z0wg

Extract code: 1234

After copying this section, turn on the Baidu network disk mobile app, it is more convenient to operate

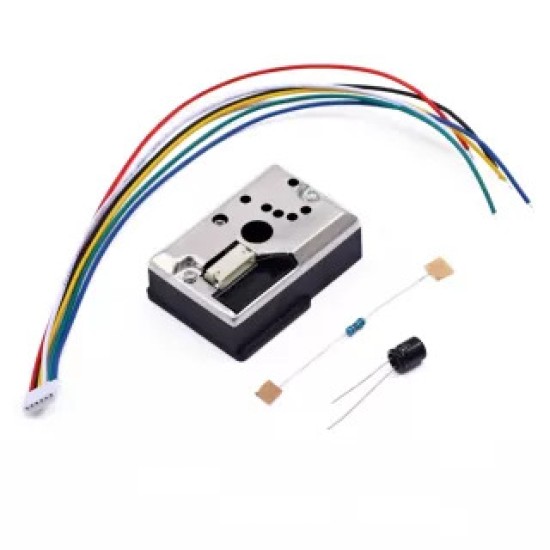

Supporting:

1. GP2Y1010AU0F dust sensor (1)

2,150ohm resistance (1)

3, 220UF capacitance (1)

4, 6pin connection line (1) [Essential element of experiment]

Overview

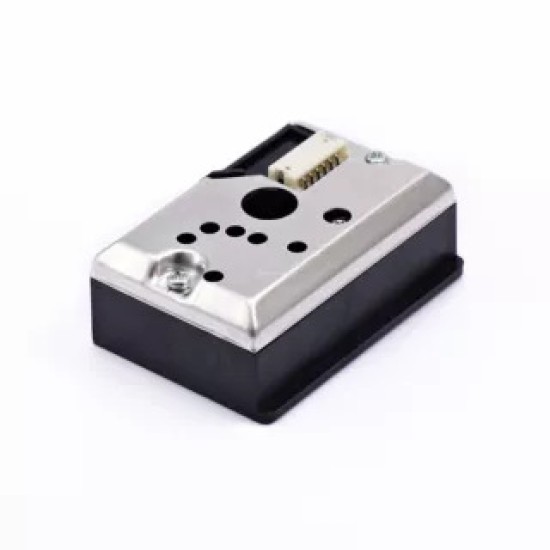

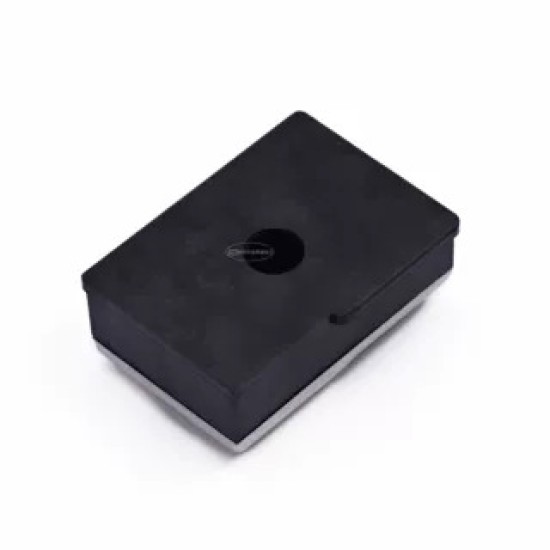

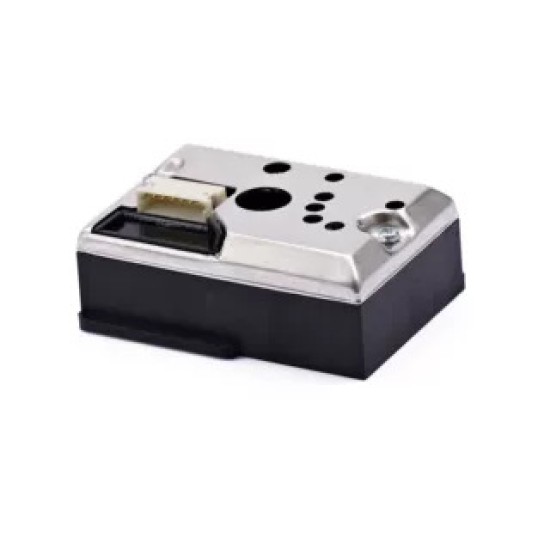

Sharp Optical Dust Sensor (GP2Y1010AU0F) is detecting very fine particles, such as cigarettes, which is particularly effective.

And it is a commonly used air purifier system.

In this device, an infrared light -emitting diode and photoelectric transistor tube are arranged to allow it to detect the dust reflex light in the air.

The sensor has extremely low current consumption (maximum 20mA, 11 mAh typical), and can be equipped with a sensor up to 7VDC.The output is an analog voltage proportional to the measured dust concentration, and the sensitivity is 0.5V/0.1mg/m3.

specification

Power voltage: 5-7V
Work temperature: -10-65 degrees Celsius
Consumption current: 20mA the largest
Minimum particle detection value: 0.8 microns
Sensitivity: 0.5V/(0.1mg/m3)
Clean air medium voltage: 0.9V typical value
Work temperature: -10 ~ 65 ℃
Storage temperature: -20 ~ 80 ℃
Life life: 5 years
Size: 46mm × 30mm × 17.6mm
Weight: 15g

Detection principle

The principle is as shown in the figure below. There is a hole in the center of the sensor that allows the air to flow freely and transmit LED light at a directed. It is determined by detecting the light after the dust refraction in the air.Use test code:
int dustpin = 0;

Float dustval = 0;
int LEDPOWER = 2;
int Delaytime = 280;
int Delaytime2 = 40;
Float Offtime = 9680;
void setup () {
Serial.begin (9600);
pinmode (LEDPOWER, OUTPUT);
pinmode (dustpin, input);
}
void loop () {
// LEDPOWER IS Any Digital Pin on the Arduino Connect to Pin 3 on the Sensor
digitalWrite (LEDPOWER, LOW);
delaymicroseconds (delaytime);
dustval = Analogream (dustpin);
delaymicroseconds (delaytime2);
digitalWrite (LEDPOWER, HIGH);
delaymicroseconds (OFFTIME);
delay (1000);
if (dustVal>36.455)
Serial.println ((Float (Dustval/1024) -0.0356)*120000*0.035); Test the data and air quality comparison:
3000 + = very bad
1050-3000 = poor
300-1050 = Generally
150-300 = good
75-150 = Very good
0-75 = Very good Sensor Pin Arduino Pin
1 Vled –>5V (150ohm Resistor)
2 LED-GND –>GND
3 LED –>Digital Pin 2
4 S-GND –>GND
5 Vo –>Analog Pin 0
6 Vcc –>5V
The LED pin must be adjusted to a 1ms cycle.
The LED seems to use the PNP transistor to power on, and the LED pin must receive a lower voltage.
