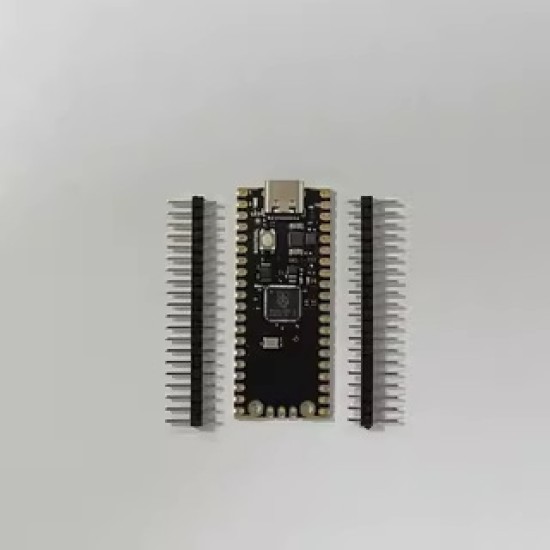

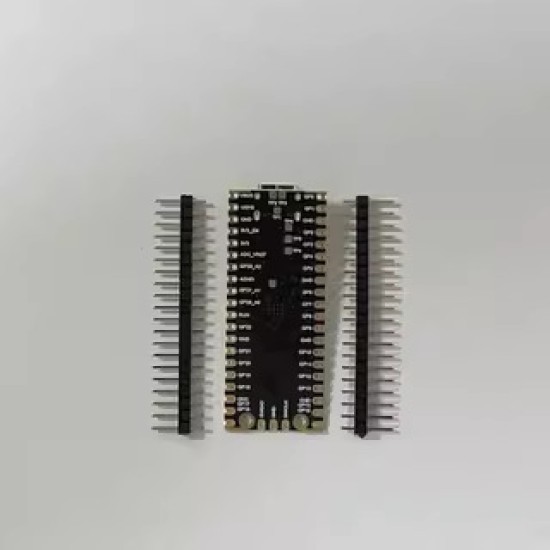

RP2350 development board micro controller module instead of RP2040 compatible Raspberrypi Pico2

Link: https://pan.baidu.com/s/1q-p9sogps5bezksaj3_dg?pwd=1234

Extract code: 1234

High -performance microcontroller development board has flexible digital interfaces.On the hardware, the RPBERRY PI officially developed RP2350 microcontroller chip, unique dual -core, dual architecture, up to 150MHz running frequency, built -in 520kb SRAM and 4MB memory, and there are as many as 26 multi -functional multi -functionGPIO pin.On the software, you can choose the C/C ++ SDK provided by the Raspberry Pi, or use Micropython for development, and supporting a complete development data tutorial, which can be easily developed and embedded in the product.

Using RASPBERRY PI officially designed RP2350 microcontroller chip
The unique dual-core and dual-architecture, equipped with dual-core ARM Cortex-M33 processor and dual-core Hazard3 RISC-V core processor, running frequency is as high as 150mHz flexible clock
520kb SRAM and 4MB Flash on Flash
The stamp hole design can be directly welded and integrated to the bottom plate of the user's independent design
USB1.1 host and device support
Support low power sleep and dormant mode
You can use USB recognition to drag and drop the download program for large -capacity memory
Up to 26 multifunctional GPIO pins
2 SPIs, 2 I2C, 2 UART, 3 12 -bit ADCs, 24 controllable PWM channels
Copy clock and timer on the accurate film
Temperature sensor
12 programmable I/O (PIO) state machines for custom peripheral support
