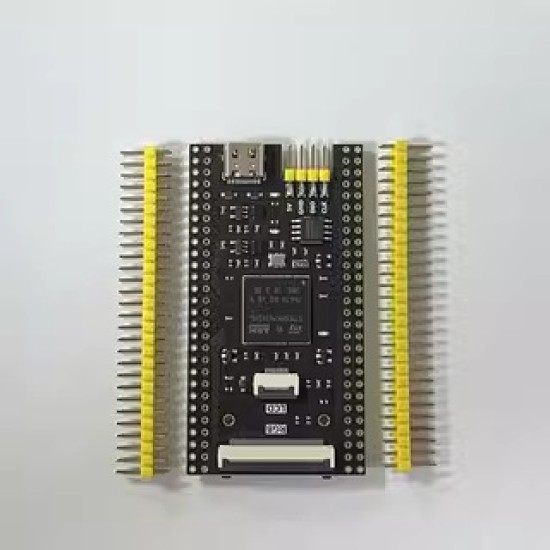

STM32H743XIH6 development board core board learning board STM32H743 small system board development STM32

Link: https://pan.baidu.com/s/1xo1utmyklurk7nm8ijouiq?pwd=1234

Extract code: 1234

Core board resource introduction

Main frequency: 480MHz, Ospiflash: W25064

Inner 2M Flash Sram 1M

LCD interface FPC40P supports 4.3-10.1-inch LCD module, supports touch screen

Extraction of 81 10 mouths, the spacing distance of the row needle pins is 2.54mm

Typce mainstream USB port, camera interface, 0.96-2.0 LCD interface

1 programmable LED, 1 power indicator light, 2PCS button

Volumes lead the SWD download mouth, serial port, serial port

Compatible acupuncture compatibility universal board 2.54mm spacing development

特色:下载口支持直接对接下载器省去排线>SDRAM 32M chip

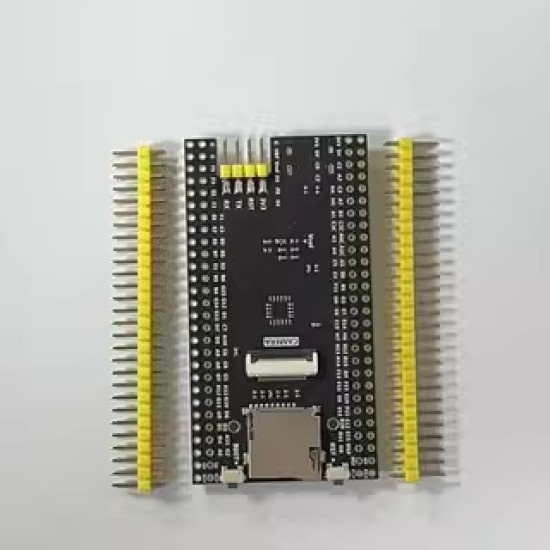

Ending SD card seat interface, maximum support of 32GB, supporting USB reading and writing

Main frequency: 480MHz, internal ROM: 2m, the internal RAM is as high as 1M byte, which can drive 800*480/1024*600 screen to use 16-bit colors, with the store 4.3-10.1-inch LCD screen using the image display GUI development, support supportEMWIM GUI development, 32M SDRAM extension, with 4.3-10.1 screen swipes display faster, suitable for industrial control IoT, product development and use in multiple fields of visual fields, which can be used with multiple modules such as cameras.8M byte W25064 chip, program can run from Flash
