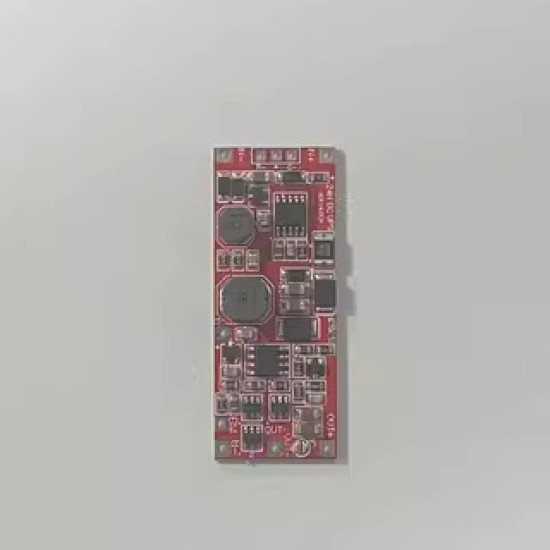

UPS uninterrupted power control motherboard DC12V/15V red board 24W1A UPS power supply module 2s V4.0cn

Regarding power: The peak power of this product is 30W (test when the battery is full, only 3-5 seconds are allowed), and the rated power is 24W (when the battery power is greater than 50%, it can be tested.The value of the valley value is 18W (the battery is tested when the battery is about to be exhausted, and this power is allowed for a long time). Since the battery cannot be fully used in the use of the battery, the user can only useWhat is the label on the device, but the actual power cannot exceed 18W, otherwise there is a risk of overheating and restarting. As for the 24W power, it can only be used for a few minutes or tens of minutes when the battery is full, but this power cannot be used for a long time!Unless you hang an additional temperature control fan to cool the motherboard, if you heat dissipate well, you can continue to load 24W power for a long time!

Regarding the fever: When the battery is fully charged at 18W, the heat is 60-70 degrees, the heat is 70-80 degrees when the battery remains half, and the heat is 80-90 degrees when the battery is exhausted.-80 degrees, when the battery power is less than 50%, the load 24W will cause the chip to exceed 90 degrees, and then trigger overheating protection. The chip is restarted repeatedly. As a result, it is easy to damage. Do not use it overload!

Method about determining whether it is overloaded: After connecting the load after power -on, the high -temperature area of ​​the back of the motherboard is touched by your finger. If you can withstand more than half a minute, it means that it is not overload!

Regarding the input current: For non-professional users, the input current must be greater than 12V3A. The 4-5A current is better. When leaving more margins, it can reduce the temperature of the external power supply. For professional-level users, there is no need to pay attention to this parameter.Ensure that external power supply power is greater than charging+loads. For example, the load is 0.5A, the charging is 0.5A, and the external power supply is enough to connect 12V 1.5A! Novice does not understand this, so you must refer to the provisions of the use of the use, otherwise you will encounter various each.An annoying question!

Note: The downgrade version is a version derived from the power of the 24W standard version to reduce the power of the charging and battery protection components. This version of the rated power is 18W. Naturally, it can be used for about 12W when heat dissipation.Treatment of heat dissipation, the main board is small, and your own heat dissipation cannot be reached! So pay attention to the load power!

The downgrade version charging is about 0.5A!

1. Welding wire interface at both ends

2. Can be connected to the indicator light

3. Enter anti -connection protection

4. Short -circuit protection

5. Support charging plugging

6. Charging current can be adjusted

7. Work voltage adjustment

Product code: 24W DC UPS V4

Product function: charging+voltage+battery protection

Input voltage: DC12V/DC15V

Output voltage: DC12V/DC15V

Output power: rated 24W (available 18W)

Applicable battery: 7.4V-8.4V lithium battery

Air load power consumption: 0.2-0.3mA
Outer size: 50mm*20mm scholars 0.5mm

Basic parameter table

Product name: 24W switching DC UPS module v4.0

Product power: instant 30W/rated 24W/available 18W

Battery type: 7.4-8.4V lithium battery/support 18650

Charging method: trickle/constant current/constant voltage three -stage charging

Charging current: Fast charging mode about 0.9A-1A charging current

Switching threshold: When the voltage falls 0.8V, the battery is powered on the battery

Product function: charging+battery voltage+switching+overlap protection

工作电压：默认12V模式/输入电流应>3A

Battery capacity: slow charging to 4-6AH, fast charge 4-12AH

Charging voltage: voltage range 8.2-8.4V average 8.3V

Dowlving voltage: The battery is lower than 6.0V-6.4V automatically disconnect

Path loss:: FUSE and SS54 loss is about 0.4V-0.6V

Protection function and precautions

Input protection: IN input interface has anti -connection protection functions

Battery protection: Battery interface Passing protection+short -circuit protection

Charging protection: Enable a trickle charging mode when the battery is under voltage

Disable power supply: prohibit interference or unstable power supply

Output protection: The output interface has a short -circuit protection function

LED protection: external LED, the lead must not touch the power supply

Chip protection: Close or restart when the chip exceeds 120 degrees

Disable load: prohibit connection motor or electromagnetic load

The battery type battery line must be thick, otherwise it will produce interference or insufficient output power

Warning: Please read the provisions of the user. If you are not satisfied with the conditions of use, please do not power the product. When this product is a circuit model, it is only suitable for the use of the circuit model!Batium with a larger multiplier rate, which is less than 5C, calculates ordinary batteries

12W DCUPS motherboard: The power wire requires 22AWG within 1 meter length, the battery cable requires 20-22AWG within 20 cm, the air can be loaded within 8W when the air is dissipated

12W DCUPS Motherboard: Battery Requirements: Power battery is not less than 1,000 millions, ordinary batteries are not less than 3,000 mA, and the capacity maximum reference motherboard parameter table is used.Talent

16W DCUPS motherboard: The power supply cable requires 20AWG within 1 meter length, the battery wire requires 16-18AWG within 20 cm, the air can be loaded within 12W when the air is dissipated, and ordinary or temperature-controlled fans can be used when the heat dissipation can be used at full load.

16W DCUPS motherboard: Battery requirements: Power battery is not less than 2,000 mA, ordinary batteries are not less than 4,000 mA, and the upper capacity of the capacity is reference to the motherboard parameter table.Talent

24W DCUPS motherboard: The power supply wire requires 20AWG within 1 meter, the battery wire requires 18-20AWG within 20 cm, the air can be loaded within 18W when the air is dissipated, and ordinary or temperature-controlled fans can be used when cooling and dissipating.

24W DCUPS motherboard: Battery requirements: Power batteries are not less than 2,000 mA, ordinary batteries are not less than four dry millians, and the capacity limit reference motherboard parameter table.Talent

Reminder: The correct assembly process should be: first test the motherboard to ensure that the transportation is intact, then welded the LED and the power cord at both ends, and finally welded the battery line and connecting the battery, and then power -on test!
