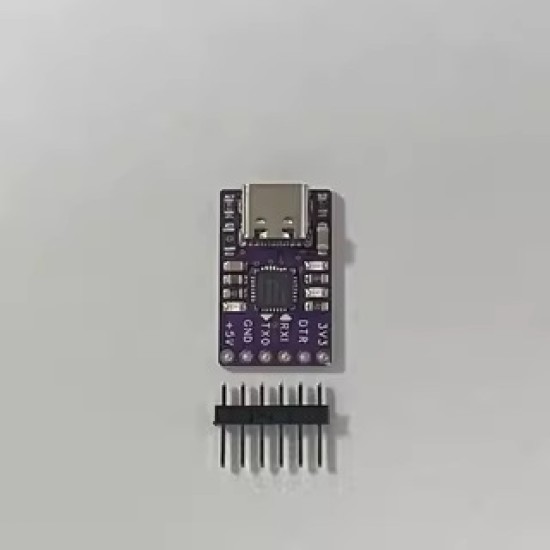

Type-C USB interface CP2102 module USB to TTL USB to serial port UART STC downloader

Link: https://pan.baidu.com/s/1jsa-7x8clw1h4non7datxq?pwd=1234

Extract code: 1234

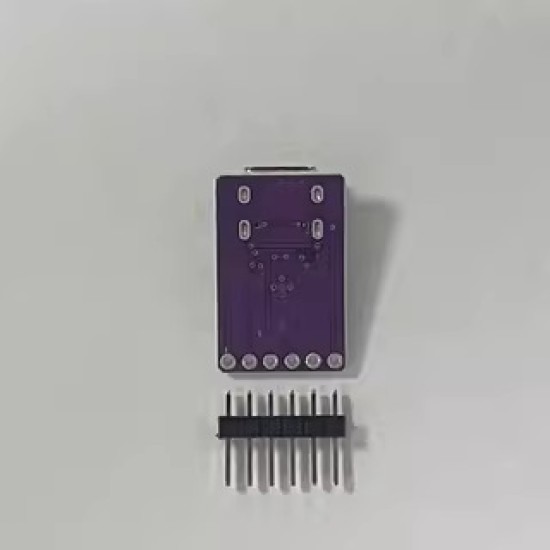

Send needle but not welded

CP2102 module USB to TTL USB to dial UART STC downloader

CP2102 has a high integration, built -in USB2.0 full -speed function controller, USB transceiver, crystal oscillator, EEPROM, and asynchronous serial data bus (UART). It supports the full -functional signal of the modem without any external USB device.CP2102 is similar to the working principle of other USB-UART conversion circuits. It is virtually forming the USB port of the PC through the driver to achieve the purpose of expansion.

Pose-module communication USB rotor 5V power output TTL level CP2102 kernel CP2102 is a highly integrated USB-UART bridge that can provide a simple solution to use minimized elements and PCB space to achieve RS232 conversion USB.To put it simply, the user uses CP2102 to convert the USB interface with the RS232 interface.
Module description:
1. 2102 chip, the COM port is generated after installing the driver.
2. Connect the standard Micro MINI-USB cable input to connect to the computer USB interface, with two power supply output with 3.3V and 5V voltage
3. Endorphic state indicator, receiving and receiving indicator, and the state indicator light will often be on after the driver is installed correctly.
4. Support the baud rate between 300bps ~ 1Mbps
5. Communication format support: 1) 5,6,7,8 digits; 2) support 1,1.5,2 stop bits; 3) ODD, EVEN, Mark, Space, None verification
6. Support operating system: Windows 8.1/7/Vista/XP/98, Mac OS-X/OS-9, Linux, Linux, Linux
7. The USB seat interface is the Type-C-USB seat
8. Patch elements are welded with regular companies, stable quality, beautiful appearance
9. With DTR trigger signal output, you can directly download the RDUino Pro Mini Atmega328p download program communication.
10. Module size: 24.2mm*15.7mm super small.
