2 Strikes Bad18650 Lithium battery protection board 8.4V lithium battery protection board 13A working current 20A current

Notice:

This protective board cannot be used for lithium iron phosphate batteries, symptoms, flashlight drilling battery packs, electric fish machine electric bicycle battery packs, children's vehicle batteries, 775 (4A) motor, 1W fish battery group, eye LED light, for it for for it for for it for forPlease pay attention to the customers purchased above!

The attribute of the lithium battery protection board

Size: 46*20*3.6mm

Upper limit working current: 13A

The upper limit current current: 20A

Static current: less than 10UA

Internal resistance: less than 300mq

Excessive voltage range: 4.25-4.35V+0.05V

Excessive voltage range: 2.5-3.0V+0.05V

Work temperature: -40 ---+50C

Storage conditions: -40- +80 ° C

Effective life: greater than 50,000 hours

Short -circuit protection: protected, charge recovery

Charging voltage: 8.4V-9V

This protective board size: 46*20*3.6mm

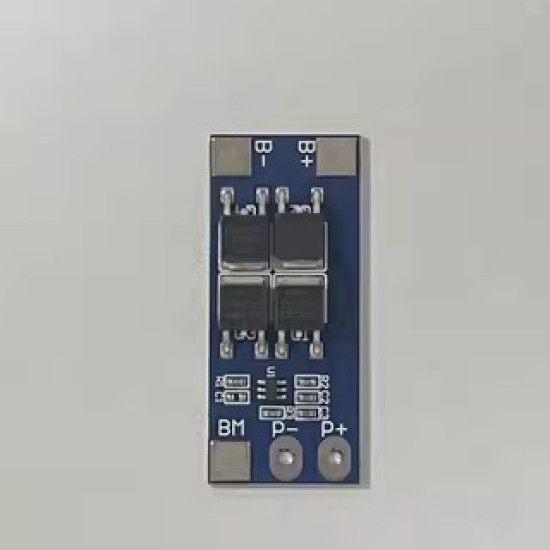

Welding point description:

B+Battery positive pole:

B-Battery negative pole:

MB connection of battery 1 and the connection point before the battery 2;

P+connection/discharge end positive pole charging terminal/discharge terminal sharing)

P-connection/discharge end negative electrode (shared by charging terminal/discharge end)

Product Attributes
Brand	Other/Other
Output Voltage	0.1
