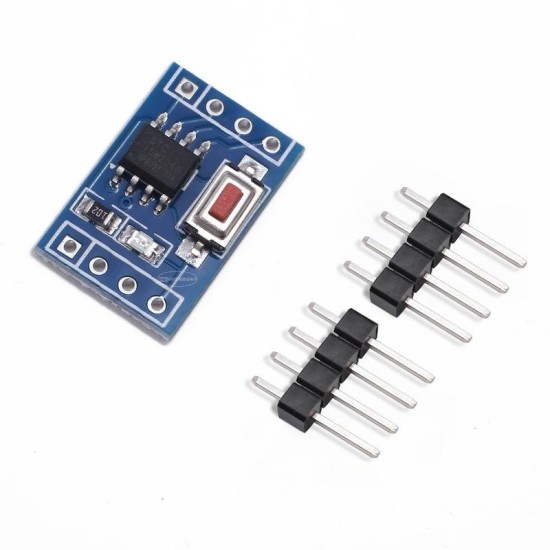

STC15W204S Single -chip Machine System Board 51 Learning Board SOP8 STC15F104E

STC15F104+204W development board information:
Link: http://pan.baidu.com/s/1qyiayry Password: KBS0

The STC15W204S learning board is designed for 51 single -chip microcomputers. It is commonly used resources to meet most of the learning needs. The details are as follows:
1 All IO port leads out
2 The LED controlled by the single -chip microcomputer is connected to the IO port P3.2, which can
3 The board is a patch switch, connected to the P3.3 of the IO port, which can be used for experiments such as IO port input, interrupt and other experiments
4 The patch switch outside the IO port and the LED do not affect the normal use of the IO port
5 -board TTL level serial port, RXD (connected to P3.0) and TXD (connected to P3.1) can be used for STC download program/serial port upper and lower machine communication (required timer cooperation) and IO port input and output and other experiments
6 Attach test program

Dimensions:

Delivery list:

1 ——— 15W204S core board 1

2 — 2 needle 2

Product Attributes
Brand	none
Model	STC15W204S Single -chip Machine Small System Board
