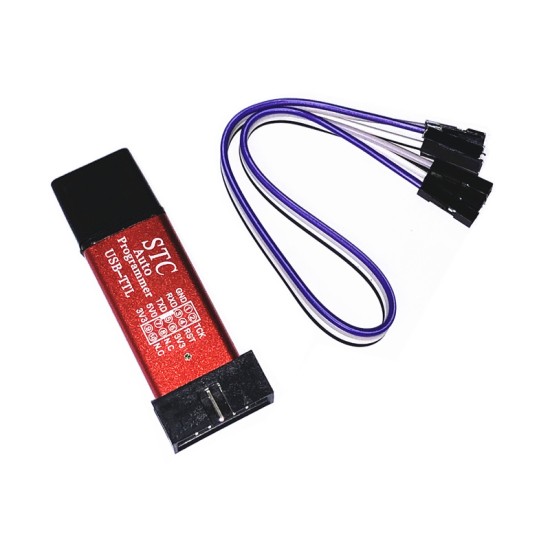

STC single -chip machine automatically download line USB to TTL free manual cold enlightenment programmer STCISP supports 3.3/5V

Link: https://pan.baidu.com/s/1inw0loa-faothgnllgh26a
Extract code: 1234

Features of this schedule:

1. This loader supports 3.3V and 5V STC. series all single -chip writing programs and the BSL recording method that supports the MSP430 single -chip microcomputer (only MSPFET software).

2.z high baoded rate 115200. Support!No need to worry about the burning of the STC12 series, STC11 series, and STC15 series!

3. There is no need to frequently disconnect the single -chip computer, that is, the automatic download of this programmer does not need to be started without cold. This feature makes the STC single -chip machine download program very convenient. Experienced friends know that when the STC single -chip microcomputer is downloaded, you need to manually go customs.When the power is turned on and then the power is turned on, this will become very painful when debugging the program. Our burned recorder does this tedious thing for you!

4. Support 3.3V and 5.0V versions of STC single -chip recording. The downloader integrates 3.3V power management chips. 3.3 The power supply current is as high as 500mA. From then on, it is not necessary to worry about 3.3V power supply!

5. The success rate of the burning rate of STC12, STC15, and STC11 series of headaches. The success rate of the Z -high Potter rate of 115200!Throw away the PL-2303HX scheme in your hand!You know the pain of burning these three series ... Don't say you have FT232, noble chip?We actually compare, Bibi burning speed!The above 3 series FT232 also can't reach the Potter rate of the Z high 115200!CP2102 is going to die aside!Lazy to mention it again!This programmer uses CH340+single -chip microcomputer to control the core killing STC. series of high -speed burns.

6.500ma self -recovery fuse,. Protect your delicate computer motherboard!Don't lose big!The sad reminder of the Taoyou burned by the USB mouth, he understands, you must understand ... Don't let yourself regret it ...

7. Metal aluminum shell protection recorder motherboard!From then on, you are not afraid to have metal and west short -circuit on the desktop. Your burning device!Use it with confidence, don't be afraid to fall, don't be afraid of pressure!Z is important for two words -grade (laser laser)

8. An interface definition is printed on the shell, so you don't have to worry about the definition of the interface!What do you want, we have it on the shell!

9. A variety of colors are available, generally randomly shipped. For friends who need to choose color, please confirm whether the color you want is available!

10. Support win7 system, compatible with the following. Department system, support 64 -bit system

STC scales only require only four pins (examples connect STC89C52 single -chip microcomputer):

5V0 connection VCC TXD connection P3.0 RXD P3.1 GND connection GND

With status indicator lights, there are data transmission that will flash, and countless data transmission often lights up.

This programmer also supports various occasions that need a variety of USB-TTL serial signals, such as serial communication, super terminal serial debugging tools, and other similar single-chip machine download programs, hard disks or set-top boxes, MSP430 single-chip machine burning, etc.Use the technical support service for the time being, please explore it by yourself.

Regarding the reverse explanation of TXD and RXD cable: Some friends are questioning why they are connected on the contrary, because this is the communication method of PC and target board. For details, please refer to the information: http://blog.chinaunix.net/UID-26782198-id-3299637.html Copy into the browser to open it
