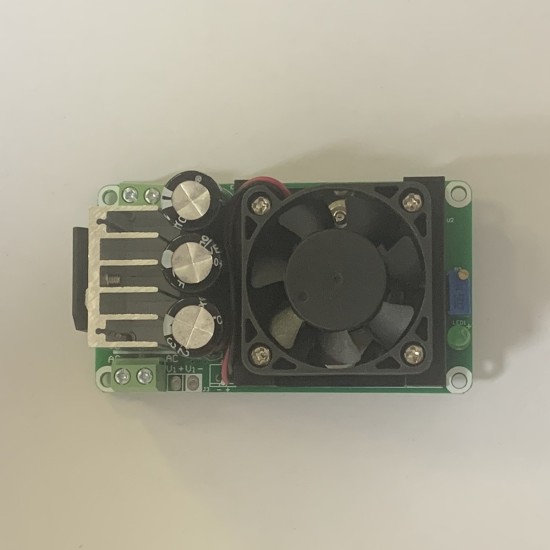

LM338K adjustable voltage voltage power plate can adjust the voltage voltage regulatory module to adjust the linear regulator with neat filter

Electric parameter number:
Input voltage range: DC5V-35V, AC5V-22V
Output voltage range: DC1.25V-30V (continuous adjustment)
Export current range: maximum continuous working current
Work temperature range: 0 ° C-100 ° C (In order to prevent over-temperature damage, you can increase heat dissipation or use other active heat dissipation methods)
Size (length, width and height): 86mm x 48mm x 32mm
Note: The voltage voltage of the board is the disassembly part of it. Please note that because the new domestic LM338K, the output current will not be burned if it will not exceed 2A.

LM338K, as an excellent linear stabilizer, has the characteristics of high stability, high temperature resistance, high linearity and other characteristics. The output voltage range can reach 1.25V ~ 30V.5A needs to increase the heat sink or increase active heat dissipation measures).The board has an 8A rectifier bridge (with a heat sink), and is equipped with an input filter capacitor equipped with 4400UF to output the output filter capacitor of 2200UF, which can effectively reduce the output ripple and interference.Electric appliances, equipment, audio, digital amplifiers, etc., which are suitable for power supply below 30V, provide low internal resistance and low ripple power.

Product Attributes
Brand	Other/Other
Output Power	/ /
