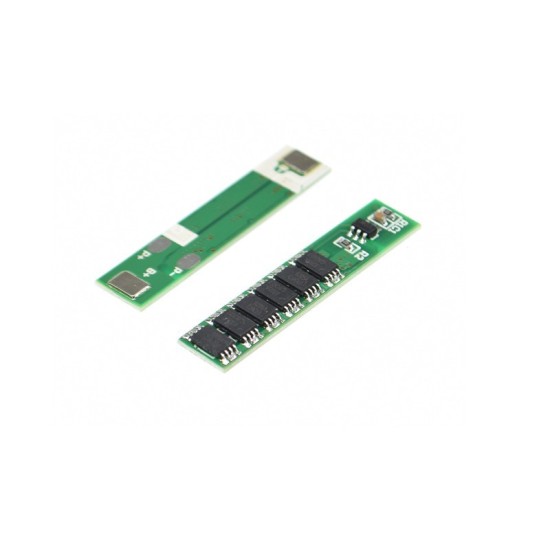

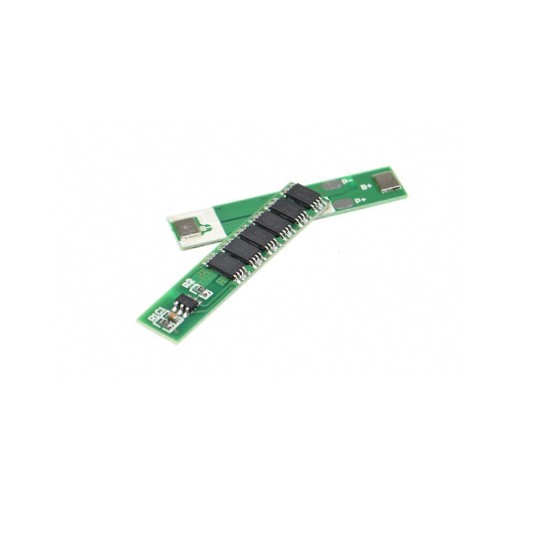

Single string 18650 3.7V lithium battery protection board 6MOS can be welded and more than contending

Technical parameter:

Over -charging detection voltage: 4.25 ± 0.05V
Over -charging voltage: 4.23 ± 0.05V
Excessive discharge detection voltage: 2.45 ± 0.1V
Continuous current: 12A
Overcurrent detection current: 15A
Charging voltage: 4.2V
Product size: 35*7.4*2.2mm
IC component: DW01+8205A

Main function:

Overcoming protection, overlap protection, short -circuit protection, overcurrent protection.

Wiring description:

B+Battery positive electrode.

B-The negative electrode of the battery.

P+is the battery pack output input positive pole

P-output input negative electrode for the battery pack

Product Attributes
Brand	Other/Other
Output Power	/ /
