USB to CAN module supports CAN FD CAN bus analyzer V2.0 version

Features:
1. Using a high -performance STM32G4 series single -chip microcomputer, the operating frequency is as high as 170m.
2. Support CAN2.OA Can2.0B and CAN-FD protocols, faster rates.
3. Support webpage update firmware, easy to use, open source information.
4. Support open source upper machine CANGAROOOA protocol analysis software.
5. Easy to use, with a three -color LED state indicator.

Product parameters:
Input voltage: 5V
Interface: Type-C power supply
Product size: 45*20mm

Instructions for use:

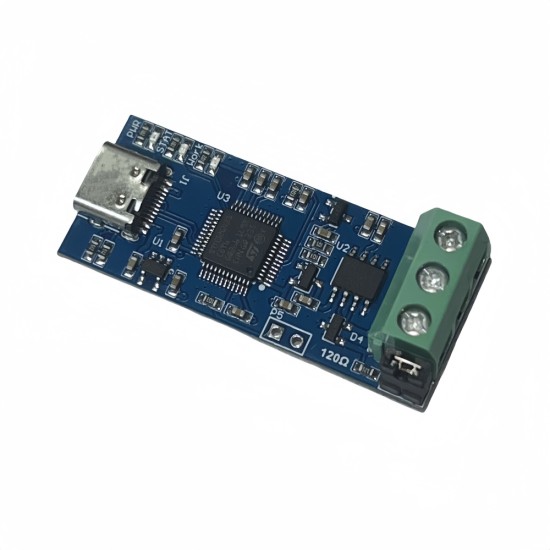

1.Type-C mother seat: access the computer through USB cable

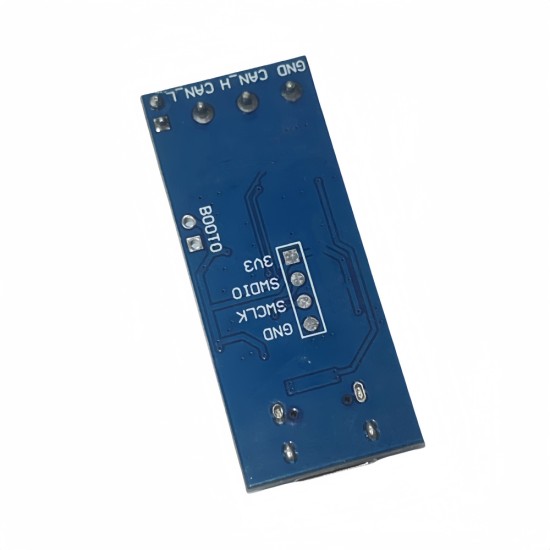

2.Boot Start: After short connection, insert Type-C, and will enter the boot mode. You can re-burns the firmware

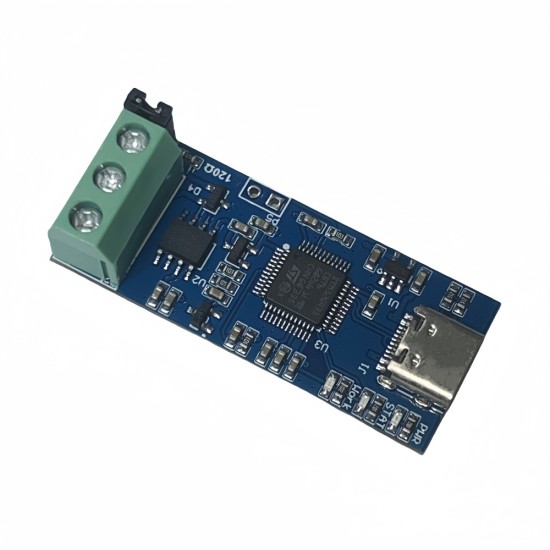

3. Terminal resistance option: Insert a jumper cap, indicating that the connection of 120Ω terminal resistance
4. Output interface: CAN_H and Can_L access the CAN bus GND can be connected or uninterrupted
5. Insert the computer, the three -color lamps on the board will light up.Serial port equipment will appear in the device manager.

Product Attributes
Brand	Other/Other
Output Power	0.1
