Smart vehicle IMU660ra six -axis gesture sensor BMI270 acceleration meter gyroscopy module competition

Reference data car routine:

Link: https://pan.baidu.com/s/1icdtc7a1zj04hion3v925W? PWD = 1234

Extract code: 1234

Product model six -axis acceleration gyroscope IMU660ra

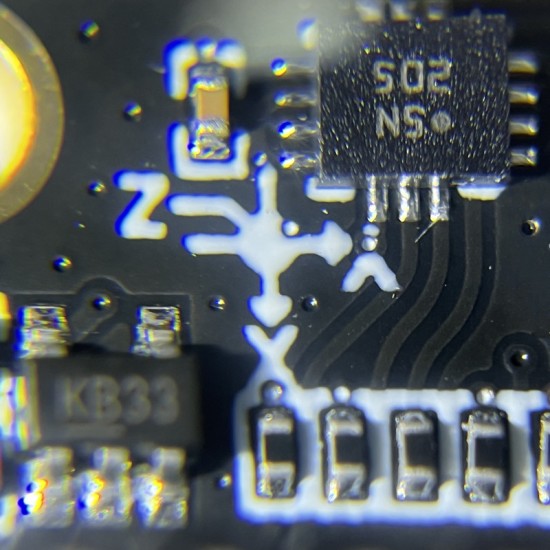

Chip model BMI270

Product color black and white

Product weight is about 1.6g

Power supply and power supply 3.3V-5V (built with LDO voltage voltage chip)

The communication method supports IC and SPI (hardware SPI can reach 10m baud rate)

Gyroscope range +125dps +250dps +500DPS +1000DPS +2000DPS

Acceleration range 2g 8G 8G 8G 16G

Interface name

VCC

GND

SCL/SPC

SDA/SDI

SAO/SDO

Port description

Power supply 3.3V-5V

Power supply

SPI-SCKI1C-SCL

SPI-MOSIIC-SDA

Spi-miso | IIC-SA0

SPI film selection

Int1

Int2

Interrupt 1

Interrupt 2

Product Attributes
Brand	Other/Other
Output Voltage	0.1
