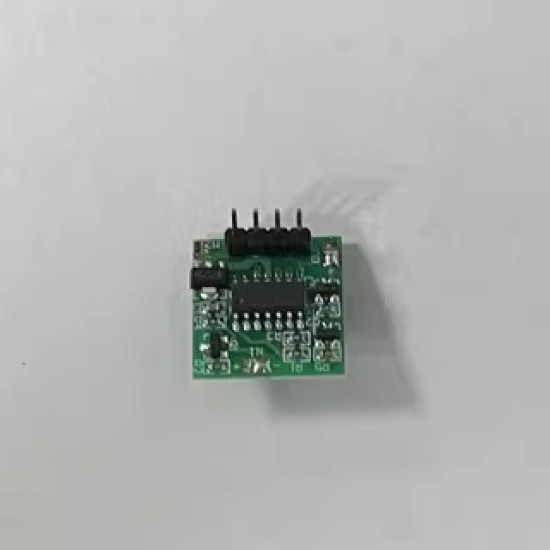

Time relay module control board unplugged switch template time -delay switch voltage accuracy can be adjusted

1. Function description:
1. Automatically reset;
2. Delay time adjustment range is about 10 seconds-24 hours;
3. current output and voltage ratio parameter table:
Driving voltage ↓ Drive current ↓ Drive voltage ↓ Drive current ↓
3V 300MA 12V 80MA
5V 200mA
9V 100mA

4. Wide voltage input: DC 3.3V-18V;

5. The working current of the module is less than 1mA.

6. You can directly drive 3V relay, 5V relay, 12V relay, LED light, etc.;

7. You can choose low input, high input, low output, high output and other methods through short circuit points;

8. Time accuracy is higher than that of ordinary 555 timing, simulation timing and other simulation circuits;

9. Machining the full -high precision patch machine to achieve high -quality technology and ensure high quality;

10. Simple operation and convenient use; indicate that this product does not have a recycled time -time function

11. This module is not only small in size, a large scope of time, but also conveniently the time to choose to use. It does not need to consume a lot of time in the process of adjusting the time;

12. In order to make users more convenient to use, this product has another distribution right -angle pins

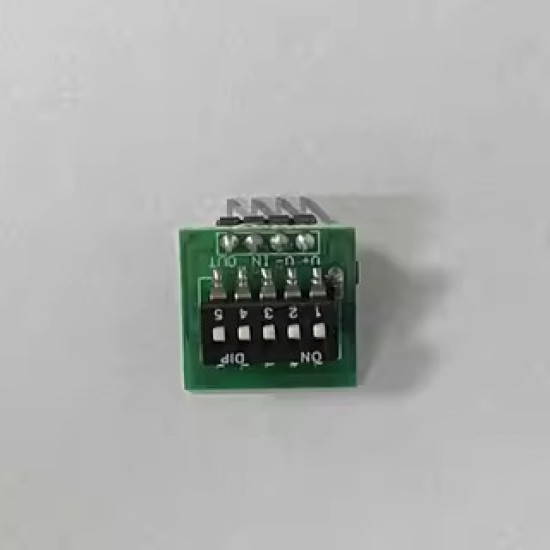

13. When the power is not triggered, you can adjust the dial switch at will to select the time.

two.use:
Delay switch, timer, timing lights, etc.

Three: Size:

Without a pin size 18mm × 18mm × 7mm.The pitch is 2.54mm.
