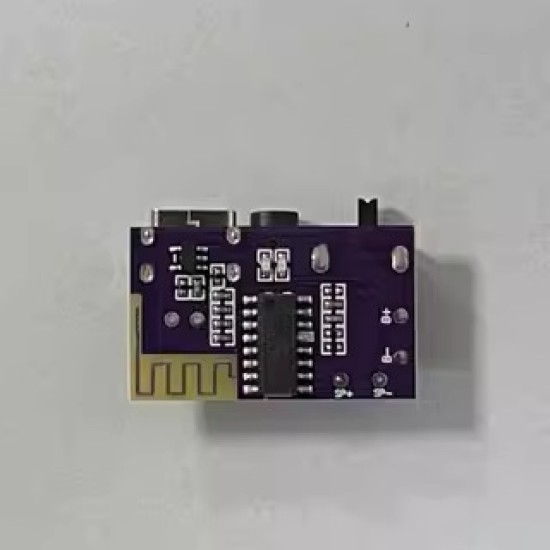

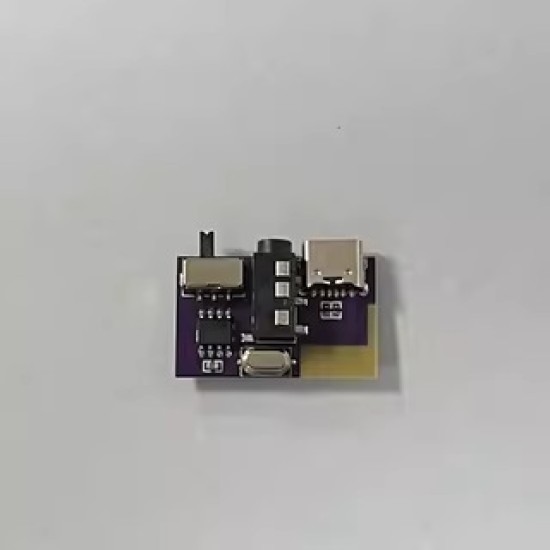

DC3.5V-5V 5W single-channel audio player Bluetooth decoding board supports TWS couplet Type-C interface

DC3.5V-5V 5W single-channel audio player Bluetooth decoding board supports TWS couplet Type-C interface

Product Description:

After getting the Bluetooth board, weld in the wiring diagram below and welded the horn and a 3.7V lithium battery and then checked the battery without the connection. You can turn on the switch blue indicator.No proper installation.The indicator light is lit with a dingling prompt sound to open the mobile phone Bluetooth brush to refresh the Bluetooth name, and find music to connect to play mobile phones.Regarding the TWS pair, if you buy two Bluetooth modules that can be paired with stereo, you need to turn off the mobile phone Bluetooth first, and then turn on the two boards at the same time. Wait for a few seconds to hear the prompt sound. At this time, there is a module blueThe color indicator is often on, and another module indicator is still flashing that the TWS pairing is successful. At this time, turn on the phone to connect the Bluetooth, so you have a stereo wireless speaker.The battery is recommended to use a 500mAh-2000mAh capacity of 3.7V, the charger uses 5V1A-2A, and uses a USB2.0 rpm Type-C line for charging.

Efficient power amplification: It can provide 5W output power, suitable for driving small speakers or portable audio equipment.

Convenient use: Support 3.5mm audio input, support TWS pairs, and enhance the flexibility of use

Low -power design: Using low power consumption circuit design, even if it runs for a long time, it can maintain lower energy consumption

Small size: Decoding board design is compact, which is easy to integrate into various audio systems or devices, saving space

Stability and compatibility: After strict testing, ensure that it can work stable under various audio signal inputs.

Working voltage: DC3.5V-5V

Charger: It is recommended to use 5V/1A

Charging interface: Type-C

Headset jack: 3.5mm

Size: 28.5mm*17.3mm

Battery: 3.7V polymer Lithium battery or 18650 lithium battery (requiring customers to bring its own battery) speaker: 2-4Ω (3W-10W), you can access one 2Ω speaker or connect to two 4Ω speakers at the same time

Product Attributes
Brand	Other/Other
Output Voltage	0.1
