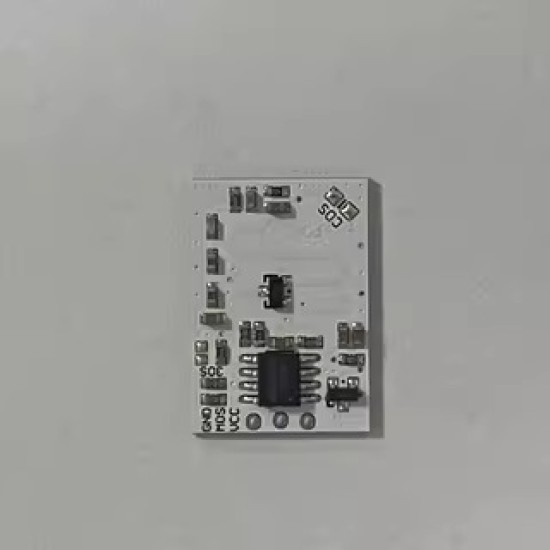

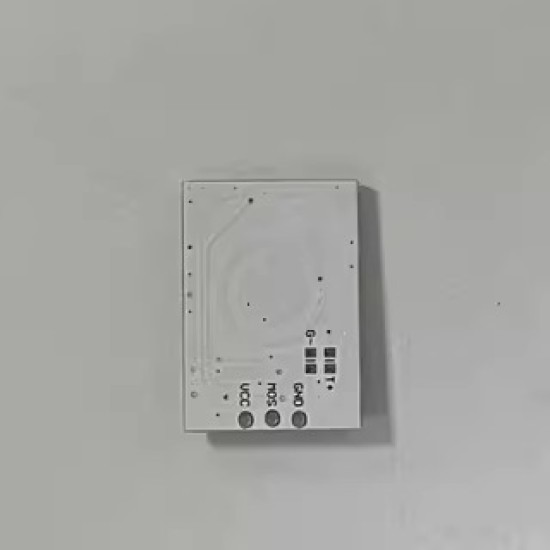

RCWL-0513 Microwave radar human induction switch module smart sensing detector can directly light

Product overview

RCWL-0513 is a microwave induction module that uses Doppler radar technology to detect objects.The 3G microwave signal detection has the characteristics of high reliability, high sensitivity, large induction angle, and wide operating voltage.Built -in MOS (3A), which can directly drive the external LED light or load.The input voltage is as high as 30V.Microwave induction is a new type without dead ends, based on the principle of Doppler radar.Compared with infrared induction, the microwave induction distance is farther, with a wide angle, no dead areas, and can penetrate glass and thin wooden boards; not affected by the environment, temperature, dust, etc. In the case of 37 degrees, the induction distance will not be shortened.Widely used in various human sensing lighting and anti -theft alarm!

Main characteristic

Working voltage: 3-30V

Work current: 2.5ma

Working frequency: 3GHz

Built -in 3A MOS

Reserved patch and direct -inserted CDS interface

Typical induction range

Sensing distance adjustment

Lead -free process

Repeat trigger time can be adjusted

15 meters of typical induction range

Caller lamp, induction light, solar lamp

UV anti -virus lamp, bathroom induction light

Human movement sensing

Product Attributes
Brand	Other/Other
Output Voltage	0.1
