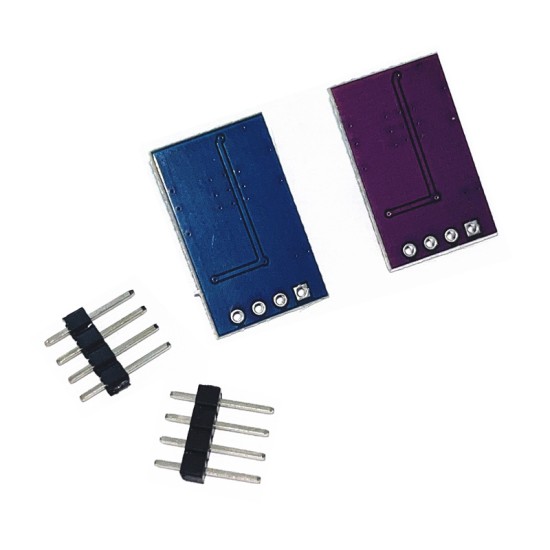

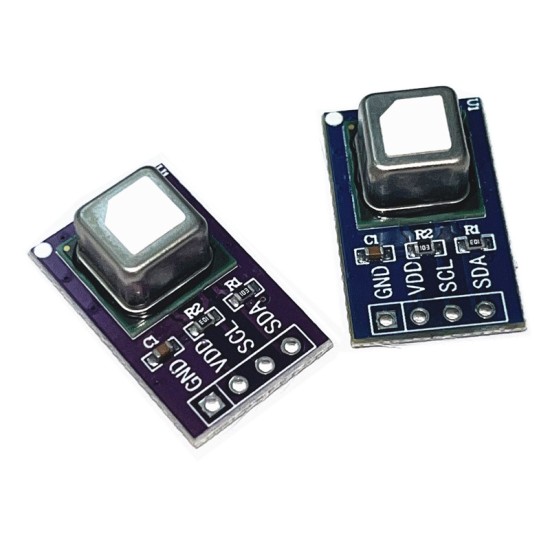

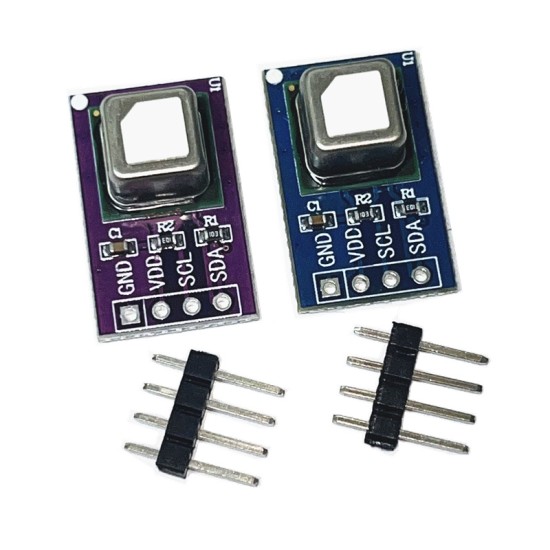

SCD40 SCD41 Gas sensor module detect CO2 carbon dioxide temperature humidity two -in I2C communication

Applicable scenario: home use

Link: https://pan.baidu.com/s/1ajdqrlvbr0_vq9c3lve0mw? PWD = 1234

Extract code: 1234

Product introduction
Carbon dioxide is a key indicator of indoor air quality to damage human cognitive ability and happiness. SCD40/SCD41 is the next -generation micro carbon dioxide sensor of Sensirion. SCD40/SCD41 has high accuracy and cost -effectiveness.And the communication foot leads.The temperature and humidity compensation on the film is to measure humidity and temperature measurement through the built -in temperature and humid sensor.SCD40/SCD41 can realize intelligent adjustment indoor ventilation systems according to the carbon dioxide concentration. Indoor air quality helps to maintain a healthy and efficient environment with low carbon dioxide concentration within a period of time.

feature
Standard accuracy, specified scope, SCD40: 400-2000 PPM SD41: 400-5000 PPM

Power supply voltage range: 2.4–5.5 V
High precision: ± (40 ppm+5%)
Digital I2C interface
Integrated temperature and humidity sensor
Low -power operation to

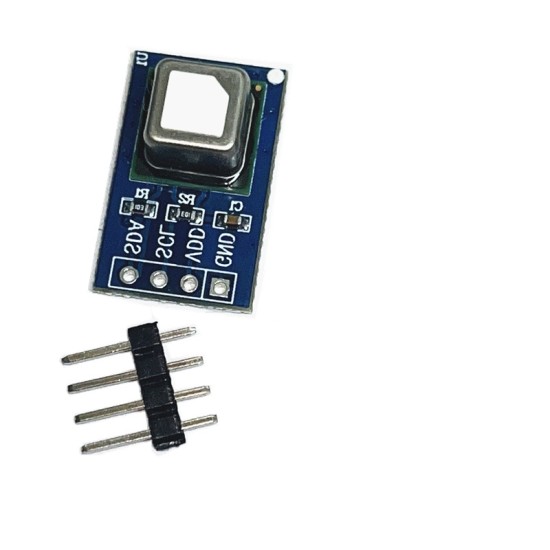

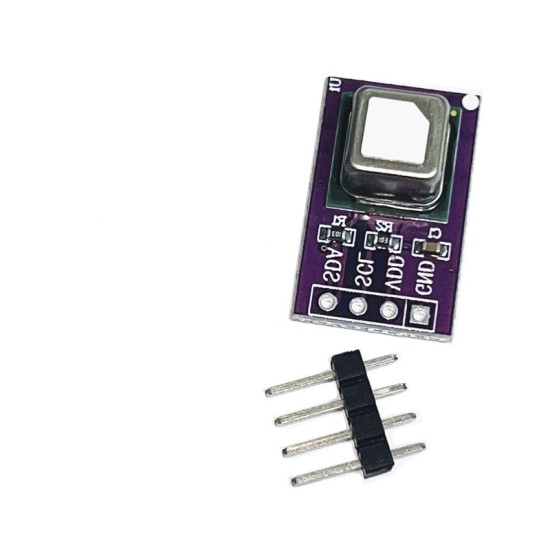

Interface definition:
1.GND: The input port of the power supply negative electrode input
2.vdd: Power positive input port
3.SCL: I2C clock port
4.SDA: I2C data port
Board size: 13.4 × 21.6mm

Product Attributes
Brand	Other/Other
Output Power	0.1
