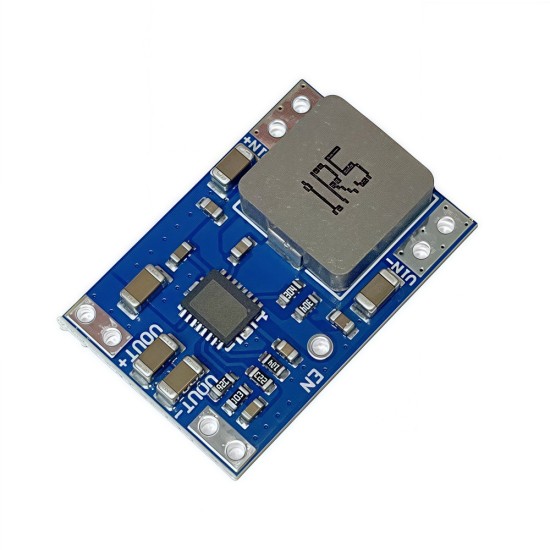

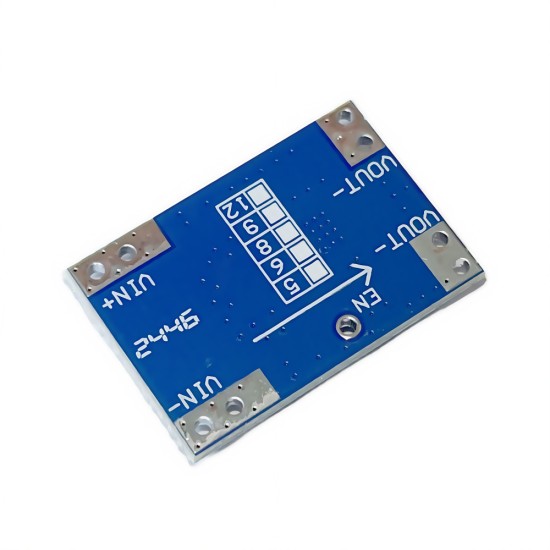

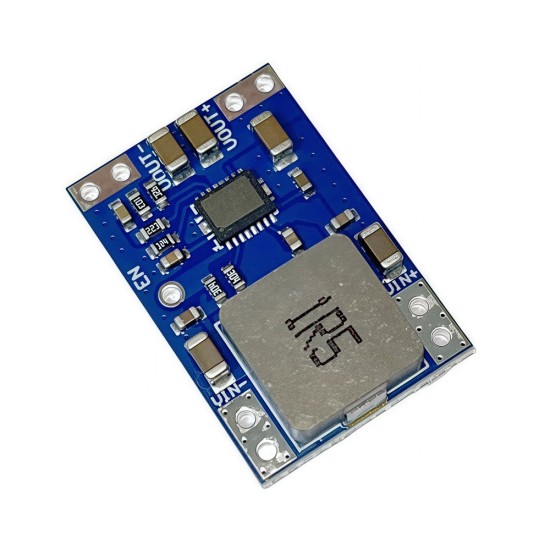

DC-DC boost power module 3.7V4.2V5V to 9V12V6V8V mini small volume high power module

Input voltage: 3-11V (input must be less than the output voltage, 1V)

Output voltage: 5V/6V/8V/9V/12V

Output current: 12V3A long period of time

Output ripple: full carrier ripple below 80mV

Output accuracy: ± 0.1V

Air -load current: 1MA

Work temperature: -40 ° C ~+85 ° C

Work humidity: 20%~ 90%

Size: 25*17*5.5mm (length*width*height)

PCB layer: 2 layers

Treatment function: Bringing off function EN

Heating method: natural heat dissipation (the back is pasted on the iron plate or aluminum plate for heat dissipation, pay attention to insulation)

Installation method: welding line, patch

Whether to bring in isolation: without isolation

Product Attributes
Brand	Other/Other
Output Voltage	0.1
