STM32F103C8T6 small system board single -chip core board STM32

Information: http://pan.baidu.com/s/1O8J5XCQ

http://yunpan.taobao.com/s/2mwuymksxo

STM32F103C8T6 minimum system core board

Product introduction

This is an ARM core board based on STM32F103C8T6 as the main chip. It has the following characteristics:

1. The most basic circuit based on the MCU, such as crystalline circuit, USB power management circuit, and USB interface.

2. The core board leads to all I/O port resources.

3. With the SWD simulation debugging download interface, the interface requires at least 3 lines to complete the debugging and download tasks. Compared with the traditional JTAG debugging, there are many benefits. Here is a statement of JTAG.For example, ST's new M0 series MCU only retains the SWD debugging interface, and JTAG is directly canceled

4. The size of only the traditional DIP40 packaging (eg, AT89S52) is only found on Taobao, which has not yet found a core board of the same specifications than us.

5. Use the Mirco USB interface used by smartphones. It is convenient to use and can be used as USB communication and power supply.

6. In response to the problem of STM32 RTC, we adopted the officially recommended low -load RTC crystal solution and used the crystal of the Epson brand without using a cheap cylindrical crystal.

7. A single row needle with a high -quality 1*40/2.54mm spacing to ensure excellent conductivity contact and convenient for users to place the core board on the standard universal board or bread board.The needle is not welded by default, and users can choose welding direction according to their needs.

Introduction to chip:
1. STM32F103C8T6

Packaging type: LQFP;

Number of pins: 48;

Core: Cortex-M3;

Working frequency: 72MHz;

Storage resources: 64K byte Flash, 20KBYTE SRAM;

Interface resources: 2x SPI, 3X usart, 2x I2C, 1x can, 37x I/O port,

Model conversion: 2x ADC (12 -bit/16 channels)

Timer: 3 ordinary timers, 1 advanced timer

Debugging download: Support the debugging download of the JTAG/SWD interface, support IAP.

2. RT9193: 3.3V stabilization chip, with a maximum output of 300mA.

Other MCU parameters are as follows

Interface introduction:
1. SWD interface: Support simulation, download and debug.

2. Mirco USB interface: Power supply and USB communication functions, do not support download.

3. USART1 interface: It can be used for download programs in USART1, or using USART1 to communicate.

4. MCU pin interface: lead all I/O port pins to facilitate connection with the peripherals.

5, 5V and 3.3V power input and output interfaces: commonly used for external power supply, or handle with other modules

Introduction to other devices:

1. Power supply LED (PWR): The power indicator state can determine whether the power supply is stable.

2. User LED (PC13): Easy to operate or indicate the running status of the I/O output test or indicator program.

3. Start jumping selection programming method: (1. User flash memory 2. SRAM 3. System memory).

4. Subtoving button: Used for user reset chip program.

5, 8M crystal: The main frequency of the system can be 72MHz through the frequency settings.

6, 32.768kHz Crystal: For built -in RTC, or for calibration.

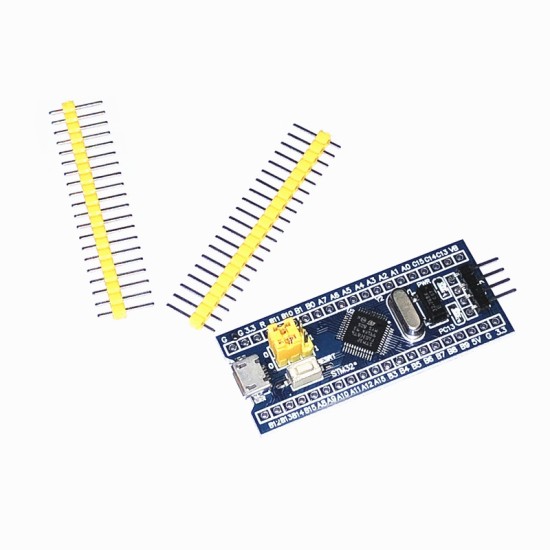

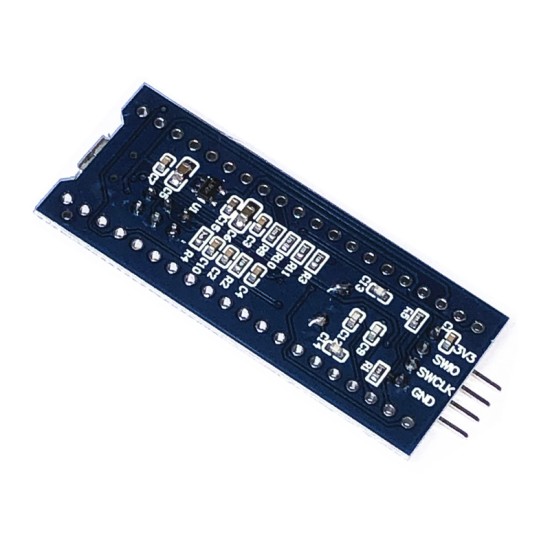

Product picture:

Dimensions:
