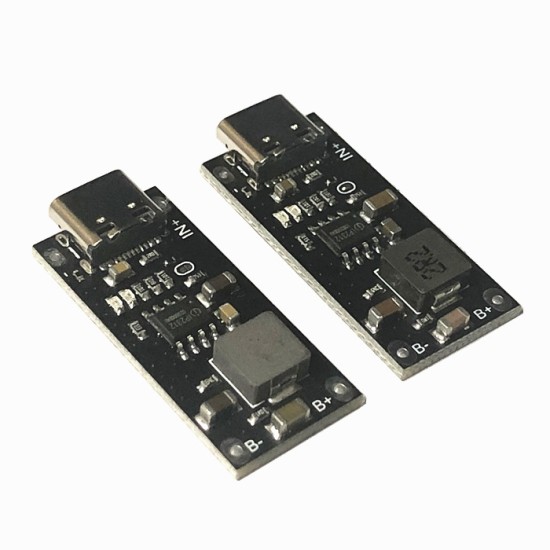

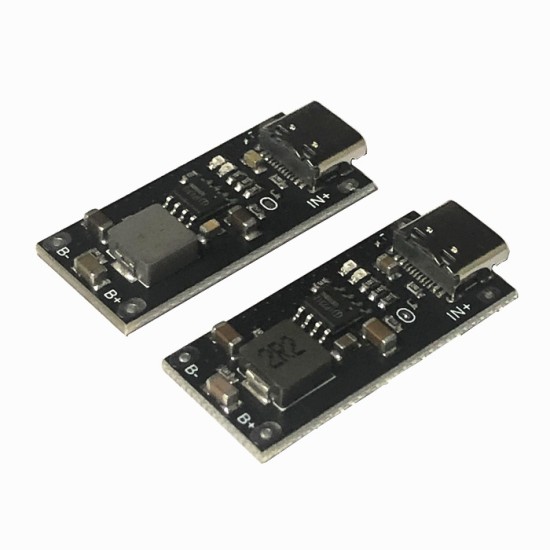

3A large current polymer three yuan lithium battery charging board 5V to 4.2V/4.35V support Type-C input

2020 new version update instructions:

The size is unchanged compared to the second version, and the board line optimizes to replace better components.

Increase support for the mainstream fast charging header in the market.The fast intelligent charging head of the mobile phone can also be fully used.

Product name: 3A polymer ternary lithium battery fast charging board (note that it is not suitable for 3.2V lithium iron phosphate battery)
Model: AILAVI-0503v3
Main -control chip: IP2312
Input voltage: 4.5 ~ 5.5V
Charging cut -off voltage: 4.2V/4.35V (2 versions of the output voltage are available)
Charging current: 3A (can be adjusted by adjusting the current)

Indications: Yes, red: work indicator.Blue: full of indicators.Note: This product does not have the power indicator function, without the battery protection function. This store also has a lithium battery protection board and the power indicator board.
Conversion efficiency: 3A 93%, 2A 94%, 1A 95%(data for reference only)

IP2312 uses a complete CC/CV charging mode.

When the battery voltage is lower than 3V, enter the trickle charging mode and charge the battery with a 100mA charging current.
When the battery voltage is greater than 3V, enter the constant current charging mode to charge the battery with the set constant current charging current.
When the battery voltage is close to 4.2V and the charging current is less than 300mA, enter the constant voltage charging mode.After entering the constant voltage mode, it stops charging every 4 minutes and detects whether the battery voltage is higher than 4.15V: if it is higher than 4.15V, stop charging; otherwise, continue charging, and then test after 4 minutes.
When the battery is full, if the battery voltage is detected below 4.1V, it will be charged to the battery.
Current adjustment description:
Default 3A, remove the resistor 2A, replace it with 135K resistance 1A
