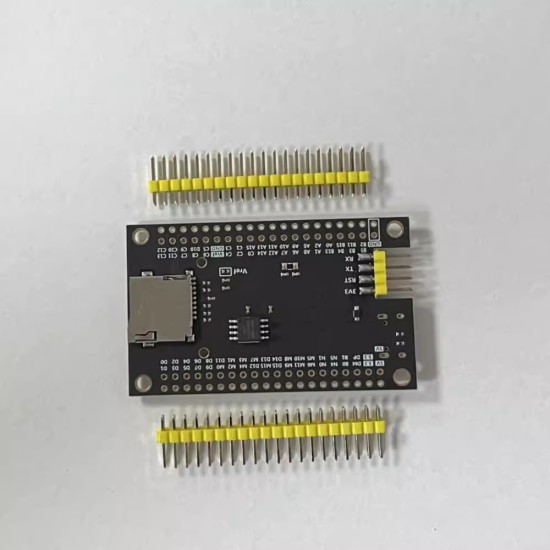

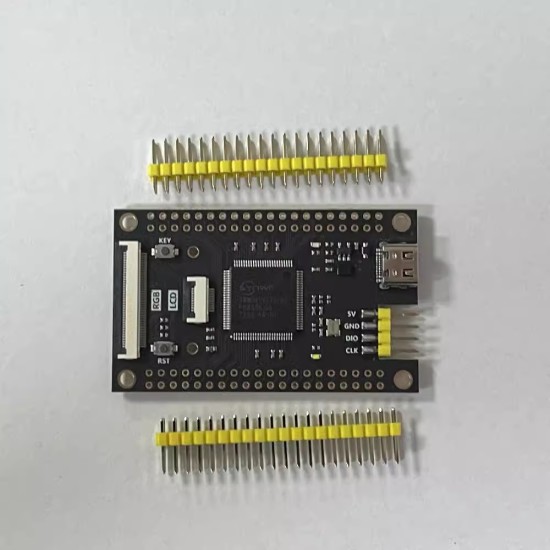

SWM34SVet6 development board system board single -chip machine domestic micro -processor beyond STM32F429

Link: https://pan.baidu.com/s/1mhtvj1jnkvk2f-igk3enhw?pwd=1234

Extract code: 1234

Not compatible with STM32, you cannot use ST's tools, nor can you use ST-Link

The routine is written in Keil, because it is the M33 kernel, which only supports 5.32 or above versions, and can only be used by the AC6 compiler

Jlink only supports V9 or above versions, and some Jlink (especially Jlink OB) may not be able to debug download normally

Support CMSIS DAP debugging and download, using the SWD interface

Main frequency 150 mHz

512KB Flash in the film,

64K SRAM in the film

8MB SDRAM in the film (16 -bit wide)

Expansion W25Q64, capacity 8M byte

1 reset button, 1 user button

1 user LED

1 Typec interface

1 TF card interface

1 SPI LCD interface

1 RGB LCD interface

Working environment temperature -40 ~ 850C

Send 70 IO ports

Product Attributes
Brand	Other/Other
Output Voltage	0.1
