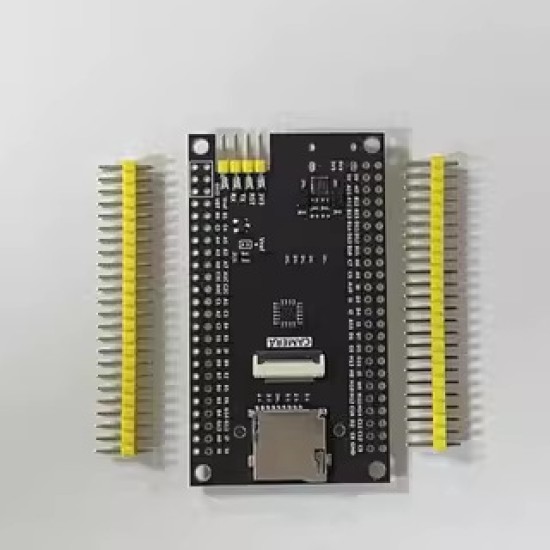

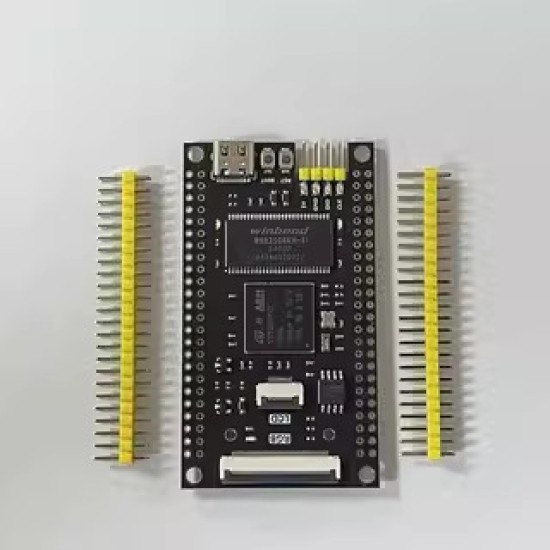

STM32H750XBH6 development board core board visual collection small system board instead STM32H743 407

Link: https://pan.baidu.com/s/1ydt2gmyjuebahznut7vmhw?pwd=1234

Extract code: 1234

Core board resource introduction:

Main frequency: 480MHz, QSPLFLASH: W25064

128kflash SRAM 1M inside the chip

LCD interface FPC40P supports 4.3-10.1 inches, supports touch screen

Extraction of 81 10 mouths, the spacing distance of the row needle pins is 2.54mm

Typce mainstream USB port, camera interface, 0.96-2.0 LCD interface

1 programmable LED, 1 power indicator light, 2PCS button

Volumes lead the SWD download mouth, serial port, serial port

Compatible acupuncture compatibility universal board 2.54mm spacing development

Features: Download port support directly to save the line downloader to the line

SDRAM 32M chip

Ending SD card seat interface, maximum support of 32GB, supporting USB reading and writing

Main frequency: 480MHz, internal ROM: 128K, the internal RAM is as high as 1M byte, which can drive 800*480/1024*600 screens to use 16-bit colors, with our 4.3-10.1-inch liquid crystal screen use basically satisfy image display GUI development, support supportEMWIM GUI develops an external expansion of 32M SDRAM. It is faster with 4.3-10.1 swiping screen display. It is suitable for the development and use of product control IoT. Product development and use in multiple fields of vision can be used with multiple modules such as cameras.8M byte W25Q64 chip, the program can run from Flash,
