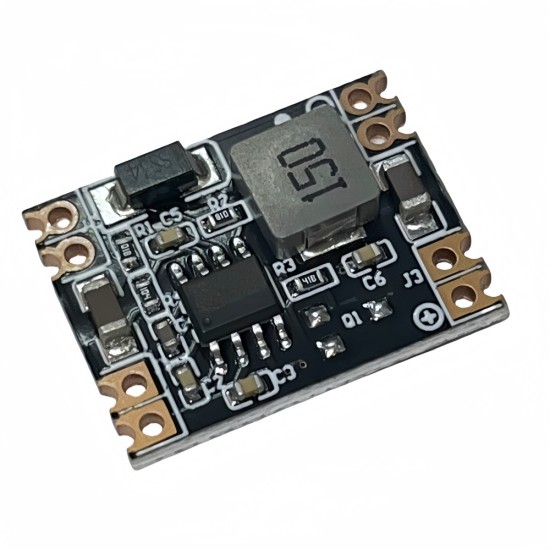

DC-DC voltage pressure board 3A voltage pressure power module 24V 12V 9V to 3.3V5V can output MP1584en

3.3V:

Input voltage: 5.3V-26V

Output voltage: 3.3V

Output current: 3A (Peak) long -term work control within 1.8A

转换效率:96%(峰值)(Vin-Vout>2V) Small, the higher the efficiency

Output ripple:
Work temperature: -40 ° C ~+85 ° C

Module size: 22.3*17*4.2mm

5v:

Input voltage: 7V-26V

Output voltage: 5V

Output current: 3A (Peak) long -term work control within 1.6A

转换效率:96%(峰值)(Vin-Vout>2V) Small, the higher the efficiency

Output ripple:
Work temperature: -40 ℃ ~+85 ° C

Module size: 22.3*17*4.2mm

9v:

Input voltage: 11V-26V

Output voltage: 9V

Output current: 3A (Peak) long -term work control within 1.1A

转换效率:96%(峰值)(Vin-Vout>2V) Small, the higher the efficiency

Output ripple:
Work temperature: -40 ℃ C ~+85 ° C

Module size: 22.3*17*4.2mm

12v:

Input voltage: 14V-26V

Output voltage: 12V

Output current: 3A (Peak) long -term work control within 0.8A

Conversion efficiency: 96%(peak) (vin-voutz2v), the smaller, the higher the efficiency

Output ripple:
Work temperature: -40 ° C ~+85 ° C

Module size: 22.3*17*4.2mm

Product Attributes
Brand	Other/Other
Output Voltage	0.1
