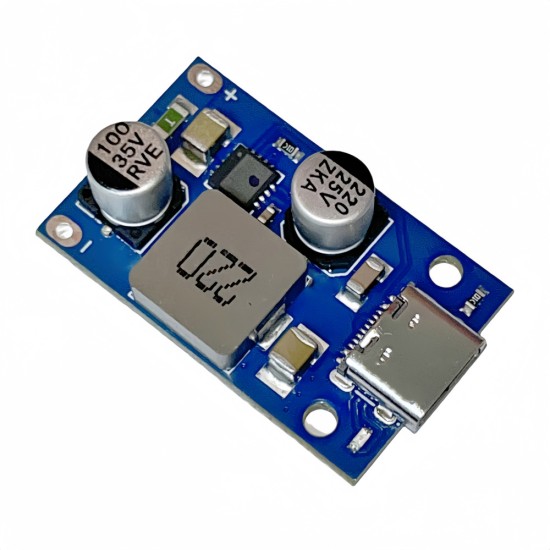

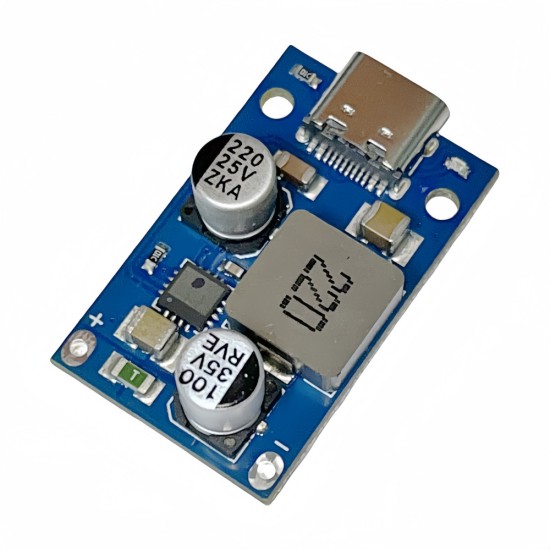

PD65W fast charging module Type-C interface PD QCSCP PPS Full Protocar Charger Charger Module

Features:
Support PD3.1 (PPS), QC3.0, SCP
Bringing protection function, input overvoltage and under pressure protection, input overcurrent protection, output overcurrent short circuit protection, and the protection of the whole machine
Output 20V 3.25A
Enter 8 ~ 30V (can only reduce blood pressure)
DC models are divided into 5521 and 5525, 5521: 5.5mm outer diameter, 2.1mm inner diameter; 5525: 5.5mm outer diameter, 2.5mm inner diameter.

Product parameters:

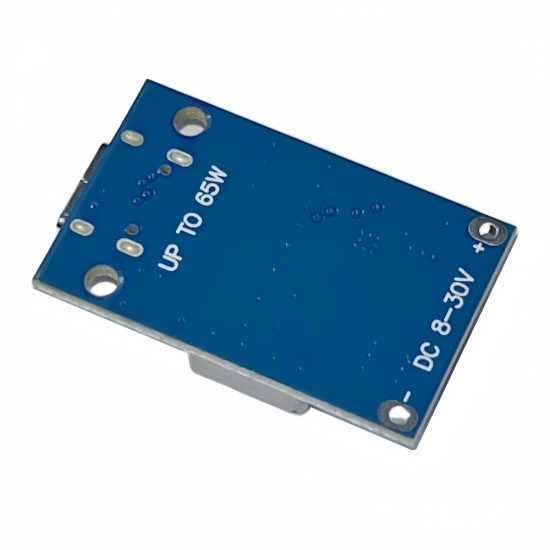

Input voltage: DC 8 ~ 30V
Output voltage: When the electrical device that is compatible with Type-C is connected at 3.3V ~ 21V, automatic adjustment (input voltage is higher than the output voltage, and the input voltage is higher than 20V if you want to trigger 20V fast charging))
Output power: 65W (5V3A, 9V3A, 12V3A, 20V3.25A, etc.))
Output: 20V 3.25A
Conversion efficiency: 92%~ 97%
Output voltage ripple: empty -load current: Input overvoltage and under pressure protection
Enter overcurrent protection
Output overcurrent short circuit protection
Over -temperature protection of the whole machine
Support charging protocol: PD3.1 (PPS), QC3.0, SCP
Product size:
Standard model: 32 × 20 × 10mm (1mm that does not contain the mother seat of port C)
Bring DC seat: 44 × 20 × 10mm (1mm protruding from the mother seat of the C -port)

Supportable charging protocol:
BC1.2, Apple protocol
Qualcomm QC2.0 and QC3.0
Huawei Fast Charging Agreement FCP and SCP
Samsung fast charge agreement AFC
MTK PE+1.1 and MTK PE+2.0
PD2.0/PD3.1 (PPS) output protocol
Product application: various power supply transformation fast charge output

Instructions for use:
When using the 20 ~ 24V power adapter as the input, it is recommended to power the power supply and then connect to this module. Otherwise, the module matching power error may occur due to the slow power supply power.
