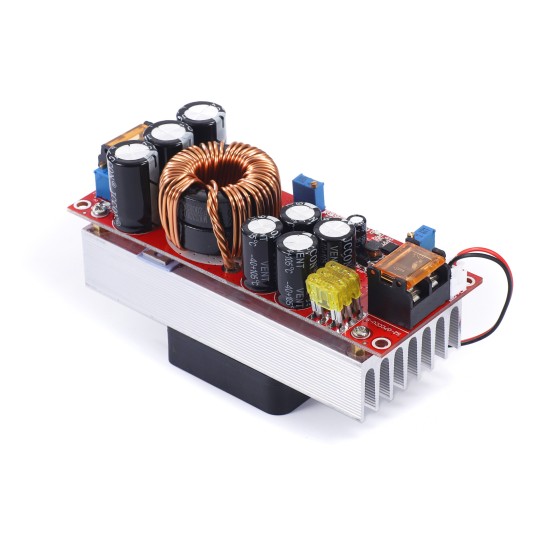

1500W 1800W30A Large current DC-DC DC Constant Constant Flowing Power Power Power Module Electric Vehicle Rapin

Module name: 1500W-1800W booster constant current module

Module nature: non -isolation boost module (BOOST)

Input voltage: DC10-60V

Input current: 10-30V input voltage, maximum current 30A

31-60v input voltage, maximum current 25A

Static working current: When 15mA (12V liters 20V, the higher the output voltage, the more static and too much current will increase)

Output voltage: 12-90V continuously adjustable (the default output is adjusted to 19V shipping. If you need to adjust to other voltage values, please explain. If there is a multimeter buyer, you can adjust it by yourself)

12-90V fixed output (for batch customers)

Output current: 20A MAX exceeds 15A, please strengthen heat dissipation (related to input and output pressure differences, the larger the pressure difference, the smaller the output current)

Scope of constant current: 0.8-20A (+/- 0.3A)

Enter anti -counter -back: there are (150A power MOS anti -anti -countermeasures)

Low battery protection: there are (8-50V adjustable) self-recovery type

Work temperature: -40 ~+85 degrees (please strengthen heat dissipation when the ambient temperature is too high)

Working frequency: 150kHz

Conversion efficiency: 92%-97%(efficiency is related to input, output voltage, current, and voltage differences.

Enter overcurrent protection: Yes (input more than 35A, automatic protection, power supply does not boost)

Short -circuit protection: Some (enter 30A fuse) dual short -circuit protection, safer use.

Enter anti -connection protection: there are (150A power MOS tube defense. It can be reversed for a long time)

Installation method: 4 3mm copper columns

Wiring method: Wiring terminal (please use large current pure copper wires)

Module size: 130mm wide 52mm high 84mm (high copper column and fan), 130mm wide 52mm high 67mm

Module single weight: 490 grams

Output power: = Input voltage*30A, such as: enter 12V*30A = 360W input 12V, the maximum power is 360W

Input voltage*30A, such as: Input 24V*30A = 720W, that is, the maximum power when entering 24V is 720W

Power description:

Because the maximum input current is 30A when this power is 10-30V, the maximum input current is 25A at 31-60V, and the output power is related to the input voltage.The higher the input voltage, the greater the power, the

(The input voltage*input current is equal to the power of the whole machine.) For example, the input 12V*30A power is 360W. Input 24V*30A is 720W. The input voltage is 36V.

Features:

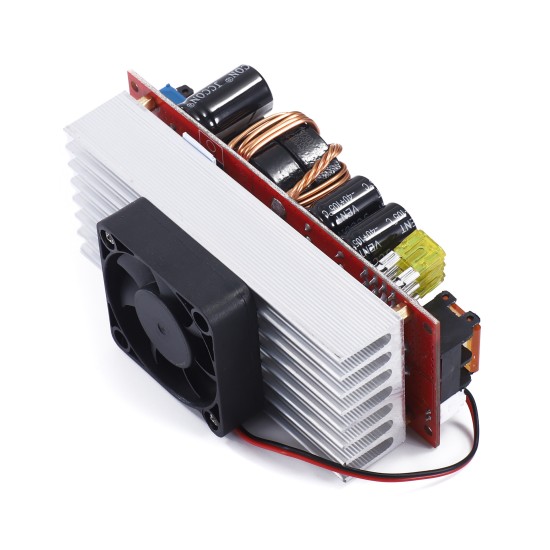

1.With wing -type heat dissipation, the heat dissipation effect is very good, and the output power is greater (the power can reach about 1800W when the 48V input is added).

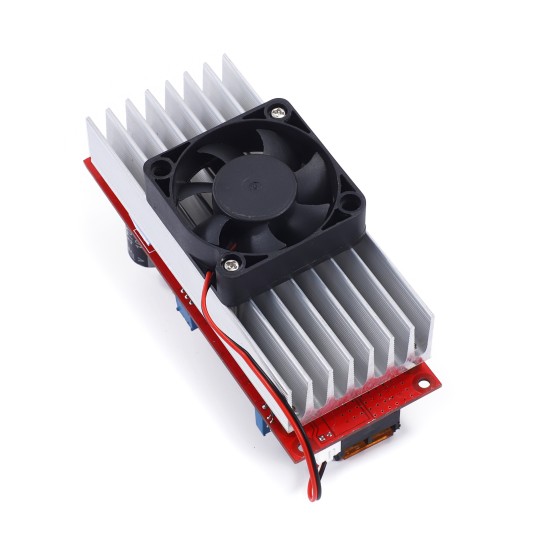

2.Temperature -controlled fan, with the hydraulic bearing fan, gets a very good balance in noise and heat dissipation.When the load is light, the fan does not rotate, and the load temperature reaches about 60 degrees and the fan automatically turns.Can effectively reduce noise and prolong life.
3.The main power tube insulation plate is high -end alumina, and the heating rate is 10 times that of ordinary insulation pads.
4.100V 210A TO-247 large packaging power tube, large power balance, good dynamic response.
5.Double -size iron silicon aluminum magnetic rings, 4 1.2 pure copper paint bags are used to spare, low heating and high efficiency.
6.New design, conversion efficiency is as high as 98.1%(see the data manual efficiency conversion curve below).
7.Brand 3296W multi -circle potentiometer, with high adjustment accuracy and small drift.
8.The output current of Kang copper wire is sampled, and the constant current is stable and warm.
9.The protection of underwriting can be adjusted, which can effectively protect various batteries and can also be used for solar cells.
10.Bringing the constant current function can be used for battery vehicles, charging battery, and so on.
11.Entering 3 20A fuse parallel can protect the risks caused by short circuit output.
12.Three indicator lights: under pressure, overcurrent, power indication, work status at a glance.
13.The input and output use high -frequency capacitors, with low output ripples, small heating, and long life.
14.The input and output newly added MLCC ceramic capacitors, and the output ripples are significantly reduced. When 48V to 72V 4A, it is about 100 millivolo.

Delivery by default: The output voltage is about 19V, the current is about 30, and the lack of voltage protection is about 10.5V. If the factory needs to be adjusted to other voltage

We are designed for lead -acid batteries, lithium batteries, solar batteries or power supply boosts to boost electric vehicles and charged batteries. The functions are very powerful.

1. For example, the original battery of the electric vehicle can increase the power supply to the electric vehicle, which can increase the speed and acceleration of the electric vehicle.

2. Charging your electric bicycle, (1: For example, there is a 12V or 24 idle battery in your hand. You can charge the original battery after voltage the voltage power supply, which is equivalentIt can also be connected to solar cells, wind energy, generators and other power supply to increase the battery life of the original battery

3 You can increase the battery voltage and make the electric vehicle run faster, and the Jianyi should not exceed 10V.

4 Solar panels boost and voltage.
