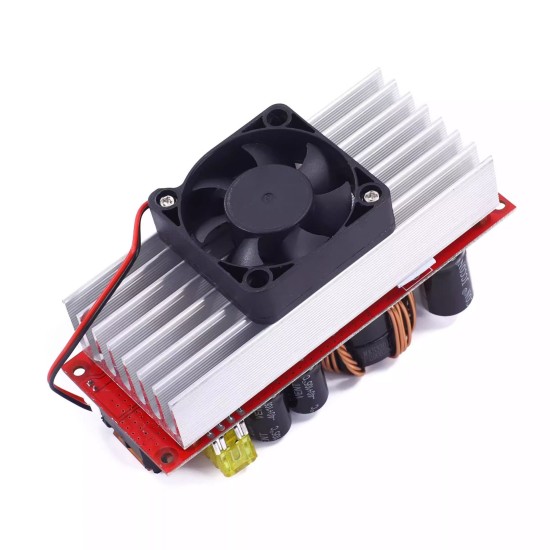

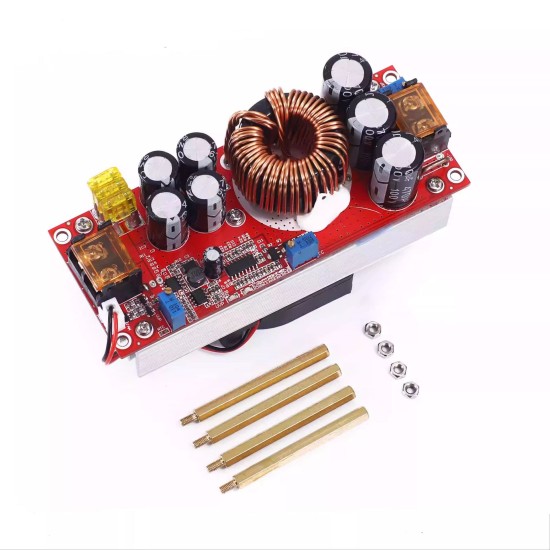

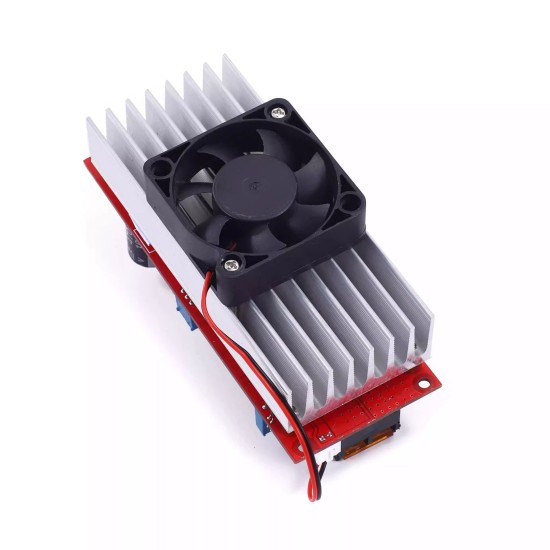

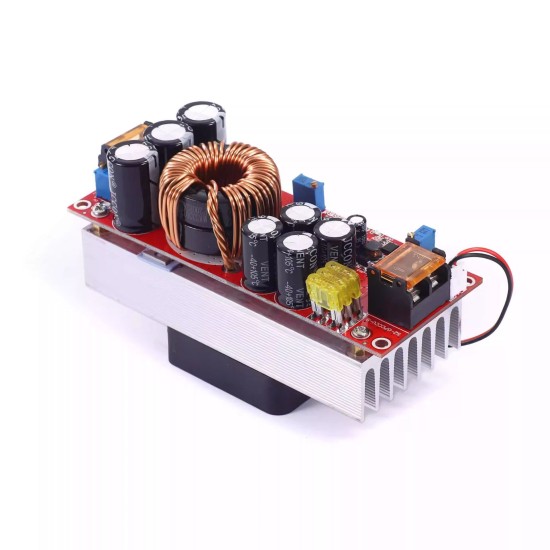

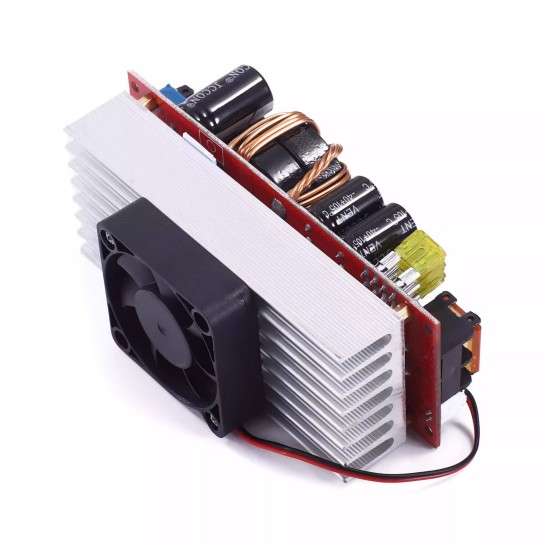

DC-DC booster conversion module 1800W high power boost 40A constant voltage constant flow adjustable power supply module

parameter:
Working characteristics:
Output power: 1800W
Input voltage range: 10V-60V output voltage range: 12V-90V
Input current: 40A
Output current: 22A
Conversion efficiency: 48V to 60V8A (981%)
48V to 72V8A (981%)
48V 84V8A (97.6%)
Charging adjustment: 10%to 50%charging (72V output)
Temperature coefficient: 50%load
Robe and noise: 20MHz bandwidth (48V-72V4A) 100MVP-P switch frequency: vin = 48vvo = 72v4a (110kHz)
Air load current: vin = 48vvo = 72V (18ma)
Enter reverse protection: yes
Storage humidity: 95%
Work temperature: -2065 ° C
Storage temperature: -40125 ° C
Winning at work: 48V to 60V 5A (45C) overheating protection: 60 ° C
Wiring method: input, output (no welding, wiring terminal)

Heating method: strong wind and cold appearance

Voltage adjustment:
With the air load of the power supply, use a word screwdriver to adjust the output end "V-ADJ" potentiometer (there are signs below).The reaction will be slower when the high voltage adjustment to the low voltage.The adjustment of Jianyi's adjustment is smaller.
Current adjustment:
inverse
The time clockwise adjustment of the "CC A-ADJ" potentiometer is about 30 laps, set the output current to minimize, connect to the LED battery and other loads, and adjust the "CC A-ADJ" potentiometer to the current you need.For the battery charging, after the battery is installed, the output is received, and the cc A-ADJ to your required current must be used to adjust the battery that runs the power when charging, because the battery is leftThe more power, the smaller the charging current.
The default output electricity is shipped to 3A.If we need to adjust the current value instructions or leave a message.
Do not adjust the current by short -circuit output.
Enter low battery protection adjustment:
Low battery protection is mainly for the input power supply to prevent the battery when the battery is used to prevent the battery. The battery voltage is too low to damage the power module and the battery input as the switching power supply
