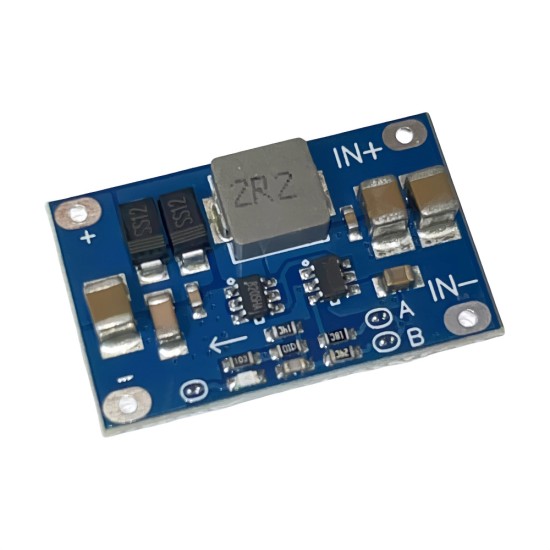

3.7V5V to 12V DC-DC boost module is 10W to set 5V 8V 9V 12V

Basic parameter

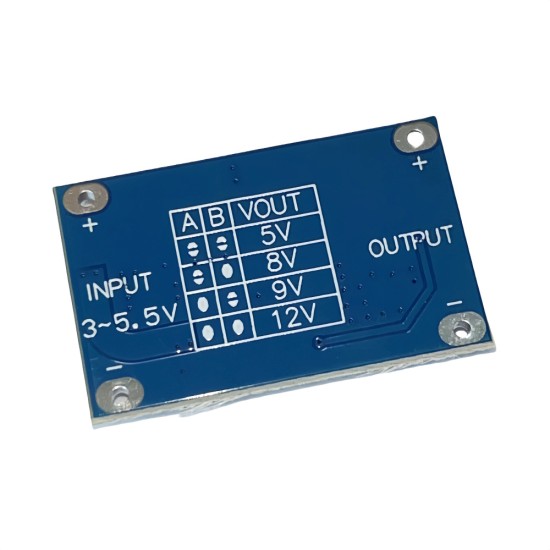

Input voltage range: 3V ~ 5.5V.The input voltage needs to be lower than the set output voltage.The output voltage can be set to 5V/8V/9V/12V, and the default 5V.

输出能力:以3.6V 电池输入时，可输出 5V1.5A、8V1A、9V1A、12V0.8A;以5V输入时，可输出 8V1.2A、9V1.2A、

12V1A.

During the default 5V output, the LED indicator consumes a current of about 1mA (the input terminal is about 3mA).If the indicator light is turned off, the input terminal current is input during empty load

Product Attributes
Brand	Other/Other
Output Power	0.1
