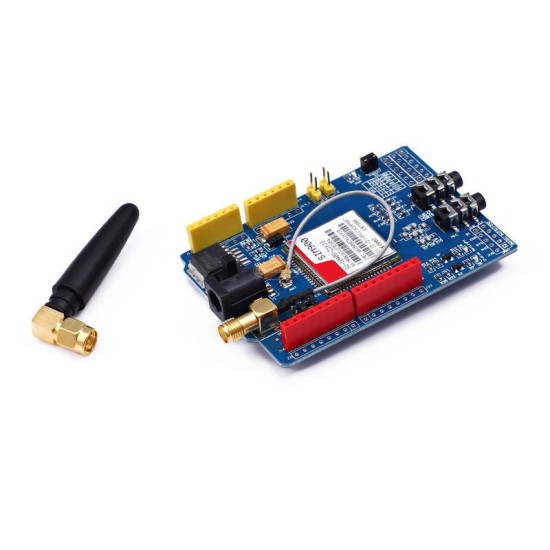

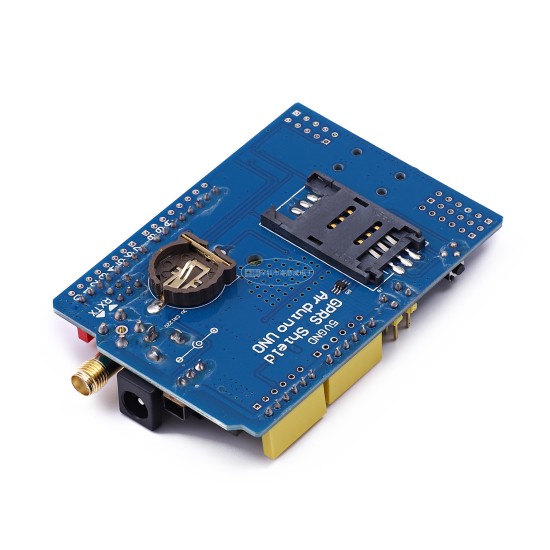

SIM900 module 4 frequency development board GSM GPRS SMS Wireless Data Super TC35i

This module belongs to the SIM900 module, and the 4 -frequency module is available worldwide.

Reminder: The row needle on the back of the board is not welded by default

About invoices: The company can issue a regular machine to get invoices 6%tax points

Link: http://pan.baidu.com/s/1eqjaovw password: fIRN

Instruction

The computer debugs USB-TTL.The power supply of this module is: 5V-26V. If the 5V power supply must be above 2A, it is recommended that 9V power.After inserting the Arduino motherboard, the power supply must provide a current of 2A.The reason is that the GPRS Shield start -up current and the maximum peak of the work require the maximum of 2A, but the USB port cannot provide such a large current, so it must be connected to the power supply equipment.Another road supply port excrement leads 3.7---4.5V power supply is suitable for lithium battery power supply.Candidate is compatible with Arduino single -chip microcomputer.TTL serial compatibility is compatible with 3.3 and 5V microcontrollers.
Make sure your SIM card is not locked
GPRS SHIELD communication is best to communicate with 19200 BPS 8-N-1 (GPRS SHIELD default automatic pairing Potter rate)

Refer to the figure below

1. Provide 2 antenna interfaces, compatible with various needs.The shipment of this product has an antenna and an antenna rotation, so it is compatible with 2 interfaces.

2. SIM900 can be connected to any two pins from Arduino from D0 to D7 through the jump cap, not only the hardware UART of D0D1.

3. DEBUG dial the switch, you can set the DEBUG port of the SIM900 to Arduino or connect to the PC through the ATMEGA8U2/FT232 on the ARDUINO to perform debug debugging.

4. The audio and microphone outlet lead.

5. multiple IO ports of the SIM900, if necessary, can use DuPont to connect to the DuPont line -specific pin reference schematic diagram and DataSheet.

6. 3 status indicator and 3 buttons -the Power ON button in it can be Power on SIM900 by reaching the software by using Arduino's pin control.

7. 3.3V and 5V automatic level compatibility, can adapt to 3.3V or 5V main control board, supports other 3.3V platform development boards such as Leaf Maple and Chipkit.

The GPRS Shield is Based on Sim900 Module from Simcom and Compatition with Arduino and ITS Clones. The GPRS Shield PROVIDES You A Wayicate USING The GSM CELL Phone Network. The Shield Allows you to the achieve SMS, MMS, GPRS and Audio Via UART bySending at Commands (GSM 07.07, 07.05 and Simcom Enhanced at Commands). The shield also has the 12 gpios, 2 pwms and an adc of the simodulele (they are all 2V8 logic ) Present onboard.

Features

§ Quad -Band 850 /900 /1800 /1900 MHz -Would Work On GSM Networks in All Countries Across the World.

§ GPRS Multi-Slot Class 10/8

§ GPRS Mobile Station Class B

§ Compliant to gsm Phase 2/2+

§ Class 4 (2 w @ 850 /900 mHz)

§ Class 1 (1 W @ 1800 / 1900MHz)

§ Control via at Commands -Standard Commands: GSM 07.07 & 07.05 | ENHANCED Commands: Simcom at Commands.

§ Short Message Service -So that you can send small amounts of data over the network (ascii or raw hexadecimal).

§ Embedded TCP/UDP Stack -Allows you to upload data to a web server.

§ RTC Support.

§ Selectable Serial Port.

§ Speaker and Headphone Jacks

§ Low Power consumption -1.5ma (Sleep Mode) (Sleep Mode)

§ Inndustric Temperature Range -40 ° C to +85 ° C

SPECIFICATIONS

Application Ideas

§ M2M (Machine 2 Machine) Applicatoions.

§ Remote Control of Appliances.

§ Remote Weather Station or A Wireless Sensor Network.

§ Vehicle Tracking System with A GPS Module.

Cautions

§ Make Sure Your Sim Card is UnLocked.

§ The product is provided as is with an insulating enclosure. Please Observe es

§ The Factory Default Setting for the GPRS Shield UART Is 19200 BPS 8-N-1.

§ Power Select -Select the Power Supply for GPRS Shield (External Power or 5V of Arduino)

§ Power Jack -Connect to External 4.8 ~ 5VDC Power Supply

§ ANTENNA Interface -Connected to External Antenna

§ Serial Port SELECT -SELECT EITHER SOFTWARE Serial Port or Hareware Serial Port to be Connected to GPRS Shield

§ Hardware Serial -D0/D1 of Arduino

§ Software Serial -D7/D8 of Arduino

§ Status LED -Tell WHETHER the POWER of SIM900 is on

§Net Light -Tell the Status About Sim900 Linking to the Net

§ UART of SIM900 -UART PINS BREAKOUT of SIM900

§ Microphone -to Answer the Phone Call

§ Speaker -To Answer the Phone Call

§ GPIO, PWM and Adc of SIM900 -GPIO, PWM and Adc Pins Breakout of Sim900

§ Power Key -Power Up and down for SIM900

Delivery list:

Module

GSM antenna
