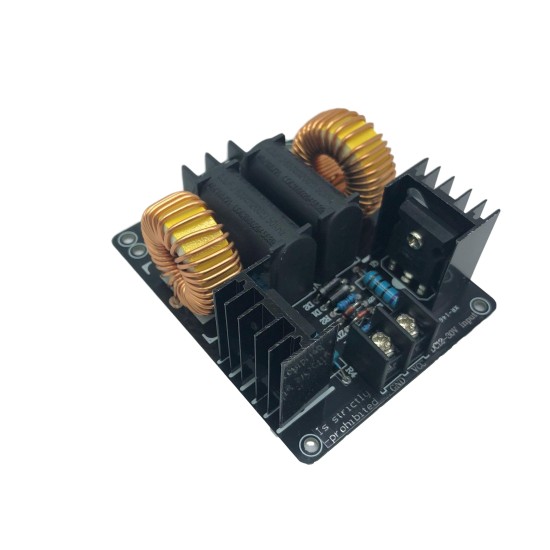

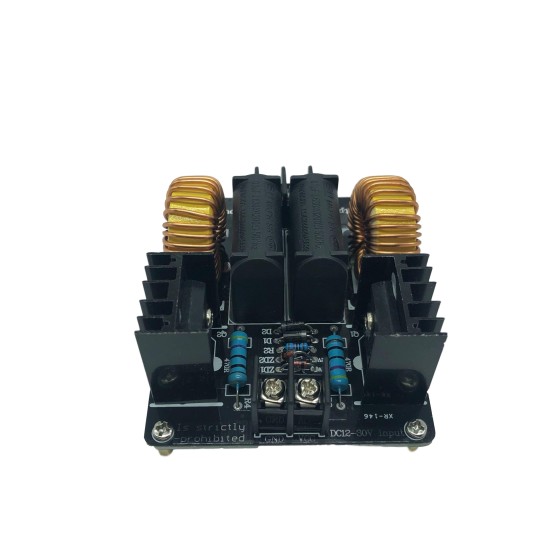

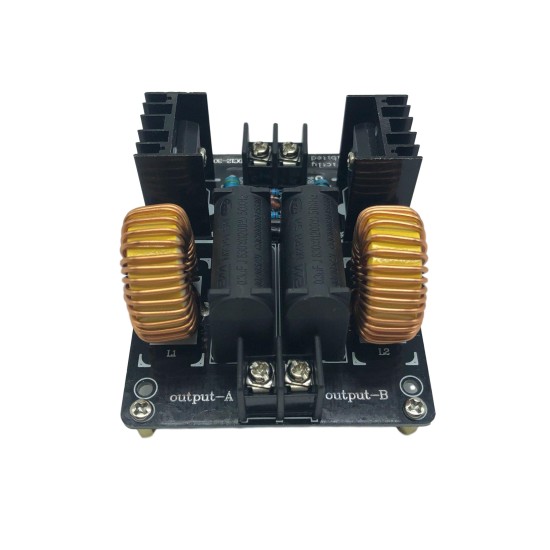

ZVS Tesla coil power no tap zvs, Tesla coil power supply high -voltage generator drive board

This driver has the following characteristics:

1. Made with a military -level 1.6mm double -sided glass fiber board

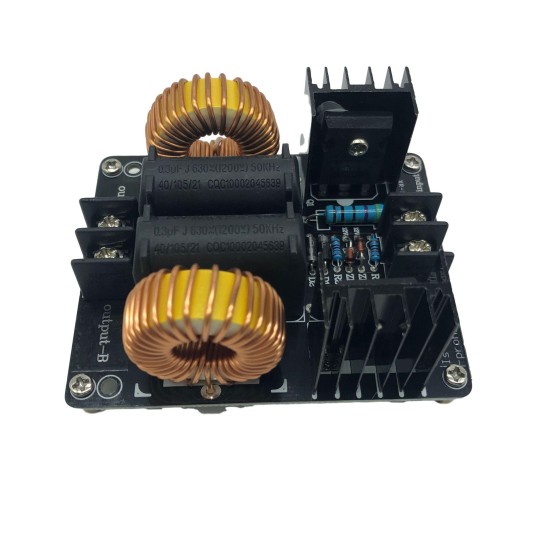

2. Adopt the large inductance customized by the factory, the consensus performance of the parameters is more stable (30mm large magnetic ring, using 1.2mm pure copper wire winding)

3. All resistance uses a five -ring tight resistance (the five -ring precision resistance error error is small, and the work is more stable)

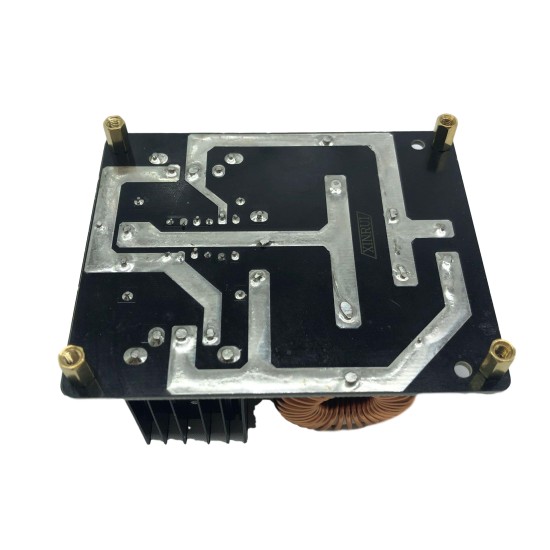

4. Excessive current on the bottom of the circuit board adds tin (can be used for inductive heating. Generally, in order to save costs, it can only be driven by high -voltage packs.Over -current is not enough

5. Generally, the 12-30V DC power supply is powered, and the current needs to be more than 10A, because the drive board is working in zero voltage switching status (Zero Voltage Switch). His efficiency is the highest.Compared, the higher the voltage, the longer the arc (I personally test the 27V/15A switching power supply can pull the arc of more than 80mm or more, it is basically not heated), and it can be used for sensory heating or quenching.At the same time, the greater the fever, it is recommended to heat up 2/3 of the diameter of the intellectual objects exceeding the coil.

Weight: 175 grams
