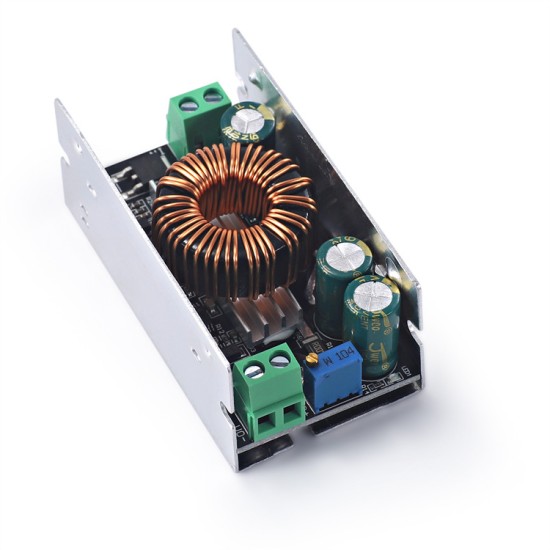

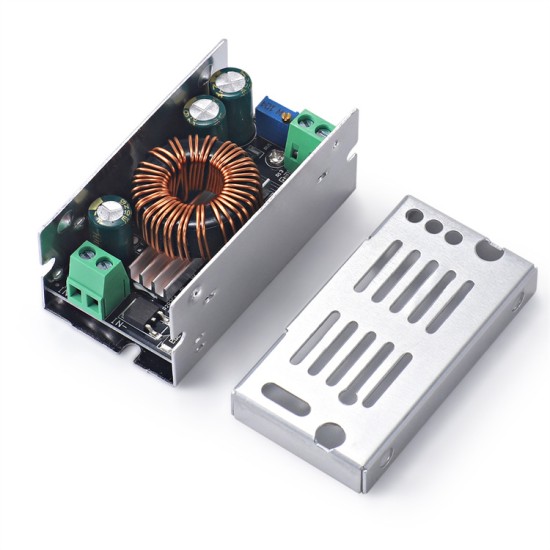

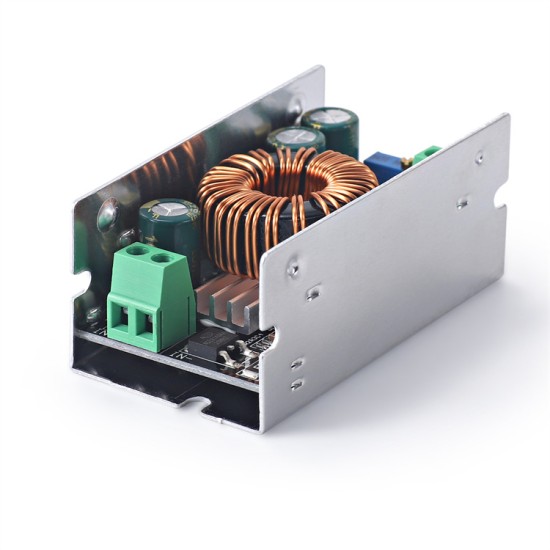

DC-DC High voltage Anti-voltage 90V72V6036V can adjust the voltage pressure supply module Electric vehicle carrier voltage voltage power supply

Introduction to synchronization rectification technology:

Synchronous rectification is a new technology that uses a special power MOSFET with extremely low -state resistance to replace the rectifier diode to reduce the rectification loss.It can greatly improve the efficiency of the DC/DC converter and there is no dead zone voltage caused by the voltage of the Schottki barrier.The power MOSFET is a voltage control device, which has a linear relationship when it is turned on.When using the power MOSFET as a rectifier, the gate voltage is required to be synchronized with the phase of the rectifier voltage to complete the rectifier function, so it is called synchronous rectifier.Synchronous rectification technology is to greatly reduce the rectifier loss of the output end of the switching power supply, thereby improving the conversion efficiency and reducing the heat supply itself.

Module parameter

Module nature: Synchronous rectangular non -isolation boost module

Input voltage: 10-90VDC

Output voltage: 1.5-60VDC (applications suitable for input voltage higher than the output voltage cannot be increased))

Output current: maximum 6A (please use when the high voltage output is used, the module temperature exceeds 65 degrees, you need to increase the heat dissipation)

Maximum power: 100W (the maximum current at low voltage output is 6A. The most at high voltage output is 100W)

Working frequency: 180kHz

Conversion efficiency: 97.5% (typical value)

Enter anti -countercotiation: Yes

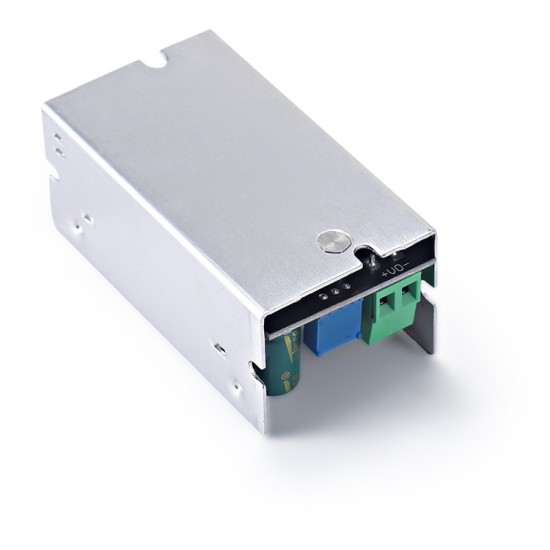

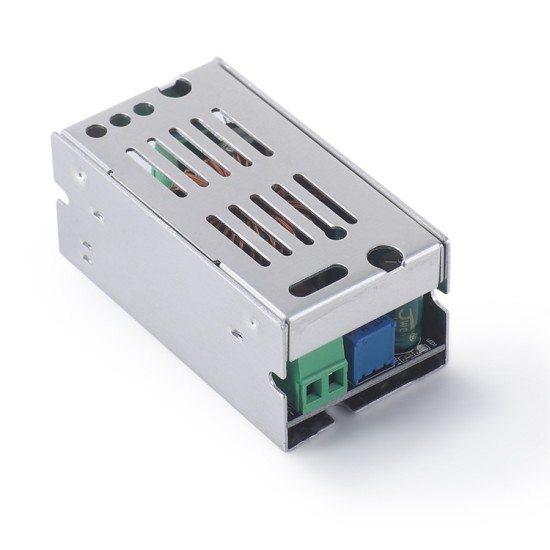

Aluminum shell size: 70mm*38mm*31mm

Weight: about 70g
