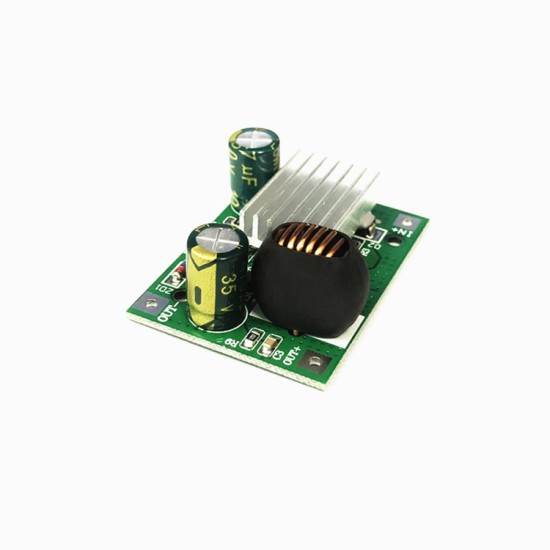

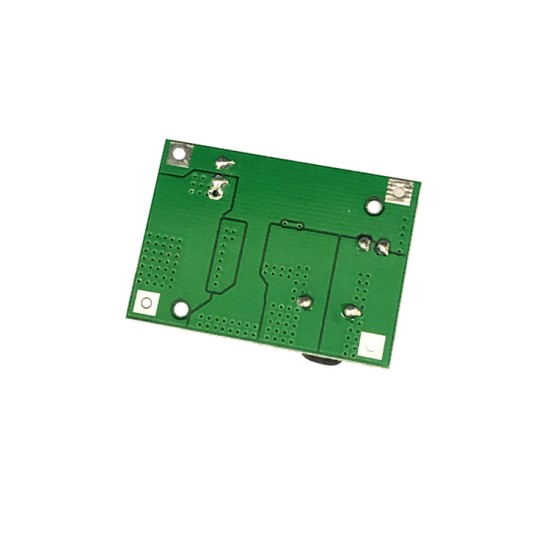

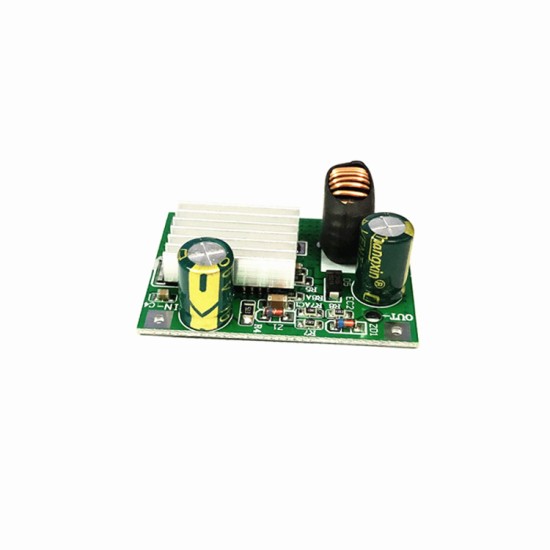

DC9-120V Anti-voltage power supply module 100V96V84V72V24V to 5V12V large current 3A high voltage resistance

In+is the input positive electrode, IN-is the input negative electrode
OUT+is the output positive electrode, OUT- is the output negative electrode

120V is the input capacitor of the input capacitance of 160V. 90V is 100V.

DC-DC non-isolation antihypertensive power module high voltage input antihypertensive board

Wide input voltage: 9V-90V

The minimum voltage difference between the input voltage and the output voltage 4V (when the output is 5V, the input is DC9V-90V, the input voltage is DC16V-90V when the output 12V, and the input voltage is DC30-90V when the output voltage is 24V))

Output voltage 24V/12V/5V optional (please contact customer customization for other voltages)

The largest output current is 3A (that is, the constant current value of 3A, when the custom voltage is greater than 12V, the output current is less than 3A, the power is not recommended to exceed 30W, 12V and 5V can reach 3A, 24V is 2A))

Typical working frequency: 140kHz

High efficiency: up to 95%(the smaller the pressure difference, the higher the efficiency)

Light load reduction, improve light load efficiency

Small machine current

Built -in temperature, overcurrent, short -circuit protection

Built -in soft start

Evergrande and constant current output

Work temperature: Industrial grade (-40 ° C to+85 ° C)

Module volume: 42*30*17mm

How to use:

1. First connect the connection line between the module and the power supply, and then power.Remember!Remember!(If the input terminal is charged, it is prone to ignition, especially when the input power supply voltage is high or even the pad of the module).

2. After the appropriate power supply is used, whether the output voltage of the output voltage of the module with a multimeter or voltage gauge is used as the voltage required by the device.

3. Electricity equipment or (load) is connected to the output of the module.
