PIC K150 single -chip microcomputer programmer writer downloader

material:

User data download address: http://pan.baidu.com/share/link? Shareid = 3469253915 & uk = 2302102993

Learning data download address: http://pan.baidu.com/share/link? Shareid = 3489856120 & uk = 2302102993

Use instructions: file:/// d:/documents/downloads/k150%e5%8d%95%e7%87%e6C%BA%BC%E7%96%E7%8b%E5%8B%E5%99%A8%E4%BD%BF%E7%94%A8%E8%AF%B4%E6%98%8E.PDF (Copy to the browser open)

Product introduction:

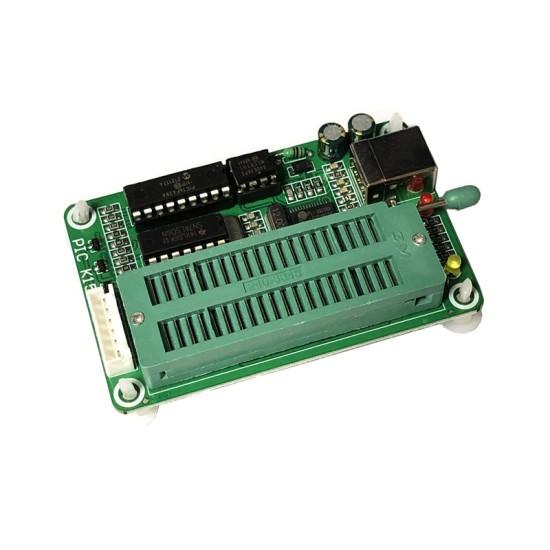

The K150 is a low -cost PIC programmer that supports most popular PIC chips to burn, read, and encrypts the functions. Use high -speed USB communication methods.The average is PicStart+3-5 times) Full automatic writing verification; equipped with a DIP burn seat with 40PIN, can directly burn 8pin-40pin DIP chip;; Software is compatible with Windows98 and Windows2000/NT, Windows XP/Windows7 and other operating systems; the software will continue to upgrade with newly launched devices with PIC.The main control chip retains DIP packaging and seat!(Note: Some manufacturers of similar programmer main control chips are used for chips, which causes a lot of trouble for future upgrades! It can not even upgrade, our products provide lifelong upgrade services)

The following is the programmer supporting the PIC single -chip model before buying whether it contains the single -chip microcomputer model you use: the model of the play is to use the ICSP interface to burn online online

10 series:
PIC10F200* PIC10F202* PIC10F204* PIC10F206*
PIC10F220* PIC10F222*

12C series:
Pic12c508 pic12c508a pic12c509 pic12c509a
Pic12c671 pic12c672 pic12ce518 pic12ce519
Pic12ce673 pic12ce674

12F series: h
Pic12f509 pic12f629 pic12f675 pic12f683

16C series:
PIC16C505 PIC16C554 PIC16C558 PIC16C61
PIC16C62 PIC16C62A PIC16C62B PIC16C63
PIC16C63A PIC 16C64 PIC16C64A PIC16C65
PIC16C65A PIC16C65B PIC16c66 PIC16C67

PIC16C620 PIC16C620A PIC16C621 PIC16C621A

PIC16C622 PIC16C622A PIC16C71 PIC16C71A

PIC16C72 PIC16C72A PIC16C73 PIC16C73A

PIC16C73B PIC16C74 PIC16C74A PIC16C74B

PIC16C76 PIC16C77 PIC16C710 PIC16C16C711

PIC16C712 PIC16C716 PIC16C745 PIC16C765

PIC16C773 PIC16C774 PIC16C84

16F series:
PIC16F54 PIC16F57* PIC16F59* PIC16F627

PIC16F627A PIC16F630 PIC16F631 PIC16F648A

PIC16F676 PIC16F677 PIC16F684 PIC16F685*
PIC16F687* PIC16F688 PIC16F689* PIC16F690*

Pic16F72 PIC16F73 PIC16F76 PIC16F77

Pic16f737 pic16f747 pic16f767 pic16f777

PIC16F83 PIC16F84 PIC16F84A PIC16F87

PIC16F88 PIC16F818 PIC16F819 PIC16F870

PIC16F871 PIC16F872 PIC16F873 PIC16F873A

PIC16F874 PIC16F874A PIC16F876 PIC16F876A

PIC16F877 PIC16F877A PIC16F913 PIC16F914

Pic16f917

18 series:
PIC18F242 PIC18F248 PIC18F252 PIC18F258

PIC18F442 PIC18F448 PIC18F452 PIC18F458

PIC18F1220 PIC18F1320 PIC18F2220 PIC18F2320
PIC18F2321 PIC18F2410 PIC18F2331 PIC18F2450

PIC18F2455 PIC18F2480 PIC18F2510 PIC18F2520

PIC18F2550 PIC18F2580 PIC18F2431 PIC18F2585

PIC18F2610 PIC18F2620 PIC18F2680 PIC18F4220

PIC18F4320 PIC18F6525 PIC18F6621 PIC18F8525

PIC18F8621 PIC18F2331 PIC18F2431 PIC18F4331

PIC18F4431 PIC18F2455 PIC18F2550 PIC18F4455

PIC18F4580 PIC18F2580 PIC18F2420 PIC18F2520

PIC18F2620 PIC18F6520 PIC18F6620 PIC18F6720

Pic18f6585 ...

Features:

1. Support the functions of burning, reading, and encryption of most popular PIC chips!
2. No external power supply, communication and power supply only one USB printing line is completed without any cable.
2. The burning speed is much faster than PicStartplus.
3. It can easily read the content of the chip program area.
4. Fully automatic writing verification.
5. Comprehensive information prompts to let users understand the status of work clearly.
6. Equipped with a 40PIN ZIF burning seat, you can directly burn 8 to 40 PIC microcontrollers. The patch can use ICSP to burn or convert a converting seat online.
7. Chip other than 8pin40 PIN can be downloaded directly online through the ICSP output.
8. Compatible with Windows98 and Windows2000/NT, Windows XP/Windows 7 and other operating systems.
9. Writing software is simple and easy to use instructions.

Use the SMT machine patch to produce in batches. Before shipment, each one is tested strictly and then packed and shipped with a anti -static bag. The quality is guaranteed.

After many revisions, it has greatly improved the stability. Now it is 41 yuan/one benefit civil price to vigorously promote it. If you have n’t bought it, you can quickly start, and you can earn it.

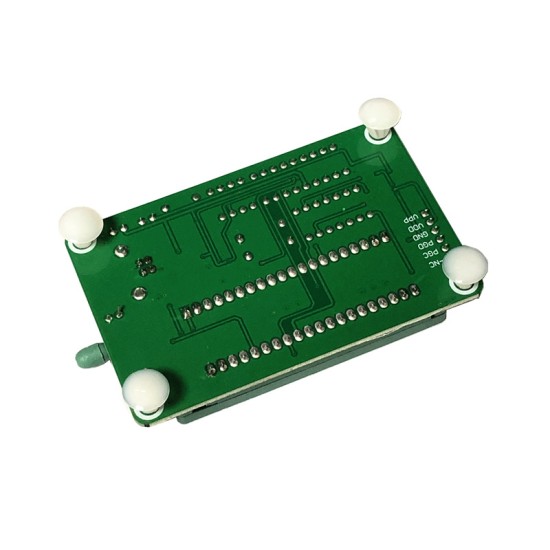

The programmer reserves the ICSP interface, which is convenient for online burns without frequent inserting chips.

With a power indicator and programming indicator.

The programmer increases the self -recovery fuse, fully protects the programmer's hardware and the hardware and the programmers

Your precious computer USB.

Buy the K150 programmer to distribute high -quality USB cables (with shielding and anti -drying magnetic ring).

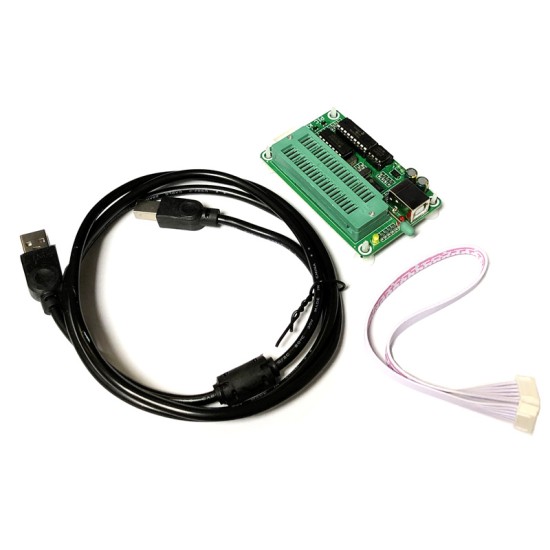

Delivery list:

1. One finished product finished product

2. High -quality USB line

3. One ICSP line line

3. 4 circuit board pillars (shipping fashion is good on the programmer)

4. Manual. Drive and software after purchasing online transmission
