Name: Industrial Control Development Board STM32F407Vet6 Learning 485 Double CAN Ethernet STM32
Brand: Any Brand
Price: 21.50 USD
Availability: InStock

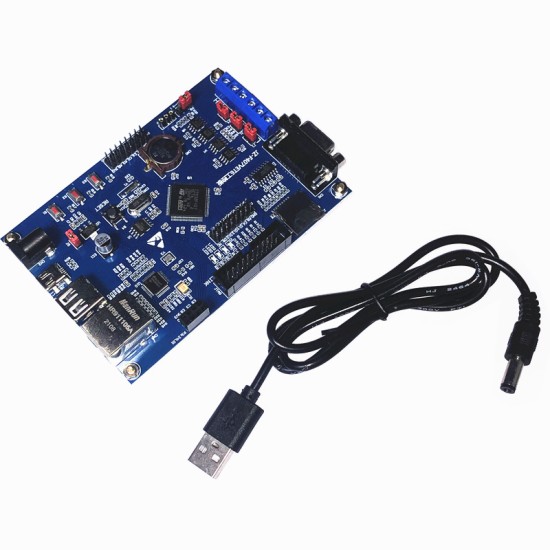

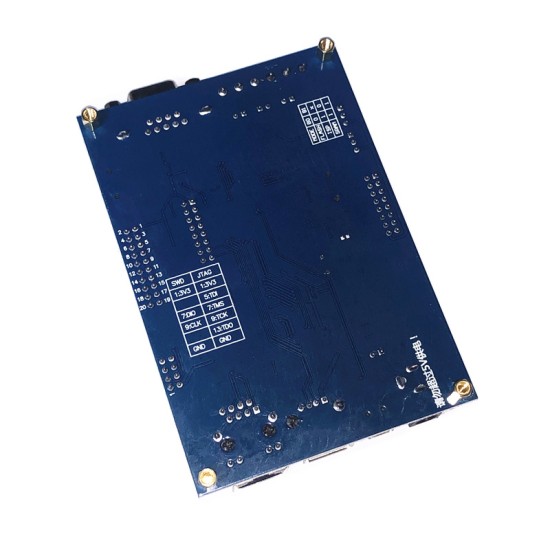

Industrial Control Development Board STM32F407Vet6 Learning 485 Double CAN Ethernet STM32

The development board adopts STM32F407Vet6 chip as the main controller. The M4 super kernel is extended with 1 RS232 interface, 1 RS485 interface, 2 -channel CAN interface, 1 Ethernet interface, 1 USB HOST interface, 1 USB Device interface interface, Three user keys, three user indicators.It is very suitable for IoT application development, gateway server development, bus communication development and industrial control.

Main control MCU STM32F407Vet6 -lqfp100
Ethernet chip DP83848-LQFP48
Serial port 1 RS232 interface serial port 1 PA9 PA10
RS485 interface 1 RS485 interface serial port 2 PD5 PD6
CAN interface 2 CAN interface connecting chip PD0 PD1/ PB5 PB6
TF card 9 -pin small card, controlled by PC and PD pins together
Wireless interface P3 leads the NRF24L01 interface
USB interface, a master usb, one from USB
Storage sets of 24C02 and 25Q64 storage chips
The temperature sensor interface leads to DS18B20 sensor interface
JTAG interface corresponds to Jlink's JTAG
Key K1, K2, K3 three user keys
Three user indicators of LED1, LED2, LED2, LED2, LED2, LED2, LED2, LED3

Product Attributes
Brand	none
