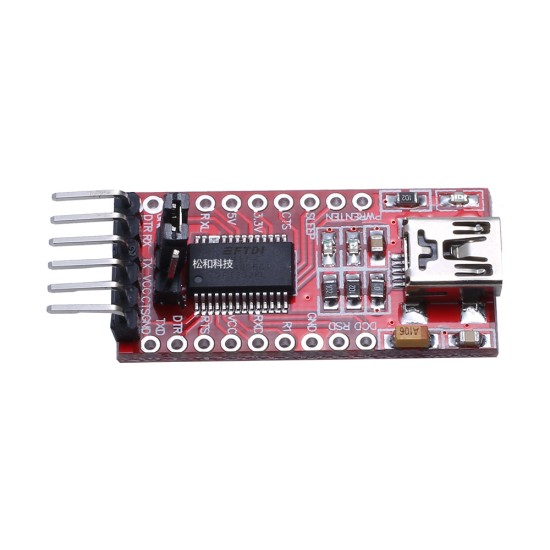

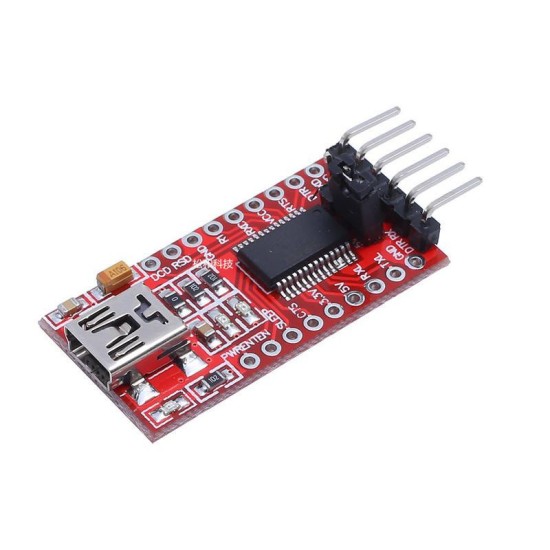

USB to TTL supports 3.3V 5V FT232RL module dedicated download line mini interface

The definition of 6 pins is: DTR RX TX VCC CTS GND

Driver download address:

http://www.ftdichip.com/ftdrivers.htm

FT232RL USB to the Ranning Module USB to TTL level Arduino

The king in the USB-RS232-TTL line!

Special offer!Intersection

This product uses a new design and uses the best FT232RL chip of USB2.0 to convert USB into a serial port.Have two power versions.

Each module adopts the spontaneous self -collection 10W byte test before leaving the factory!Intersection

PCB board size: 16mm multiplied by 34mm

【FT232R Introduction】
With the development of computer technology, the mouth and serial port slowly disappeared on the PC, and now there are few desktop machines.But for engineers, the mouth and serial port are essential interfaces, especially serial ports.For computers without serial ports, the most convenient solution is to use the USB conversation chip to virtue of a serial port. Many manufacturers have such chips, such as Silicon Labs's CP210X series, TI's TUSB3410, Nanjing Qinheng's CH34X series, and the Ch34X series of Nanjing Qinheng.FTDI's FT232 series, Prolific's PL230X series, ARK3116, etc.From the perspective of stability, the FT232 series is the most reliable. You can use it to make peace of debug programs without worrying about the situation of the blue screen.
The FT232R chip is a single -chip solution. Generally, the peripherals are basically not required. The EEPROMs that are connected to the crystal, the USB matching resistance, and the product information have been integrated inside.FT232R also has some more useful features. For specific details, please refer to the FT232R data manual.

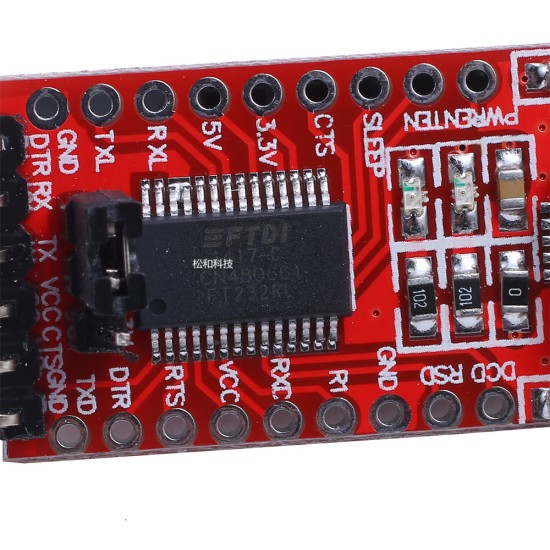

【Hardware Introduction】
· Use FTDI's FT232RL chip;
· Lead all the signal ports of the FT232RL chip, the TTL/CMOS level;
· RXD/TXD receiving and receiving communication indicator;
· USB power supply, optional 5V or 3.3V interface level (if other levels are required, you can directly provide target voltage on VCC and GND pins)
