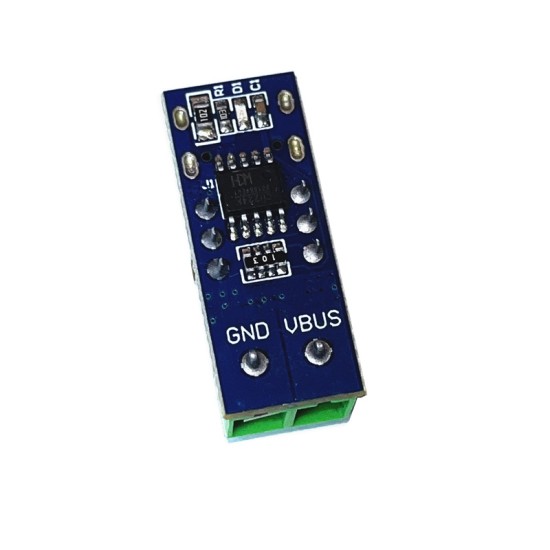

Name: Deception module QC/PD fast charge test board can adjust voltage 5V/9V/12V/15V/20V dial adjustment adjustment
Brand: Any Brand
Price: 0.67 USD
Availability: InStock

Deception module QC/PD fast charge test board can adjust voltage 5V/9V/12V/15V/20V dial adjustment adjustment

Features

PD deception device supports PD3.0/2.0, BC1.2 and other boosting fast charging protocols, up to 10OW power, and providing functions such as over temperature and over pressure protection.The voltage can be adjusted by dialing switching. The output voltage up to 20V supports PD3.0/2.0, BC1.2 and other fast charge protocols to support USB Type-CPD, support positive and negative switching and automatic switching support 4V to 22V input voltage

Product parameters:

Input voltage: Support 4V to 22V

Output voltage: maximum 20V

Interface: Support USB Type-C PD

Power: maximum support 100W

Product size: 11*25.7mm

Instructions for use:

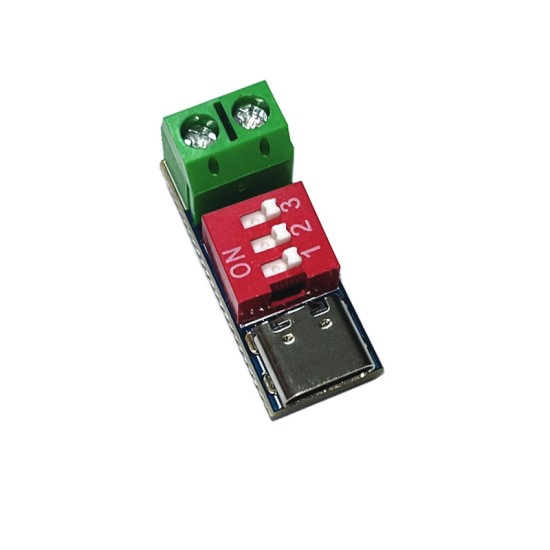

CFG1 corresponding dial switch 1

CFG2 corresponding dial switch 2

CFG3 corresponding dial switch 3

Dial to the bottom as 1, and the upper part is the 0 -dial switch. The corresponding voltage can be requested according to the charger protocol

Product Attributes
Brand	Other/Other
Output Power	0.1
