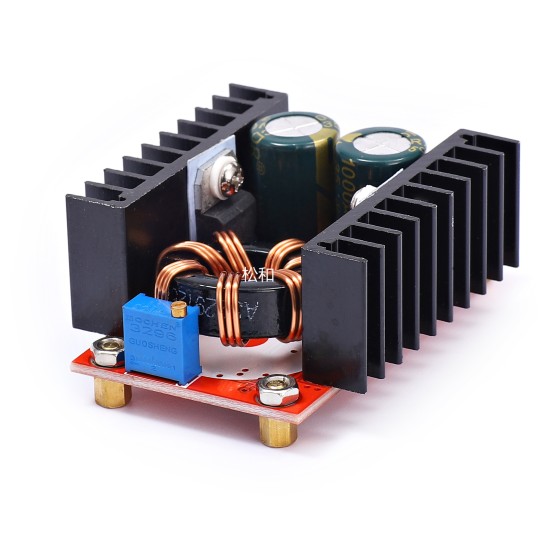

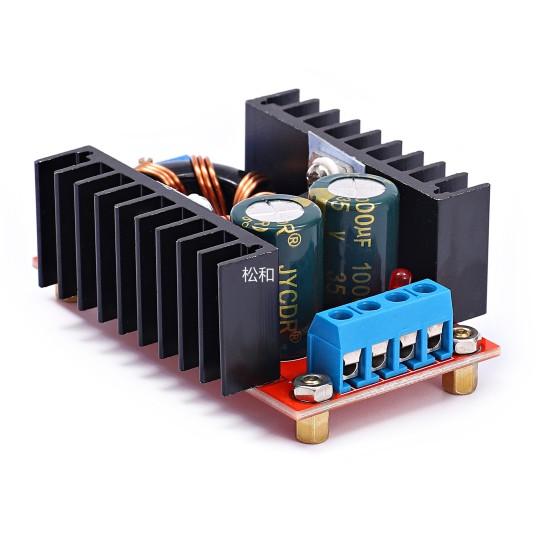

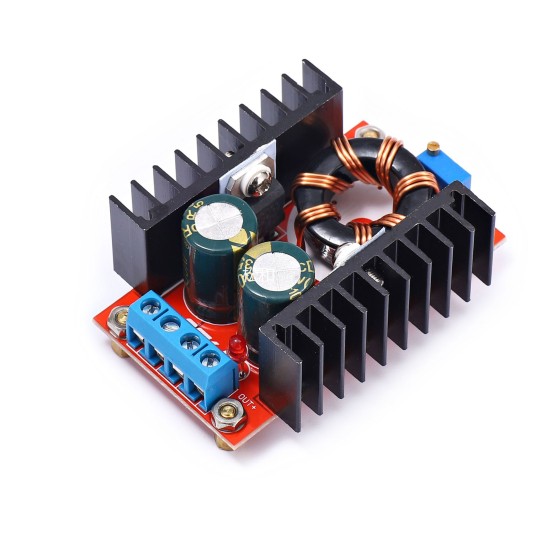

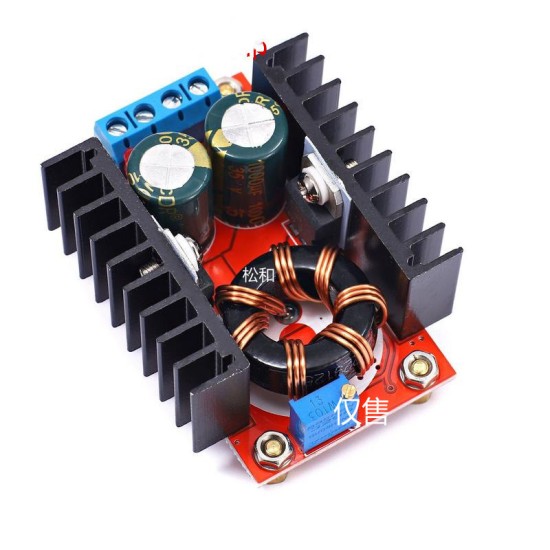

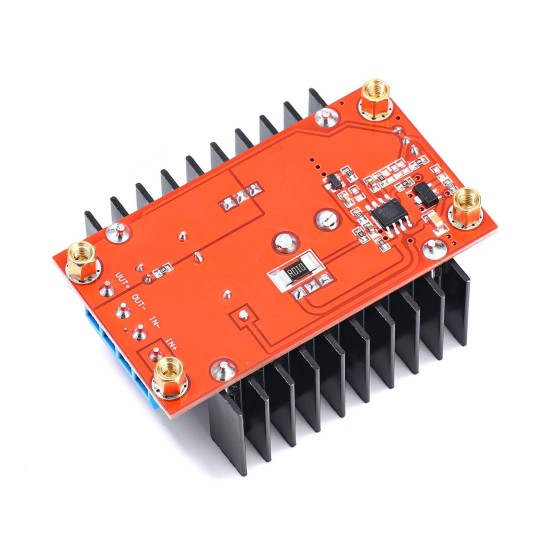

Name: 150W booster module DC-DC car notebook mobile power supply 10-32V to 12-35V adjustable
Brand: Any Brand
Price: 1.51 USD
Availability: InStock

150W booster module DC-DC car notebook mobile power supply 10-32V to 12-35V adjustable

☆ Basic attributes ☆

Module nature

Non -isolation boost module

Rectification method

Non -synchronous rectification

Input voltage

10V-32V

Output voltage

12V-35V

Output current

6A (the largest)

Conversion efficiency

94%(the highest)

Switching frequency

65kHz

Output ripple

150mv (20m bandwidth)

Load adjustment rate

± 0.5%

Voltage adjustment

± 2.5%

Working temperature

-40 ℃ to +85 ℃

size

65*56.5*23 (long*width*height) (mm)

Features:
