XL4015E 5A 4 ~ 38V high power efficiency DC-DC adjustable antihypertensive module low ripple far exceeds 2596

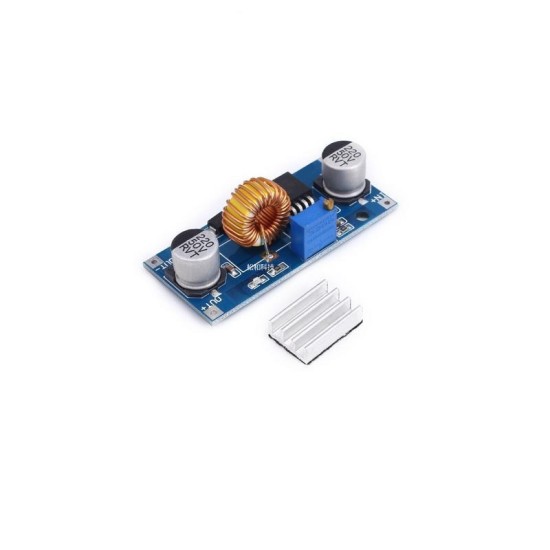

Module Highlight: 5A high -power high -efficiency low -grained strap power indicator will be given radiator!

Module performance and characteristics:

Module nature: non -isolation antihypertensive module (buck)

Input voltage: 4-38V (please try not to exceed 38V as much as possible)

Output voltage: 1.25-36V continuous adjustment

Output current: 0-5A

Output power: 75W

Work temperature: -40 ~+85 degrees

Working frequency: 180kHz

Conversion efficiency: up to 96%

Load adjustment rate: s (i) ≤0.8%(input 24V, output 12V, the load is measured from 1 ~ 4.5A)

Voltage adjustment rate: s (u) ≤0.8%(output 12V, at 4A, the voltage is measured from 18 ~ 32V)

Power indicator: Yes

Short -circuit protection: Yes (limited current 8A)

Super temperature protection: Yes (automatically turn off the output after ultra -temperature)

Enter anti -connection protection: none, (if you need to enter a large current diode in the input)

Installation method: 2 3mm filaments

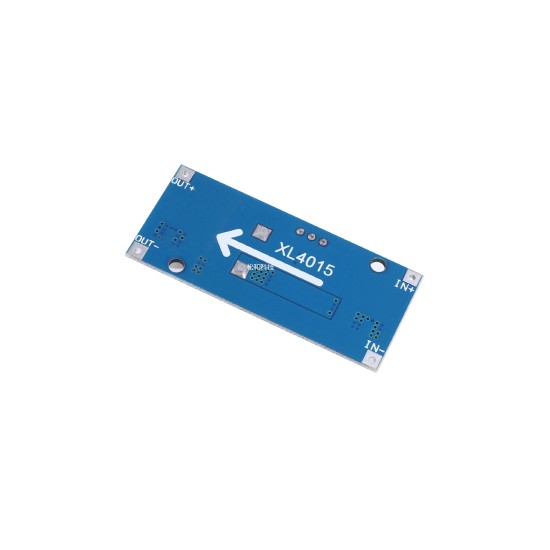

Wiring method: welding, V-in is input, V-OUT is output

Module size: 54mm wide 23mm height 15mm
