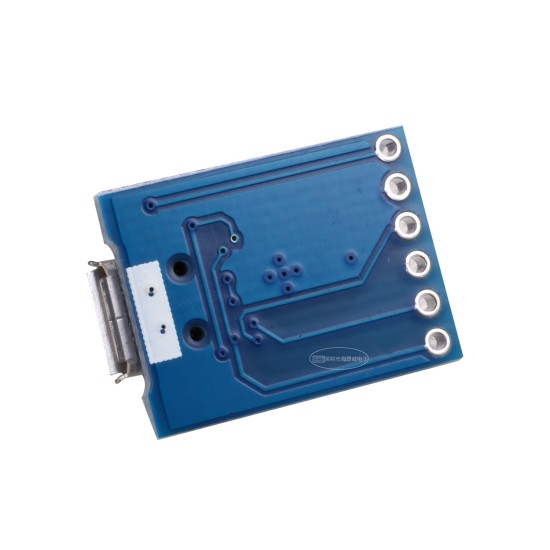

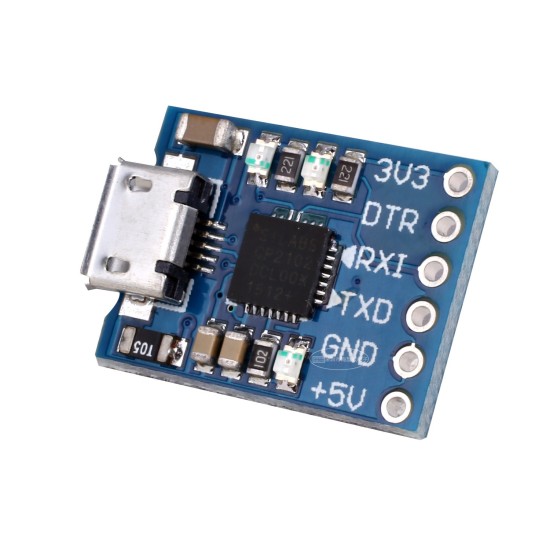

Micro USB interface CP2102 module USB to TTL USB to serial port UART STC downloader

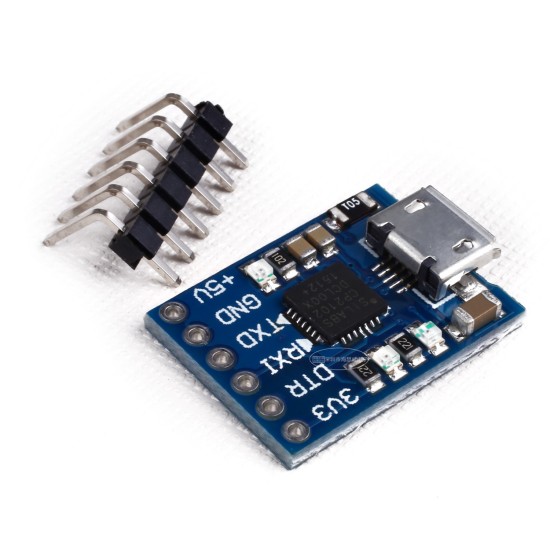

Send needle but not welded

CP2102 module USB to TTL USB to dial UART STC downloader

CJMCU-CP2102 has a high integration, built-in USB2.0 full-speed function controller, USB transceiver, crystal oscillator, EEPROM and asynchronous serial data bus (UART). It supports the full-functional signal of the modem without any external USB device.CJMCU-CP2102 is similar to the working principle of other USB-UART conversion circuits. The USB port of the PC is virtual into a COM port through the driver to achieve the purpose of expansion.

CJMCU-Pose-module Communication USB to TTL module 5V power output TTL level CP2102 kernel CJMCU-CP2102 is a highly integrated USB-UART bridge. It can provide a minimum component and PCB space to achieve the simple solution of RS232 to USB.plan.To put it simply: users use CJMCU-CP2102 to convert the USB interface with the RS232 interface.
Module description:
1. 2102 chip, the COM port is generated after installing the driver.
2. Connect the standard Micro MINI-USB cable input to connect to the computer USB interface, with two power supply output with 3.3V and 5V voltage
3. Endorphy state indicator, send and receiving indicator, and the state indicator light will often be on after the driver is installed correctly.
4. Support the baud rate between 300bps ~ 1Mbps
5. Communication format support: 1) 5,6,7,8 digits; 2) support 1,1.5,2 stop bits; 3) ODD, EVEN, Mark, Space, None verification
6. Support operating system: Windows 8.1/7/Vista/XP/98, Mac OS-X/OS-9, Linux, Linux, Linux
7. The USB seat interface is Micro Mini-USB
8. Patch elements are welded with regular companies, stable quality, beautiful appearance
9. With DTR trigger signal output, you can directly download the ARDUINO motherboard download program communication to Arduino Pro mini atmega328p.
10. Module size: 16mm*20mm super small.
