Pro MINI improved version atmega328p 3.3V/8M electronic building block

From 2022, all ATMEL chips have adopted domestic chips. Please know

Software download website: http://www.arduino.cc/

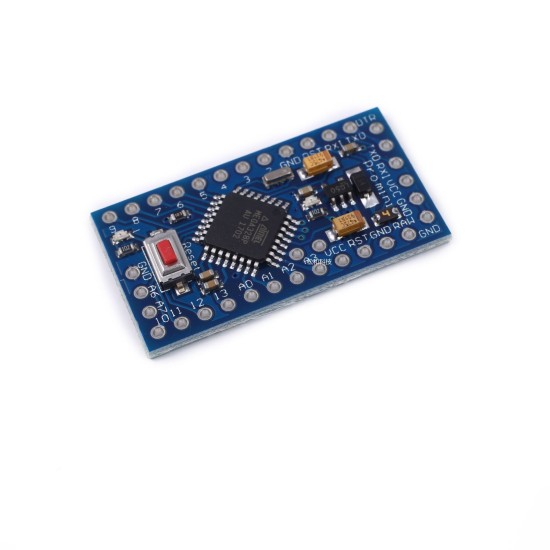

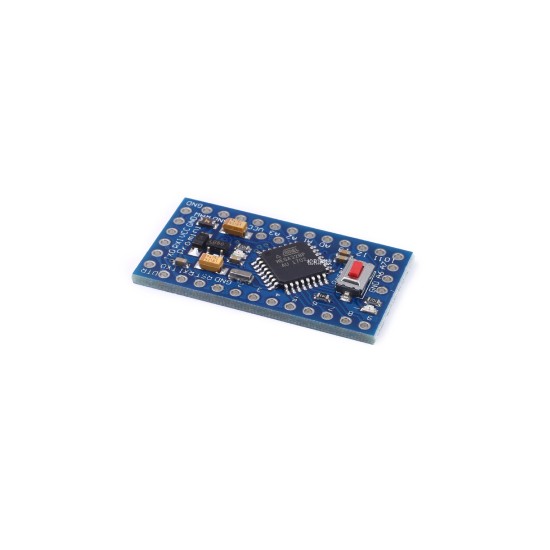

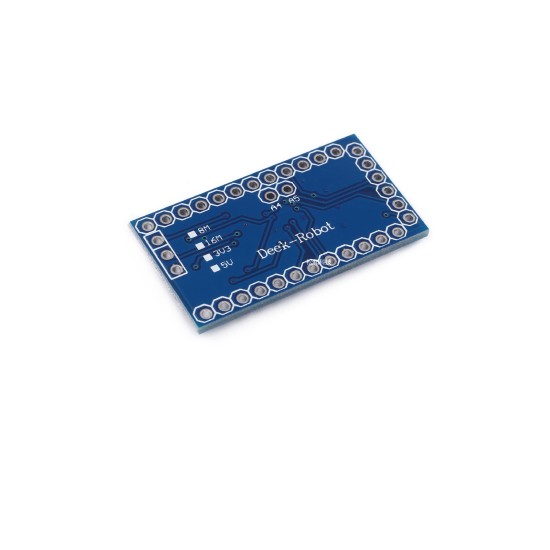

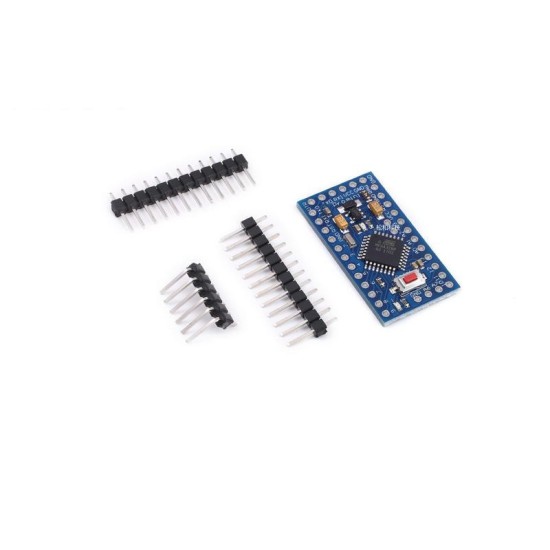

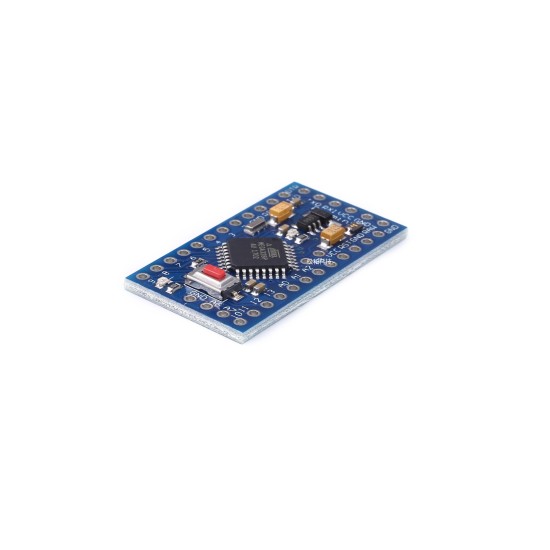

This is a professional version of MINI Pro is a micro -controller circuit board that has recorded Bootloader for it. No user needs to buy an ISP burning recorder for burning to facilitate users to use.It has 14 digital input/output pins (6 of which can be used as PWM output), 8 analog inputs (adding two simulation input ports of A6 and A7 to A7), an 8MHz resonator, one reset button, installation button, installationThe hole is attracted to the feet.

Technical parameters:

1. 14 digital input/output port RX, TX, D2 ~ D13,
2. 8 analog input ports A0 ~ A7
3. 1 pair of TTL level serial port receiving port RX/TX
4.6 PWM ports, D3, D5, D6, D9, D10, D11
5.Using Atmel Atmega328p-AU single-chip machine
6. Support serial port download
7.Support external 3.5V ~ 12V DC power supply power supply (using RAW and GND power port)
8.Support 9V battery power supply
9. Clock frequency 8MHz
10. Size: 33.3*18.0 (mm)

Product Attributes
Brand	Other/Other
Model	3.3V/8M
