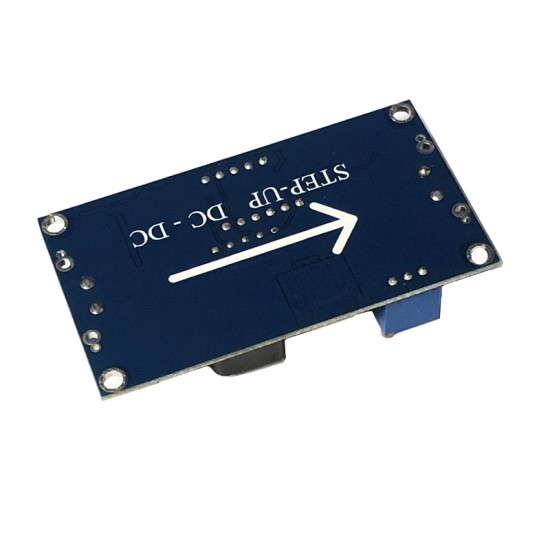

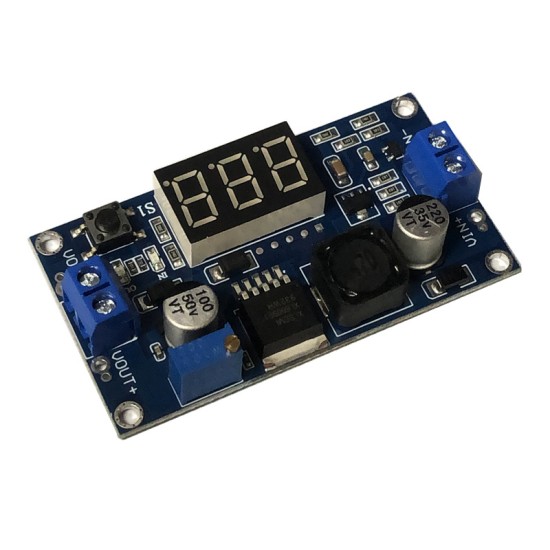

XL6009 DC-DC adjustable boost module 4.5-32V liter 5-35V number show

Module performance and characteristics:

XTW6009 is a high -performance boost (BOOST) module of a 4A switch current.The module uses the XL6009E1 of the second -generation high -frequency switch technology as the core chip, and its performance far exceeds the LM2577 of the first -generation technology.The cost of XL6009 boost module is lower and the performance is more outstanding, and the LM2577 module is about to be eliminated.

● Ultra -width input voltage 3V ~ 32V (normal boost work below 5V, but digital tube does not work), the best working voltage range is 5 ~ 32V;

● Ultra -width rising voltage output voltage 5V ~ 35V;

● Built -in 4A high -efficiency MOSFET switch tube, making the efficiency up to 94%; (LM2577 current is only 3A)

● The ultra -high switching frequency is 400kHz, which can achieve very good results with a small -capacity filter capacitor. The ripples are smaller and the volume is smaller.(LM2577 frequency is only 50kHz)

● Bring a power indicator light

● The voltage meter is displayed and the voltage can be calibrated by itself.A more advanced voltage microprocessor is used, the voltage meter error is ± 0.05V, and the range is 0 ~ 35V.(Note: To ensure the accuracy of the voltage meter, please ensure that the input voltage is above 4.5V)

● Touch the button to switch the measuring input or output voltage, and there are indicator lights show which voltage is being measured, and the settings are saved, even if the power is turned off and then turned on.

● The voltage table can be closed. When you do not need to display it, you can easily implement it.

● With the wiring terminal, it can be easily used without a soldering iron, and the welding line wiring point is retained.

● Have the function of overheating and short circuit protection

● Size 60*35*13.5mm

● Weight 24g

Technical parameters:

Module nature: non -isolation voltage (boost)

Rectification method: non -synchronous rectification

Input current: 4A (maximum), empty load 18mA (5V input, 8V output, empty load less than 18mA. The higher the voltage, the larger the air load current.)

Conversion efficiency: (the larger the pressure difference, the lower the efficiency)

Switch frequency: 400kHz

Output ripples: 50mV (the higher the voltage, the larger the current, the larger the ripple)

Load adjustment rate: ± 0.5%

Voltage adjustment rate: ± 0.5%

Work temperature: -40 ℃ ~ +85 ℃

Dimensions: 43mm * 21mm * 14mm (length * width * height)

In+: Enter the positive pole

IN-: Enter negative electrode

Out+: Output positive pole

Out-: output negative electrode

Test comparison sample reference:

Enter 5V output 12V 0.8A 9.6W

Input 7.4V output 12V 1.5A 18W

Input 12V output 15V 2A 30W

Input 12V output 16V 2A 32W

Input 12V output 18V 1.6A 28.8W

Input 12V output 19V 1.5A 28.5W

Input 12V output 24V 1 A 24W

Input 3V output 12V 0.4A 4.8W

Self -calibration method of plate voltage meter:

1. When the output voltage is displayed, the right side of the right side is loosen after 2 seconds.When the input voltage is input, the right side of the right side is loosened after 2 seconds, and the voltage meter and input voltage indicator light "in" flickered synchronously. At this time, enter the input voltage adjustment mode;

2. Touch the right button on the right, increase the voltage one unit, touch the left button gently, and reduce the voltage by one unit; because the voltage value of a unit is less than 0.1V, you need to press it 1-5 times in a row to see the voltage gauge to see the voltage gauge continuously to see the voltage gauge.The change has been 0.1V, and the specific continuous keys depend on the voltage value of the currently displayed several times. The higher the current display voltage, the fewer the number of movements.

3. After the voltage adjustment is completed, press the right button on the right and loosen it after 2 seconds. At this time, you can exit the voltage calibration mode. All parameter settings are automatically powered off and saved.

Note: You only need to calibrate this method of adjustment to get accurate voltage values ​​on the entire voltage range. This function is designed to meet your higher accuracy requirements. Please use it with confidence.

Scope of application:

This module can be applied in the field of voltage voltage of the output voltage higher than the input voltage, such as batteries, power transformers, DIY adjustable voltage voltage power supply, 24V vehicle pen, industrial equipment reduced voltage, 9 -dwelling 12V, 12V to 18V, 12V to 18V, 12V to 18V, 12V to 18V, 12V to 18V, 12V to 18V, 12V to 18V, 12V to 18V, 12V to 18V, 12V to 18V.18V to 24V and so on.
