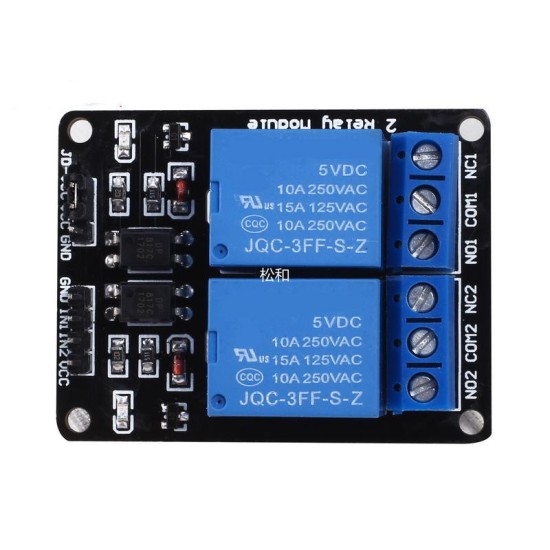

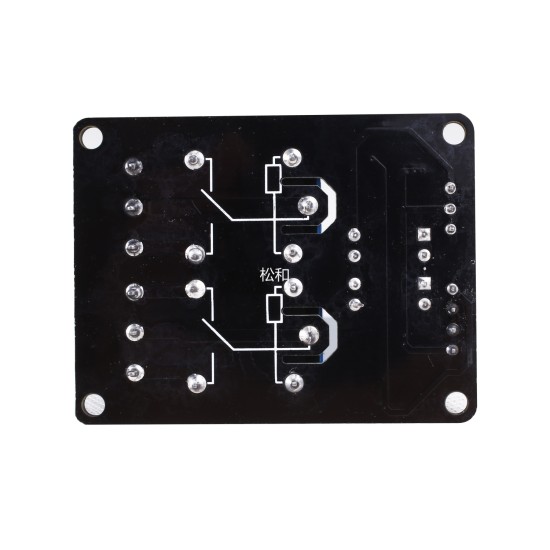

2 Road relay module 5V 12V 24V with optocoupler optocoupler relay expansion board single chip microcomputer development board

2 Banding optocoupler relay module

Information download address (Copy to the browser and open it):
http://pan.baidu.com/share/link?shareid=555653&UK=36584647800

Module parameters:

1. Size: 50.6mm (long)*38.8mm (width)*19.3mm (high)
2. Weight: 30g
3.PCB color: black
4. There are 4 fixed screw holes around the board with a diameter of 3.1mm in diameter, which is convenient for installation and fixing
5. Single knife double throw.A public end, a frequent start, and one often closed
6. Optical isolation, good anti -interference
7. Low -level absorption and high level release.The status indicator lights when inhalation, and the status indicator is destroyed when releasing
8.VCC is the system power supply, JD_VCC is a relay power supply.Send 5V relay by default, plug in the jump cap
9. Maximum output: DC 30V/10A, AC 250V/10A

Wiring description:

VCC: System power positive pole
GND: system power negative electrode
IN1-in2: Relay control port

Product Attributes
Brand	none
Model	2 Road relay module
Number of channels	1
Output type	Power module
