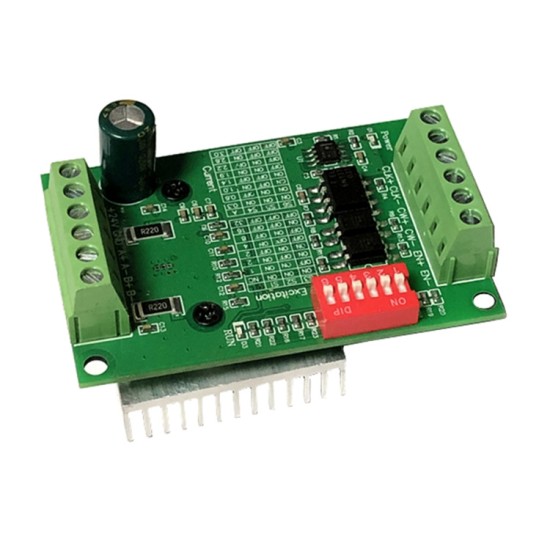

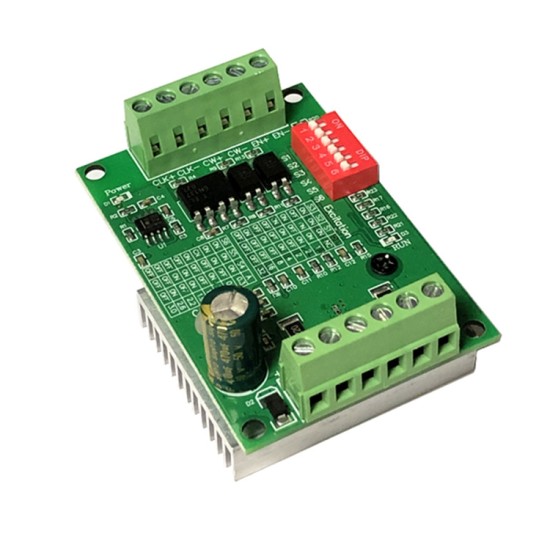

TB6560 3A Step Motor Drive Step Motor Drive Single Single Controller 10 -speed current

Manual wiring diagram download link: http://pan.baidu.com/s/1c0b6xdy

This product has been fully tested, and has been applied to equipment such as sculptors, patch machines, etc. The quality assurance can be used with confidence.

1) Work voltage DC 10V-35V.It is recommended to use the switch power supply DC24V power supply.

2) Use 6n137 high -speed light ravioli to ensure that high -speed high -speed strolls.

3) The new original chip of Toshiba TB6560AHQ has a low voltage turnover, overheating parking and overcurrent protection circuit to ensure the optimal performance.

4) The maximum output of the rated is: ± 3A, a peak of 3.5A.

5) Suitable for 42,57 steps within 3A, two -phase/four -phase/four -line/six -line step motor, which is not suitable for a step motor of more than 3A.

6) Automatic semi -current function.

7) Subtulation: whole step, half step, 1/8 step, 1/16 step, the largest 16 segment.

8) Volume: width 50*length 75*height 35 (mm)

Features in similar products:

1. The current level can be adjusted to meet your various application needs.

2. Automatic semi -current can be adjusted.

3. Use 6N137 high -speed light ravioli to ensure that high speeds are not lost.

4, board printing description, can be operated without instructions.

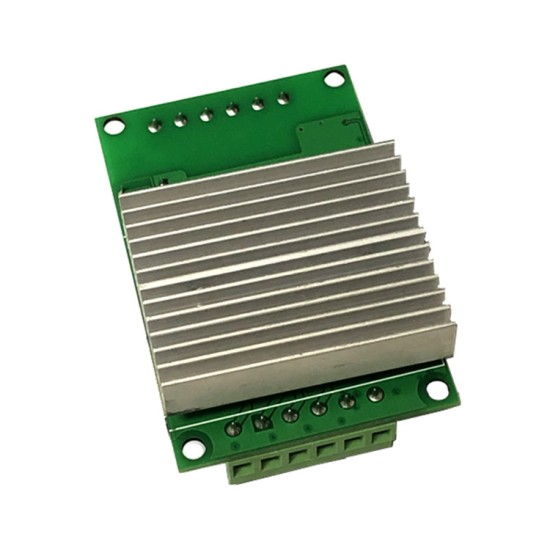

5. Use thick dense tooth radiator to heat the heat.
