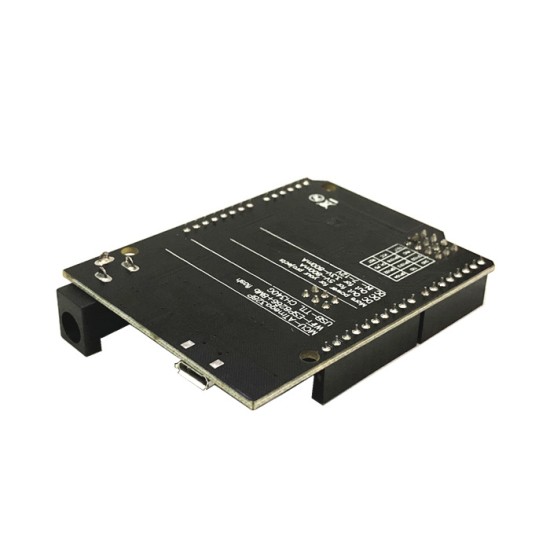

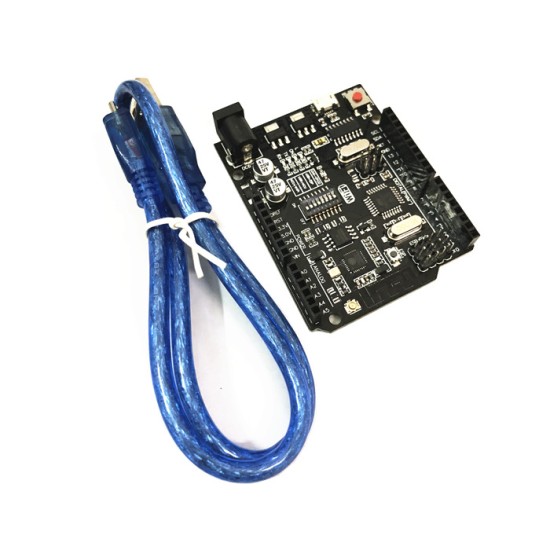

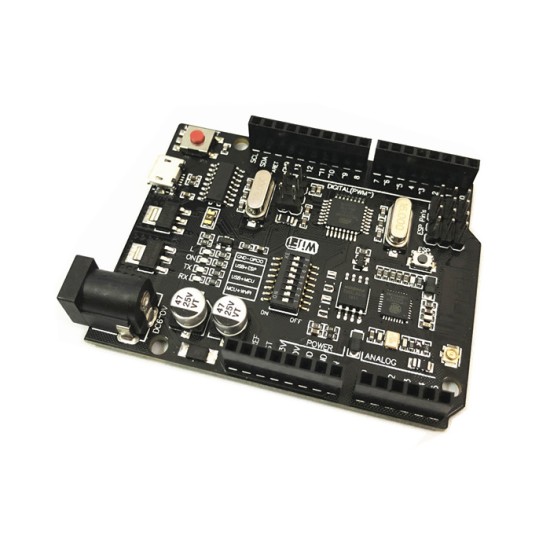

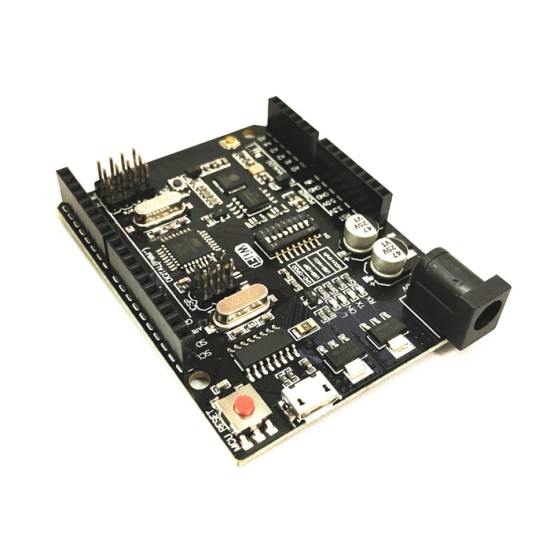

WIFI R3 at Mega328p+ESP8266 (32MB Memory), USB-TTL CH340G

From 2022, all ATMEL chips have adopted domestic chips. Please know

Data link http://robotdyn.com/~xlbqh- internationalizational

Product details, guidance and instructions, software, please visit the official webpage products.All in a board integration: the memory of the United Nations and WIFI and R3 Atmega 328 ESP8266 32MB.All modules can work alone or together.And everyone has their own pin.Convenient solutions, development of new projects, the United Nations and WiFi.You can update and Firmvare for Atmega328 sketch and ESP8266.This car has a USB serial converter CH340G.It is very simple to use this board.Ancelotti's DIP switch panel, connected module.For example, a USB interface: USB and ATMEGA328, and ESP8266, Atmega328 and ESP8266.

DIP switch table:

Connection

DIP

1

2

3

4

5

6

7

Atmega328ESP8266

On

On

OFF

OFF

OFF

OFF

OFF

USB Atmega328

OFF

OFF

On

On

OFF

OFF

OFF

USBESP8266 (Update Firmware or Sketch)

OFF

OFF

OFF

OFF

On

On

On

USBESP8266 (Communication)

OFF

OFF

OFF

OFF

On

On

OFF

All independent

OFF

OFF

OFF

OFF

OFF

OFF

OFF
